How to Install Zone Offroad 3/4-4 in. Adjustable Bump Stops (97-18 Wrangler TJ & JK) on your Jeep Wrangler

CONGRATULATIONS on purchasing a set of new Adjustable BumpStops™ from JKS Manufacturing. We are committed to providing you with the best products available and your satisfaction is our first priority.

PLEASE READ these Installation Instructions carefully, and save them for future reference, as they contain important installation and maintenance information.

Important

MAY BE INSTALLED IN SIX (6) POSSIBLE CONFIGURATIONS depending on individual spacer(s) used. Use appropriate hardware for your configuration. Refer to page 2 for details.

1. REMOVE COIL SPRINGS

Raise and support the vehicle chassis with jack stands.

FRONT INSTALLATION – Position behind front lower suspension arm brackets.

REAR INSTALLATION – Position in front of rear lower suspension arm brackets

Remove the coil springs per the factory service manual instructions for your vehicle. HINT: A coil spring compressor is useful for removal.

Depending on the application, it may be necessary to completely or partially remove any of the following components before spring can be free from upper mount. HINT: Refer to factory service manual for procedures not covered in these instructions.

Shock Absorber
Swaybar
Brake Line
ABS Wire
Lower Suspension Arm
Track Bar
Steering Drag Link
Spring Retainer Clip

2. PREPARE LOWER SPRING MOUNT

Locate the dimple in the center of the lower spring mount on the axle housing.

Using the dimple as a guide, drill a 27/64” hole through the center of the lower spring mount.

Tap the hole with a 1/2” NC x 13 TPI tap.

3. DETERMINE BUMPSTOP LENGTH

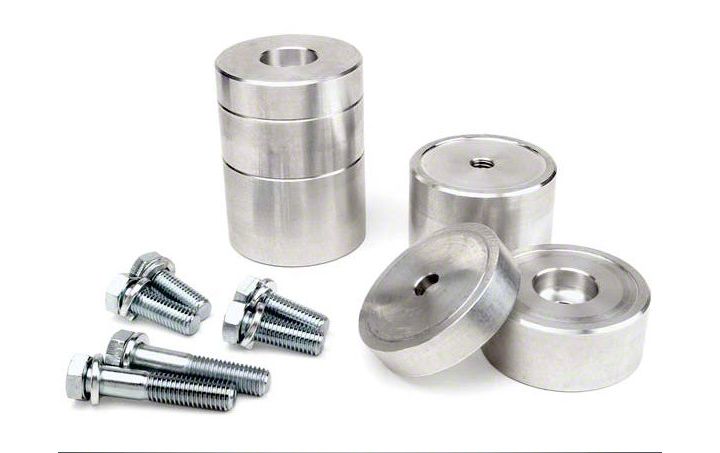

JKS Adjustable BumpStops can be installed in six (6) possible configurations (0.75”, 1.25”, 2.00”, 2.75”, 3.25”, or 4.00”), depending on the individual spacer(s) used.

Determine the ideal BumpStop length for your application by considering factors such as:

Clearance between vehicle tires and body panels during full suspension compression

Clearance between axle housing and chassis or drivetrain during full suspension compression

Length of existing bump stop extension, if installed

Choose the spacer(s) that provides maximum, unobstructed suspension compression for your application from the list below.

0.75” BumpStop Configuration
SPACER: 0.75” only
HARDWARE: 1/2” x 1-1/4” Bolt Split Washer

1.25” BumpStop Configuration
SPACER: 1.25” only
HARDWARE: 1/2” x 1-1/2” Bolt Split Washer

2.00” BumpStop Configuration
SPACER: 2.00” only
HARDWARE: 1/2” x 2” Stud only

2.75” BumpStop Configuration
SPACERS: 2.00” 0.75”
HARDWARE:
1/2” x 2” Stud 1/2” x 1-1/4” Bolt Split Washer

3.25” BumpStop Configuration
SPACERS: 2.00” 1.25”
HARDWARE:
1/2” x 2” Stud 1/2” x 1-1/2” Bolt Split Washer

4.00” BumpStop Configuration
SPACERS: 2.00” 1.25” 0.75”
HARDWARE:
1/2” x 2” Stud 1/2” x 2-1/2” Bolt Split Washer

4. INSTALL 2.00” BUMPSTOP SPACER ON LOWER SPRING MOUNT

FOLLOW THESE STEPS FOR 2.00”, 2.75”, 3.25” or 4.00” CONFIGURATION ONLY. For 0.75” or 1.25” configuration, bypass these steps and proceed directly to section 5: RE-INSTALL COIL SPRINGS.

Locate the BumpStop Spacers and hardware required for your application as indicated in section 3: DETERMINE BUMP STOP LENGTH.

Thread 1/2” x 2” Stud (D) halfway into hole in center of lower spring mount until one inch of threads remain visible.

IMPORTANT: Do NOT thread 1/2” x 2” Stud more than one inch into the 2.00” spacer.

Apply anti-seize lubricant to protruding half of 1/2” x 2” Stud (D).

Thread 2.00” BumpStop Spacer (A) onto 1/2” x 2” Stud (D). HINT: Recessed end must face up as illustrated above.

Tighten the 2.00” BumpStop Spacer (A) using an adjustable oil filter wrench or similar tool. HINT: A rubber strap-type oil filter wrench will prevent damage to the finish when tightening aluminum spacer. Other types of adjustable oil filter wrenches are also effective for gripping the spacer, although it may be necessary to protect the finish with tape or a rag first.

5. RE-INSTALL COIL SPRINGS

Re-install the coil springs per the factory service manual instructions for your vehicle. DO NOT lower vehicle to ground until all BumpStop Spacers have been installed and properly tightened. HINT: A coil spring compressor is useful for installation.

Also re-install any of the components that were removed during the REMOVE COIL SPRINGS section of this installation.

6. INSTALL REMAINING BUMPSTOP SPACERS, IF REQUIRED

FOR 0.75” or 1.25” CONFIGURATION:

Locate the BumpStop spacers and hardware required for your application – refer to DETERMINE BUMP STOP LENGTH section.

Slide BumpStop Spacer(s) through coil spring and position on center of lower spring mount.

Apply anti-seize lubricant to appropriate 1/2” Bolt (F or G). Place Split Washer (H) on bolt and insert through spacer(s). Thread bolt into hole in lower spring mount.

Using a torque wrench, tighten the 1/2” Bolt to 25 ft-lbs.

FOR 2.75”, 3.25”, or 4.00” CONFIGURATION:

Locate the remaining BumpStop Spacers and hardware required for your application – refer to DETERMINE BUMP STOP LENGTH section.

Slide additional BumpStop Spacer(s) through coil spring and position on 2.00” BumpStop Spacer (A). HINT: When stacking spacers, make sure they interlock before inserting hardware.

Apply anti-seize lubricant to appropriate 1/2” Bolt (E, F or G). Place Split Washer (H) on bolt and insert through spacer(s). Thread bolt into hole on top of 2.00” BumpStop Spacer (A).

Using a torque wrench, tighten the 1/2” Bolt to 25 ft-lbs.

7. POST-INSTALLATION INSTRUCTIONS

Before operating vehicle off-road, test for proper bump stop operation by fully cycling the suspension and checking for obstructions. Add, remove or replace BumpStop Spacers if necessary until maximum unobstructed suspension compression is achieved.

Operation

Future BumpStop length adjustments should be made with NO LOAD on the coil springs, and the suspension at FULL DROOP.

Depending on the springs used, it may be necessary to spread the coils apart when inserting or removing the 2.00” BumpStop Spacer (A).

Maintenance

Regular cleaning with pressurized water is recommended to maximize ease of operation and reliability.
