Find Springs for your Gladiator

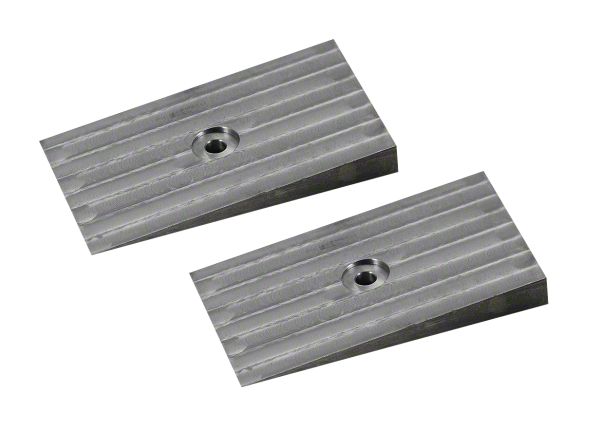

Universal Leaf Spring Shims; 2-1/4-Inch Wide; 4-Degree Angle (Universal; Some Adaptation May Be Required)

Item JG48230
Our Price

$124.99

Military, Medical & First Responders $6.25 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features

        _x000D_
      • 100% US Made
        • _x000D_
      • Universal - Not Vehicle Specific; Some Adaptation May Be Required
        • _x000D_
      • Consult A Suspension Or Alignment Specialist To Select The Correct Shim Angle For Your Application
        • _x000D_
      • Corrects Pinion And/Or Caster Angles In Leaf Spring Suspensions On Jeeps And Trucks
        • _x000D_
      • Designed To Be Permanently Attached To The Leaf Spring Pack Using The Leaf's Center-Pin
        • _x000D_
      • Cross Holes Are Counter-Bored Against The Angled Surface To Ensure Even Clamping Force By The Center-Pin
        • _x000D_
      • Heavy-Duty Steel Construction Provides Durability And Resistance To Breakage Under Load
        • _x000D_
      • Resists Spinning Out Of Place Or Falling Out
        • _x000D_
      • Accepts 5/16" Cross-Pin (Not Included); Easily Drilled To Fit Larger Pins
        • _x000D_
      • Available In 2°, 4°, 6°, & 8° Angles
        • _x000D_
      • Available In 2", 2-1/4", 2-1/2" And 3" Widths
        • _x000D_
      • Note: Some Applications May Require Longer Cross-Pins (Not Included)
        • _x000D_

      Description

      Heavy-Duty Leaf Spring Correction. The Universal Leaf Spring Shims, sized 2-1/4 inches wide with a 4-degree angle, are designed to correct pinion and caster angles in leaf spring suspension systems used on Jeeps and trucks. These shims are installed permanently using the leaf spring’s center pin and help maintain proper vehicle alignment and handling.

      _x000D__x000D_

      Construction and Appearance. Made from heavy-duty steel, the shims are engineered to withstand heavy loads without breaking. The cross holes are precision counter-bored to provide even clamping pressure by the center pin, ensuring stability. The steel finish is durable and suitable for demanding off-road and load-bearing applications.

      _x000D__x000D_

      Installation. Installation requires removing the leaf spring center pin to insert the shim permanently. The shim may need to be drilled for compatibility with larger pins. It is recommended to consult with a suspension or alignment specialist to select the correct shim angle for your specific application.

      _x000D__x000D_

      Application. These shims fit universal leaf spring setups; some adaptation may be needed depending on the vehicle. Longer cross-pins may be necessary for certain installations and are not included.
