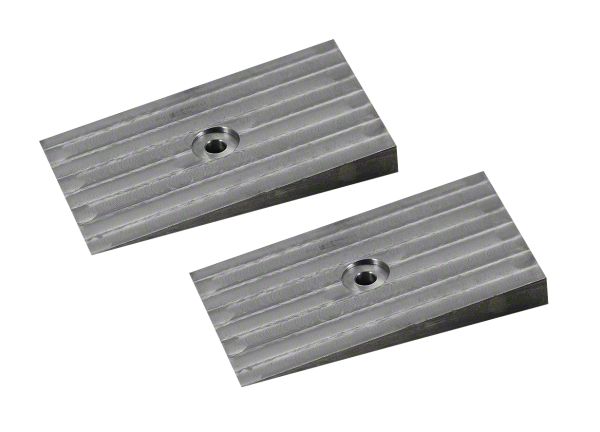

Universal Leaf Spring Shims; 2-1/2-Inch Wide; 4-Degree Angle (Universal; Some Adaptation May Be Required)

Item JG48226
Our Price

$114.99

Military, Medical & First Responders $5.75 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features

        _x000D_
      • 100% US Made
        • _x000D_
      • Universal - Not Vehicle Specific; Some Adaptation May Be Required
        • _x000D_
      • Consult A Suspension Or Alignment Specialist To Select The Correct Shim For Your Application
        • _x000D_
      • Correct The Pinion And/Or Caster Angles In Your Leaf Sprung Jeep Or Truck Using Our Heavy-Duty Leaf Spring Shims
        • _x000D_
      • Shims Designed To Be Permanently Attached To The Leaf Spring Pack Using The Leaf'S Center-Pin
        • _x000D_
      • Counter-Bored Cross Holes Ensure Center-Pin Gets Even Clamping Force Across Pin'S Top Surface
        • _x000D_
      • Steel Construction Prevents Breaking Under Heavy Load Conditions
        • _x000D_
      • Features Resist Spinning Out Of Place, Falling Out, Or Breaking
        • _x000D_
      • Accepts 5/16" Cross-Pin (Not Included)
        • _x000D_
      • Easily Drilled To Fit Larger Pins
        • _x000D_
      • Available In 2°, 4°, 6° & 8° Angles
        • _x000D_
      • Available In 2", 2-1/4", 2-1/2" And 3" Widths
        • _x000D_
      • Note: Some Applications May Require Longer Cross-Pins (Not Included)
        • _x000D_

      Description

      Heavy-Duty Leaf Spring Shim. The Universal Leaf Spring Shims; 2-1/2-Inch Wide; 4-Degree Angle are precision components designed to correct pinion and caster angles in leaf spring suspensions, particularly in Jeeps or trucks. These shims improve suspension alignment, enhancing vehicle stability and drivability. Their universal design provides flexibility but requires consultation with a suspension expert to ensure proper application.

      _x000D__x000D_

      Construction and Appearance. Crafted from heavy-duty machined steel, these shims feature robust construction to withstand demanding loads without failure. Counter-bored cross holes are precision machined to ensure consistent clamping force by the center pin, enhancing secure attachment. The steel finish emphasizes durability and resistance to deformation under stress.

      _x000D__x000D_

      Installation. Installation is straightforward for those experienced with suspension modifications. Drilling is only required if larger cross pins than the standard 5/16-inch size are used. These shims are designed to be permanently fixed to the leaf spring pack using the leaf's center pin for reliable, lasting alignment corrections.

      _x000D__x000D_

      Application. Fits universal; some adaptation may be required.
