Viair Jeep Gladiator Chrome 98C Air Compressor; 130 PSI / 1.53 CFM 00098 (Universal; Some Adaptation May Be Required)

Name: Viair Chrome 98C Air Compressor; 130 PSI / 1.53 CFM (Universal; Some Adaptation May Be Required)
Brand: Viair
SKU: JG37707
Price: 122.95 USD
Availability: InStock

Product Information

Features, Description, Q&A, Specs & Installation

Features

CFM: 1.53 @ 0 PSI
12-Volt
Permanent Magnetic Motor
Duty Cycle: 10% @ 100 PSI
Max. Working Pressure: 130 PSI
Max. Air Tank Size: 1.0 Gallon
Max. 12V Amp Draw: 13-Amps
Ingress Protection Rating: IP54
Max Ambient Temp: +158°F
Min Ambient Temp: -40°F
Dimensions: 5.6”L x 3.1”W x 4.7”H
Net Weight: 2.55 lbs.
In Rush Current (A) @ 0 PSI: 13.8
dB @ 0 PSI: 68.3

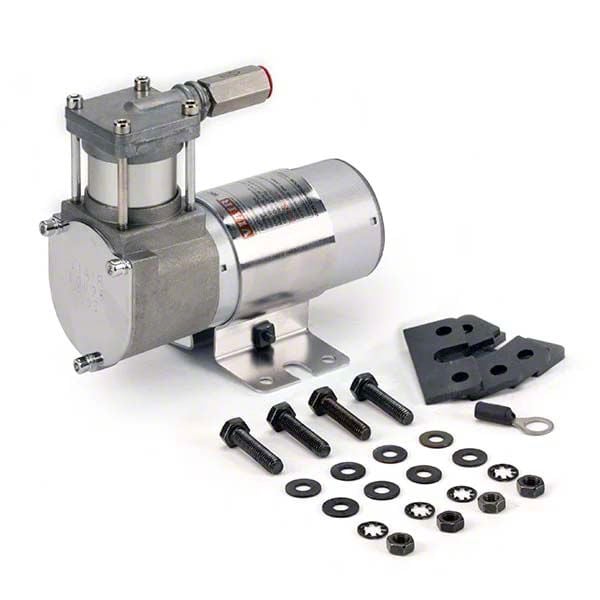

Omega Bracket
Check Valve
Vibration Isolators
Mounting Hardware
Installation Instructions
Use Thread Sealant For Proper Installation. Thread Tape Is Not Recommended.
Recommended Torque For 1/8” Is 10 ~ 11 ft. lbs.
Recommended Torque For 1/4” And 3/8” Is 16 ~ 18 ft. lbs.
Fits Universal; Some Adaptation May Be Required

Description

HIGH PERFORMANCE AIR COMPRESSOR. The Viair Chrome 98C Air Compressor; 130 PSI / 1.53 CFM is designed for light duty pneumatic needs, delivering reliable air supply for small air tanks up to 1 gallon. Its compact size and efficient performance make it suitable for inflating tires, air tools, and other portable air systems. Performance and durability are key features for professionals and enthusiasts requiring dependable air pressure in various applications.

CONSTRUCTION AND APPEARANCE. Crafted with a permanent magnetic motor and a chrome finish, this compressor combines durability with aesthetic appeal. It includes an omega bracket, vibration isolators, and a check valve, all assembled with mounting hardware and installation instructions to ensure a robust and professional-grade unit. The design is compact, measuring 5.6 inches long, 3.1 inches wide, and 4.7 inches high, weighing only 2.55 pounds, enabling easy handling and installation.

INSTALLATION. Installation is straightforward with included mounting hardware and an omega bracket for secure attachment. Minor adaptation or adjustment may be necessary depending on use, but the included components support easy installation for most users.

APPLICATION. Fits Universal; Some Adaptation May Be Required to ensure proper setup in various pneumatic systems and smaller air tank configurations.

Viair 00098
