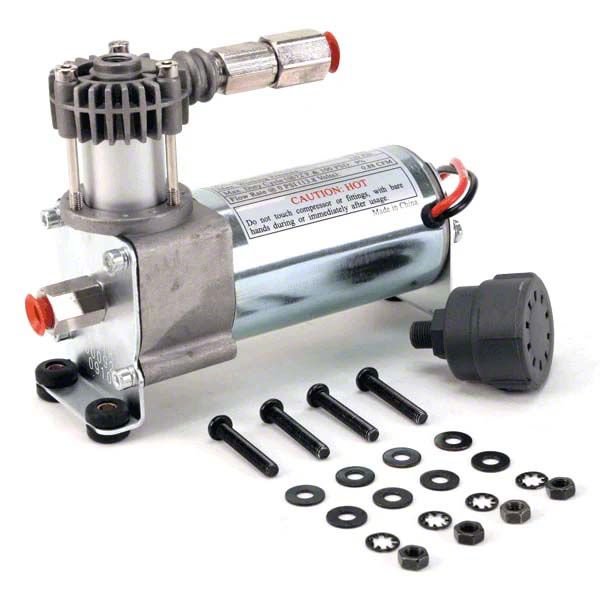

Viair 92C Air Compressor; 120 PSI / 1.03 CFM (Universal; Some Adaptation May Be Required)

Item JG37705
Product Image
9 Reviews of Viair
Our Price

$127.55

Military, Medical & First Responders $6.38 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

        _x000D_
      • Light Duty Air Compressor For Smaller Pneumatic Requirements
        • _x000D_
      • Designed To Fill Tanks No Larger Than 1 Gallon
        • _x000D_
      • Features A Removable Air Filter And Check Valve
        • _x000D_
      • Includes Mounting Hardware, Vibration Isolators, And Direct Mount Air Filter Assembly
        • _x000D_
      • 12-Volt Permanent Magnetic Motor
        • _x000D_
      • Duty Cycle: 9% @ 100 PSI
        • _x000D_
      • Max Working Pressure: 120 PSI
        • _x000D_
      • Max Air Tank Size: 1.0 Gallon
        • _x000D_
      • Max Amp Draw: 10 Amps
        • _x000D_
      • Ingress Protection Rating: IP54
        • _x000D_
      • Max Ambient Temperature: +158°F
        • _x000D_
      • Min Ambient Temperature: -40°F
        • _x000D_
      • Dimensions: 7.6” L x 2.0” W x 4.6” H
        • _x000D_
      • Net Weight: 2.45 lbs
        • _x000D_
      • In Rush Current @ 0 PSI: 27.6 A
        • _x000D_
      • Noise Level @ 0 PSI: 62.1 dB
        • _x000D_
      • Proper Installation Requires Thread Sealant; Thread Tape Not Recommended
        • _x000D_
      • Recommended Torque: 10-11 ft. lbs For 1/8” Threads, 16-18 ft. lbs For 1/4” And 3/8” Threads
        • _x000D_
      • Fits Universal Applications; Some Adaptation May Be Required
        • _x000D_

      Description

      Reliable Pneumatic Solution. The Viair 92C Air Compressor, rated at 120 PSI and 1.03 CFM, is designed for light duty pneumatic applications, ideal for filling air tanks up to 1 gallon. It provides efficient, compact, and dependable air delivery for smaller air systems.

      _x000D__x000D_

      Construction and Appearance. Built with a durable 12-volt permanent magnetic motor, this oil-less, direct-drive compressor features vibration isolators and a direct mount air filter assembly. Its practical design is finished to withstand automotive environments while offering robust performance.

      _x000D__x000D_

      Installation. Installation is straightforward with included mounting hardware, requiring no complex modifications or drilling in most applications. Using thread sealant instead of thread tape is recommended to ensure secure, leak-free connections. Torque specifications are 10-11 ft. lbs for 1/8” threads and 16-18 ft. lbs for 1/4” and 3/8” threads.

      _x000D__x000D_

      Application. This compressor is designed to fit universal applications, though some adaptation may be necessary depending on specific installation or system requirements.

      Viair 00092
