Find Onboard Air for your Gladiator

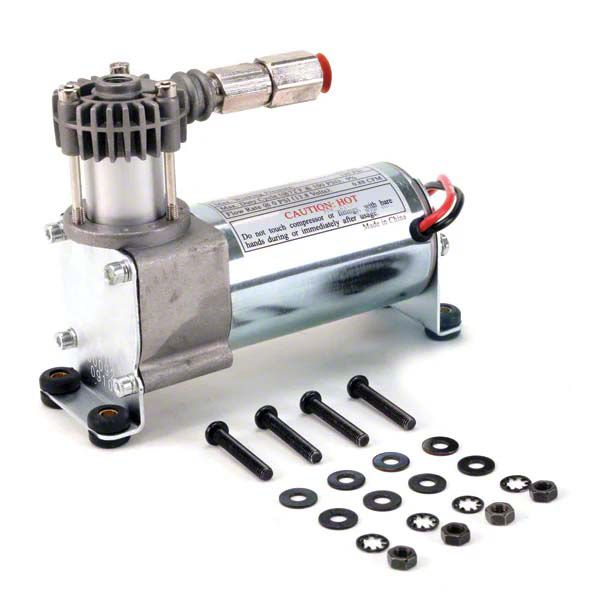

Viair 90C Air Compressor; 120 PSI / 1.03 CFM (Universal; Some Adaptation May Be Required)

Item JG37704
Product Image
9 Reviews of Viair
Our Price

$108.75

Military, Medical & First Responders $5.44 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

      • 1.03 CFM at 0 PSI
      • 12-Volt Permanent Magnetic Motor
      • 9% Duty Cycle at 100 PSI
      • Maximum Working Pressure 120 PSI
      • Maximum Air Tank Size 1.0 Gallon
      • Maximum Amp Draw 10 Amps
      • Ingress Protection Rating IP54
      • Maximum Ambient Temperature 158°F
      • Minimum Ambient Temperature -40°F
      • Dimensions 5.9 Inches Long x 2.1 Inches Wide x 4.5 Inches High
      • Net Weight 2.4 Pounds
      • Inrush Current 26 Amps at 0 PSI
      • Sound Level 62.4 dB at 0 PSI
      • Includes Check Valve, Vibration Isolators, Mounting Hardware, Installation Instructions
      • Recommended Thread Sealant Use; Thread Tape Not Recommended; Torque 10-11 Ft. Lbs. for 1/8” Threads
      • Torque 16-18 Ft. Lbs. for 1/4” and 3/8” Threads
      • Fits Universal; Some Adaptation May Be Required

      Description

      Compact Performance Air Compressor. The Viair 90C Air Compressor, rated at 120 PSI / 1.03 CFM, is designed to provide a reliable, light-duty solution for smaller air requirements. It efficiently fills air tanks up to 1 gallon, making it ideal for inflating tires or powering small pneumatic tools where space and weight are important considerations.

      Construction and Appearance. This compressor features a 12-volt permanent magnetic motor housed in a durable enclosure that meets IP54 ingress protection standards. The unit weighs 2.4 pounds and has a compact form factor measuring 5.9 inches long by 2.1 inches wide by 4.5 inches high, optimized for mounting versatility and vibration resistance.

      Installation. Installation is straightforward with the supplied hardware and clear instructions; thread sealant is required for proper fitting. No complex drilling or modifications are typically needed, but proper torque specifications must be followed to ensure a secure seal and longevity.

      Application. This compressor fits universally, with some adaptation potentially required depending on the specific mounting location or air system configuration.
