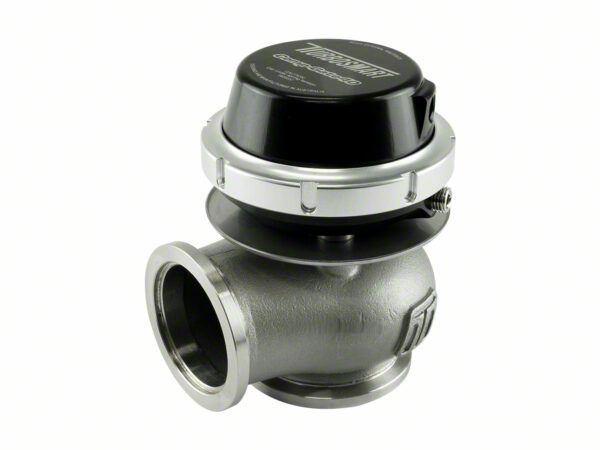

Turbosmart Gen4 CompGate40 External Wastegate; 7 PSI; Black (Universal; Some Adaptation May Be Required)
Item JG24171
Our Price
$359.99
Military, Medical & First Responders
$18.00 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- _x000D_
- 4th Generation External Wastegate Designed For 40mm Valve Size _x000D_
- Pre-Fitted With A 7 Psi Spring _x000D_
- V-Band Inlet And Outlet For 40mm Peer Flange Fitment _x000D_
- Unique Locking Collar Design Ensures Anti-Vibration Security _x000D_
- Constructed From Stainless Steel Cast Body And Aluminium Actuator Housing _x000D_
- Compatible With Springs Ranging From 3 To 26 Psi _x000D_
- Solid Piece Stainless Steel Valve For Durability _x000D_
- Proprietary High-Temperature Silicon Nomex Diaphragm For Heat Resistance _x000D_
- Twin 1/16" NPT Reference Ports For Boost Control Integration _x000D_
- Supplied With V-Band Clamps, Inlet And Outlet Weld Flanges, Locking Collar Tool, And 1/16" NPT Plugs And Nipples _x000D_
- Hand Assembled And Individually Tested Before Shipping _x000D_
- Suitable For Pump Fuel And E85 Applications _x000D_
- Fitment Is Universal; Some Adaptation May Be Required _x000D_
Description
PREMIUM EXTERNAL WASTEGATE. The Turbosmart Gen4 CompGate40 External Wastegate; 7 PSI; Black is designed to effectively regulate turbocharger boost pressure, helping prevent engine damage and maintain consistent performance. Ideal for street use, it offers excellent flow and heat management characteristics, making it well suited for both pump fuel and E85 applications. This wastegate ensures reliable boost control for improved drivability and engine safety.
_x000D__x000D_CONSTRUCTION AND APPEARANCE. Crafted from a stainless steel cast body paired with an aluminum actuator housing, this wastegate is built for durability and heat resistance. It features a solid piece stainless steel valve and a proprietary high-temp silicon Nomex diaphragm to ensure long-lasting, reliable operation. The sleek black coating enhances both corrosion resistance and visual appeal.
_x000D__x000D_INSTALLATION. Installation is straightforward with no drilling required, as it fits standard 40mm peer flange interfaces. The unique locking collar design secures the wastegate with anti-vibration protection, simplifying spring changes and adjustments.
_x000D__x000D_APPLICATION. The wastegate has universal fitment with some adaptation potentially required, making it compatible with a wide range of turbocharging setups that utilize a 40mm valve size.
Turbosmart TS-0505-1006
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- Turbosmart Gen V Wastegate
- Valve Seat
- Inlet V-Band clamp
- Inlet Weld flange
- Outlet V-Band clamp
- Outlet weld flange
- Collar tool
- Spring kit
- Fitting kit
- Turbosmart Sticker
