Suparee Hyper 5 Series 8-Pod 52-Inch LED Light Bar Kit with Wiring and Pillar Mounts; White with Amber DRL (20-26 Jeep Gladiator JT, Excluding Mojave)Find parts that fit my vehicle

Item JG67429
Product Image
New
Our Price

$866.15

Military, Medical & First Responders $43.31 Available in XT Cash Rewards.
Confirm Eligibility

Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features & Specs

      - 8-Pod Standard 52-Inch LED Light Bar Kit
      _x000D_ - Designed for Jeep Wrangler JL and Gladiator JT; Excludes 4xe Models
      _x000D_ - Full-Width Roofline Lighting for Trail, Overland, and Night Driving Use
      _x000D_ - Modular 8-Pod Design Spreads Output Across the Full 52-Inch Bar
      _x000D_ - Pod-Based Layout Allows More Flexible Service and Cover Configuration Than a One-Piece Light Bar
      _x000D_ - Includes Eight Hyper 5 LED Pods
      _x000D_ - 537.6W Total Light Bar Power Draw; 67.2W Per Pod
      _x000D_ - 36,464-Lumen Total Output; 4,558 Lumens Per Pod
      _x000D_ - 12V / 24V Compatible
      _x000D_ - White / Amber Switchable Daytime Running Light
      _x000D_ - 5500K White Main Beam; 3700K with Amber Cover
      _x000D_ - 1 Lux @ 360m / 1,181 ft Per Pod
      _x000D_ - 530 lux @ 10m Per Pod
      _x000D_ - 150-Degree Usable Beam Angle
      _x000D_ - Hard-Coated Polycarbonate Lens
      _x000D_ - Matte Black ADC12 Powder-Coated Cast Aluminum Housing
      _x000D_ - IP68 / IP69K Weather Protection
      _x000D_ - 1-to-8 Wiring Harness Included
      _x000D_ - JL/JT Pillar Mounts and 52-Inch Bar Connector/Support Hardware Included
      _x000D_ - Black and Amber Covers Included
      _x000D_ - 5-Year Limited Warranty

      Description

      • 8-Pod Standard 52-Inch LED Light Bar Kit
      • Designed for Jeep Wrangler JL and Gladiator JT; Excludes 4xe Models
      • Full-Width Roofline Lighting for Trail, Overland, and Night Driving Use
      • Modular 8-Pod Design Spreads Output Across the Full 52-Inch Bar
      • Pod-Based Layout Allows More Flexible Service and Cover Configuration Than a One-Piece Light Bar
      • Includes Eight Hyper 5 LED Pods
      • 537.6W Total Light Bar Power Draw; 67.2W Per Pod
      • 36,464-Lumen Total Output; 4,558 Lumens Per Pod
      • 12V / 24V Compatible
      • White / Amber Switchable Daytime Running Light
      • 5500K White Main Beam; 3700K with Amber Cover
      • 1 Lux @ 360m / 1,181 ft Per Pod
      • 530 lux @ 10m Per Pod
      • 150-Degree Usable Beam Angle
      • Hard-Coated Polycarbonate Lens
      • Matte Black ADC12 Powder-Coated Cast Aluminum Housing
      • IP68 / IP69K Weather Protection
      • 1-to-8 Wiring Harness Included
      • JL/JT Pillar Mounts and 52-Inch Bar Connector/Support Hardware Included
      • Black and Amber Covers Included
      • 5-Year Limited Warranty

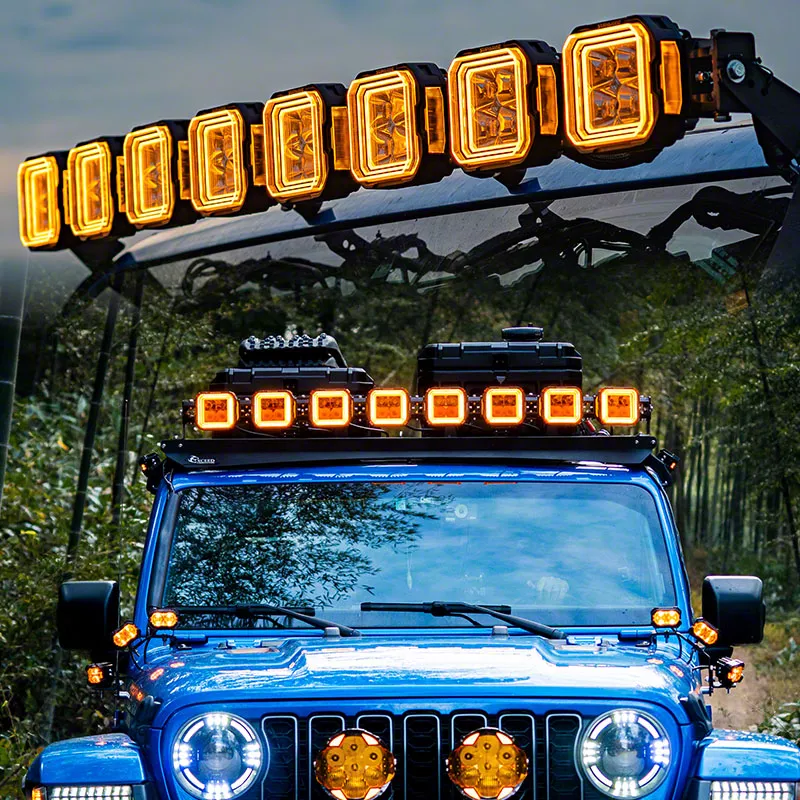

      Full-Width JL/JT Lighting Upgrade. The SUPAREE Hyper 5 8-Pod Standard 52-Inch LED Light Bar Kit is built for Jeep Wrangler JL and Jeep Gladiator JT owners who want serious roofline lighting with a clean, modular pod-based look. This kit includes eight Hyper 5 LED pods, a standard 52-inch light bar connector and support system, a 1-to-8 wiring harness, and JL/JT pillar mounts for a complete installation package.

      52-Inch Trail Coverage. By spreading eight Hyper 5 pods across a full-width 52-inch bar, this kit creates a wide lighting footprint across the Bronco's roofline. The setup is well suited for open trail visibility, overland routes, backroad driving, campsite approach lighting, and low-speed off-road spotting where smaller auxiliary light setups can leave dark zones at the edges.

      Modular Pod-Based Design. Instead of relying on a single sealed light bar housing, this setup uses eight individual Hyper 5 pods mounted into a standard bar connector/support system. That gives the light bar a more technical, custom-built appearance and makes the configuration more flexible for covers, service, and individual pod replacement.

      8-Pod Output. Each Hyper 5 pod is rated at 67.2 watts and 4,558 lumens. Across the full 8-pod light bar, that equals 537.6 watts of total power draw and 36,464 lumens of total output while remaining compatible with 12V and 24V electrical systems.

      White and Amber DRL Control. The Hyper 5 features a stepped daytime running light design that can switch between white and amber. This gives the light bar a high-end visual signature and lets the driver choose a cleaner white look or a warmer amber appearance depending on the build style and driving conditions.

      Long-Reach and Wide-Angle Visibility. Each Hyper 5 pod produces 530 lux at 10 meters, reaches 1 lux at 360 meters / 1,181 feet, and delivers a 150-degree usable lighting angle. The optical layout uses six side-facing Luminus LEDs, three on each side, to broaden peripheral visibility, along with four forward-facing Luminus LEDs for brighter long-range lighting.

      Amber Cover Versatility. The kit includes both black covers and amber covers. The amber covers shift the color temperature to approximately 3700K, while the white main beam is rated at 5500K. This gives the light bar more flexibility for dust, rain, snow, trail driving, and style-focused Bronco builds.

      Clean JL/JT Installation Package. The included JL/JT pillar mounts, 52-inch connector and support hardware, and 1-to-8 wiring harness help turn eight individual pods into one organized light bar system. The kit is designed to reduce parts hunting and gives the installer the core mounting and wiring components needed for a roofline setup.

      Built for Harsh Conditions. Each pod uses a hard-coated polycarbonate lens, matte black ADC12 powder-coated cast aluminum housing and bezel, stainless steel mounting hardware, silicone wire, and DT4 mating connectors. The lights are IP68/IP69K rated for dust, water, high-pressure washdowns, and submersion in 36 inches of water for more than 30 minutes.

      Efficient Heat Management. Self-regulating electronics work with the aluminum heat sink to provide 94,800 mm2 of heat dissipation area per pod, supporting efficient heat transfer, higher durability, and a 50,000-hour rated lifespan.

      Installation. Installing this SUPAREE Hyper 5 8-Pod 52-Inch LED Light Bar Kit requires assembling the eight Hyper 5 pods to the 52-inch light bar connector/support system, mounting the bar with the included JL/JT pillar brackets, and routing the 1-to-8 wiring harness. Professional installation is recommended for customers who are not comfortable with roof-mounted lighting or vehicle wiring

      Application. This SUPAREE Hyper 5 8-Pod Standard 52-Inch LED Light Bar Kit fits Jeep Wrangler JL and Jeep Gladiator JT models, excluding 4xe models.

      Suparee SP-CL-COM272

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 3 Hours

      Difficulty Level:

      Light to Moderate mechanical skill required.

      Installation Guides

        No guide available for this part yet.

      What's in the Box

      - (8) Hyper 5 LED Pods
      _x000D_ - (1) Standard 52-Inch Light Bar Connector and Support Hardware Set
      _x000D_ - (1) 1-to-8 Wiring Harness
      _x000D_ - (1) JL/JT Pillar Mount Set
      _x000D_ - (8) Black Light Covers
      _x000D_ - (8) Amber Light Covers

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My Gladiator

      • 3.0L V6 EcoDiesel - 21, 22, 23
      • 3.6L V6 - 20, 21, 22, 23, 24, 25, 26

            }
