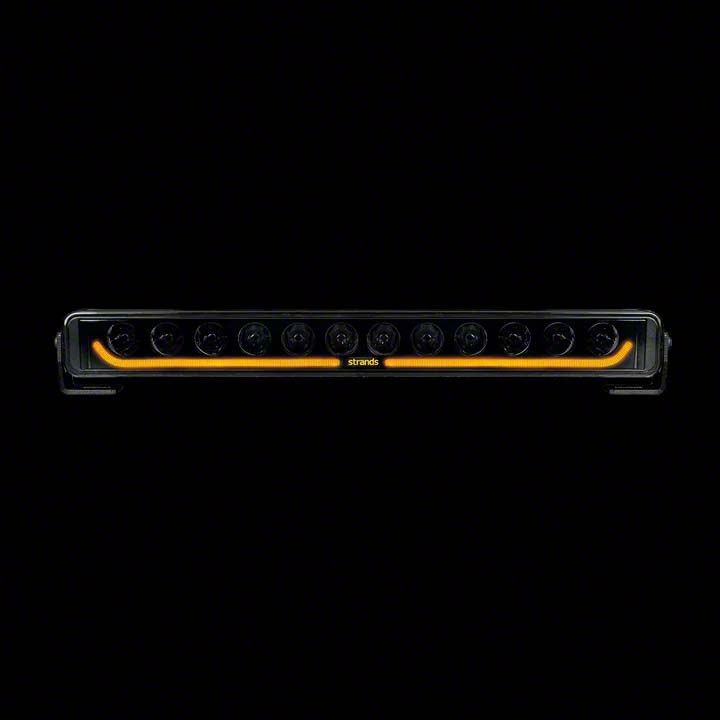

Strands Lighting 20-Inch Dark Knight Identity LED Light Bar (Universal; Some Adaptation May Be Required)
Item JG38216
Our Price
$559.00 each
Military, Medical & First Responders
$27.95 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- Voltage 9-36V DC
- Consumption 12V Main Beam: 115W
- Consumption 12V Position Light: 2W
- Colour Temp. 6000K
- Theoretical Lumen 13000
- Actual Lumen 11000
- 1 Lux @ 507 M
- IP Class IP68/IP69K
- Beam Pattern Combo
- Position Light Yes, White & Amber
- Connection DT4
- Cable Length 500 mm
- Material Housing Aluminium
- Material Lens Polycarbonate
- Length 520 mm
- Depth 55.5 mm
- Height 58 mm
- Height Including Bracket 75 mm
- Operating Temperature -40°C to +60°C
- E-Approved ECE R112, R7
- EMC-Certificate ECE R10
- Fits Universal; Some Adaptation May Be Required
| Brand | Strands Lighting |
| Light Bar Width | 20 to 29 Inch |
Description
High Performance Illumination. The Strands Lighting 20-Inch Dark Knight Identity LED Light Bar delivers powerful and efficient lighting ideal for a variety of driving conditions. With a reach of over 500 meters, it significantly enhances visibility and safety on different road types while complying with street legality requirements in most Canadian provinces.
Construction and Appearance. Constructed with robust aluminium housing and a durable polycarbonate lens, this light bar is built to withstand harsh environments and is rated IP68/IP69K for exceptional water and dust resistance. Its sleek black finish offers a modern and confident aesthetic that complements your vehicle's front end.
Installation. Installation is straightforward without the need for complex modifications or drilling when mounted correctly. The unit includes a 500 mm cable with a DT4 connector for convenient wiring integration.
Application. This light bar fits universal applications; however, some adaptation may be required depending on the specific vehicle configuration. It is street legal in most Canadian provinces except Alberta, Saskatchewan, and Manitoba when properly installed.
Strands Lighting 809169
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Light Bar
- (2) Brackets
