sPOD 8-Circuit SourceSE Switch Panel with Touchscreen (97-06 Jeep Wrangler TJ)

TJ Swicth Panel 8 Circuit Source SE W/Touchscreen 97-06 Wrangler TJ. sPOD systems utilizes automotive grade approved high-power, high-temp, ultra-reliable components with a maximum 100 amp capacity! The sPOD SourceSE is a Solid-State fully programmable digital CAN-Bus controlled system utilizing state-of-the-art technologies. OEM vehicle specific simple installation hardware, engineered and 100% manufactured in the United States since 2006.
The industry leader in power and control solutions.
sPOD systems utilizes automotive grade approved high-power, high-temp, ultra-reliable components with a maximum 100 amp capacity! The sPOD SourceSE is a Solid-State fully programmable digital CAN-Bus controlled system utilizing state-of-the-art technologies. OEM vehicle specific simple installation hardware, engineered and 100 percent manufactured in the United States since 2006.

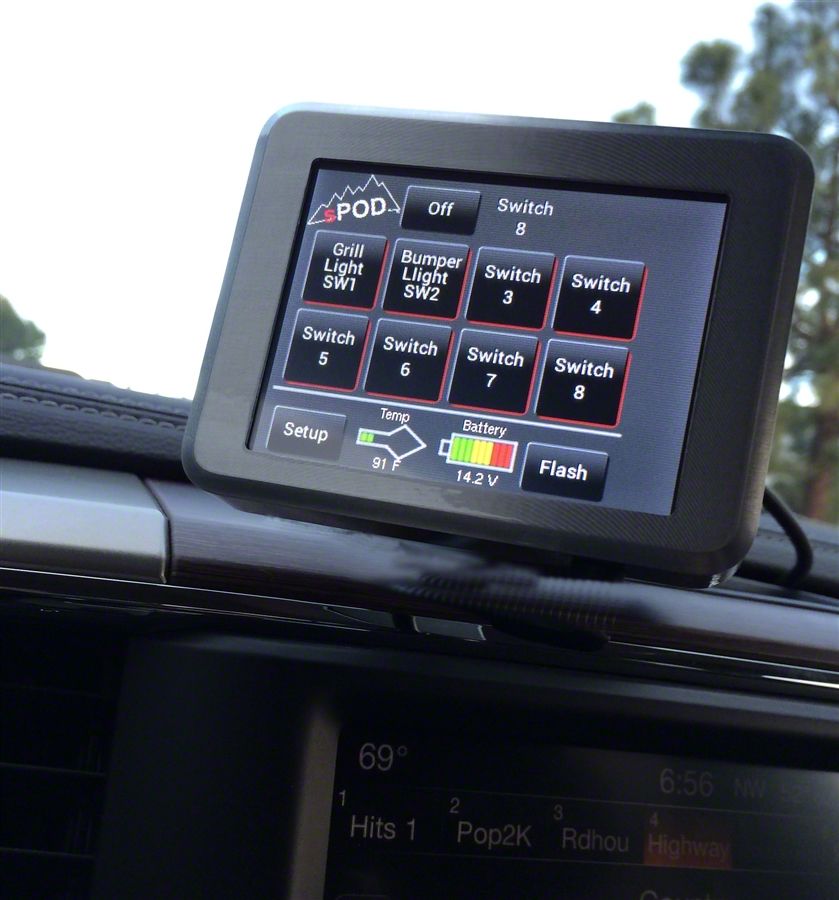

The touchscreen controller is small but packs a BIG punch! (3-3/4w X 2-7/8h X 5/8 thk) The control module is a 3.5-inch LED backlit TFT LCD screen with a resolution of 320 x 240, 16.7m colors and a viewing angle of 180 degrees housed in a billet aluminum case with a 1 RAM mount installed on back panel. The connection between the SourceSE and the touchscreen uses a standard Ethernet cable 10 feet long.
Note: If you have a 4 cylinder motor, please email us and let us know!
Benifits:

• Reduced installation time and labor allowing for mounting and connection of eight switches at one time versus individually.
• Reduced wire harness complexity, using one harness to our controller to accommodate up to 32 circuits.
• Reduced harness size offers an overall reduction in weight, improving operational efficiency of the equipment.
• Increase in switch lifecycle over traditional electromechanical switches.

Each switch is programmable for:

• Dimming
• Strobe
• Flash
• Momentary
• Switch Linking
• On Road and Off Road mode of operation

Touchscreen Control Module Features:

• Voltage feedback (vehicles battery/alternator voltage)
• SourceSE board temperature feedback (shown on screen)
• Customization: legends (3 lines of text)
• Automatic backlighting off after 30 minutes of being inactivity
• Automatic power off after 6 hours of being inactive or engine not running (Deep sleep mode)
• One touch off function
• One second hold on off button shuts all circuits down
• Automatic system shut down when touchscreen is unplugged
• Backlight dimming
• Multiple Source select (One touchscreen can control up to 32 circuits)

Options / parts required:
RAM-201U Double Socket Arm for 1 inch RAM Ball (Must have this in order to mount touchscreen)
RAM-238U Base with 1 inch RAM Ball (For fixed surface mounting and interconnect between double socket arm)
8-700-PSA A-Pillar Mount with 1 inch rubber coated Ram Ball. (For fixed surface mounting and interconnect between double socket arm)
RAM-224-1U Suction Cup Base with 1 inch RAM Ball (For fixed surface mounting and interconnect between double socket arm)
8-700-BT Add-on Bluetooth module to enable the system to be controlled by an iPhone, iPad or iPad Mini (Optional)
Note: Please indicate if you are running LUX Lighting Systems LED lights. We will include a resistor that is required in order for the lights to function properly.

Fitment:

• 1997 Jeep Wrangler
• 1998 Jeep Wrangler
• 1999 Jeep Wrangler
• 2000 Jeep Wrangler
• 2001 Jeep Wrangler
• 2002 Jeep Wrangler
• 2003 Jeep Wrangler
• 2004 Jeep Wrangler
• 2005 Jeep Wrangler
• 2006 Jeep Wrangler
