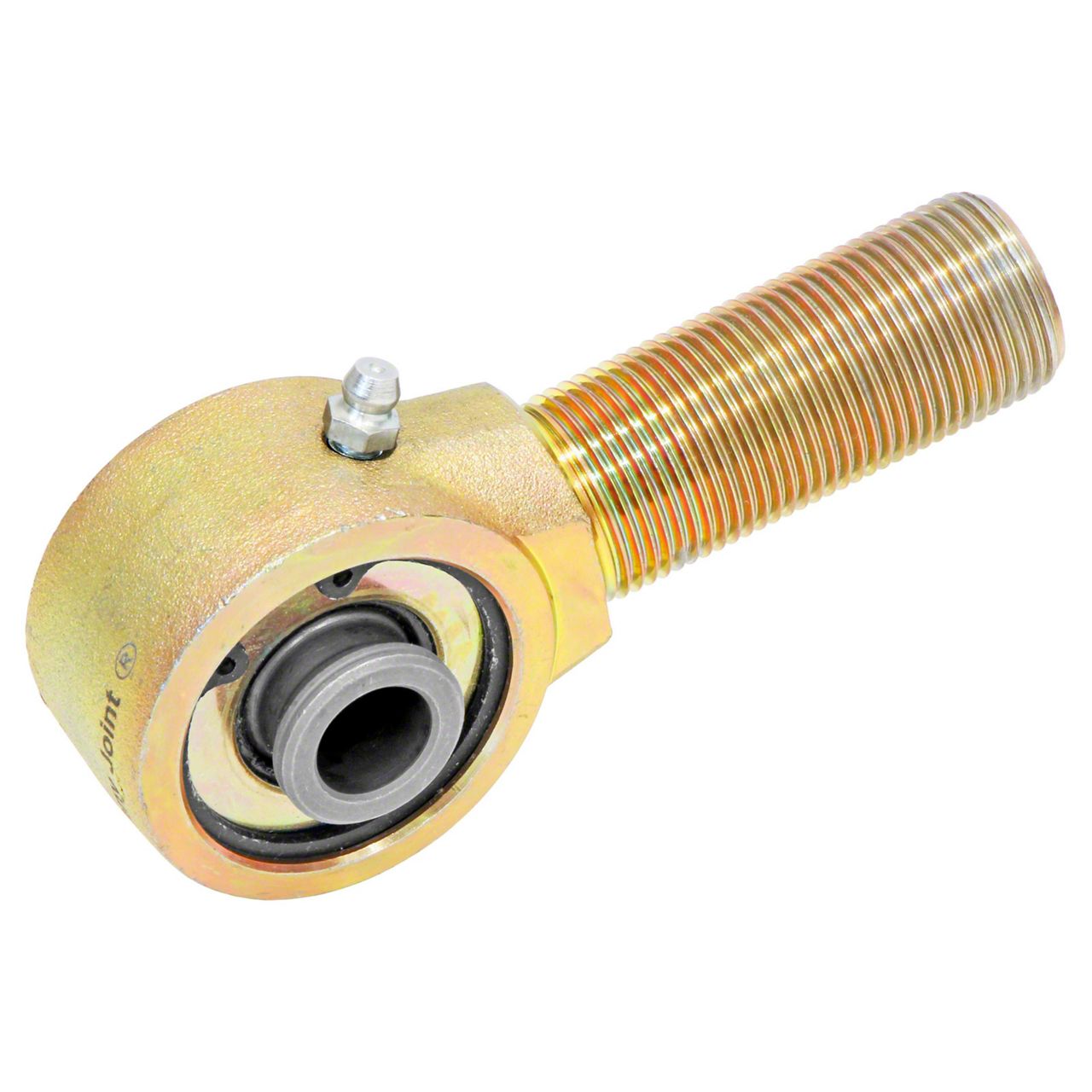

RockJock Narrow 2-Inch Johnny Joint; Right Hand Thread (Universal; Some Adaptation May Be Required)
Item JG15462
Our Price
$77.00 each
Military, Medical & First Responders
$3.85 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features
- _x000D_
- RockJock's Johnny Joint Rod Ends Have Been A Staple In The Off Road Industry Since 1996 _x000D_
- Available Universally For Builders Or Found In RockJock Suspension Components _x000D_
- Proven Formula Provides A Reliable, Greasable, Rebuildable Joint _x000D_
- Capable Of Dramatic Articulation In Off-Road Applications _x000D_
- Provides Smooth, Cushioned, Quiet Performance During On-Road Use _x000D_
- Available As Forged Rod End With Various RH And LH Thread Sizes From 3/4 In. Up To 1 1/2 In. Thread _x000D_
- Weld-On Versions Available For Fabricators _x000D_
- Specialty Joints Include Polished Stainless Steel, Long Body, Bent Forgings And Application Specific Machined Joints _x000D_
- All Sizes Offer Standard Or Narrow Width Joint Body _x000D_
- Standard Body Allows 30 Plus Degrees Of Articulation _x000D_
- Narrow Body Allows Up To 40 Plus Degrees Of Articulation _x000D_
- Narrow Body's 1 Piece Bushing Provides A Slightly Firmer Ride _x000D_
- This 2 In. Johnny Joint Incorporates 1 In.-14 RH Thread, Narrow Width, Forged Body _x000D_
- 1.600 In. Overall Width X .562 In. Thru-Bolt Hole Pivot Ball _x000D_
- Greasing Is Handled Externally Via Installed 1/4 In.-28 Zerk Fitting _x000D_
- 28 Degrees Of Articulation Capability _x000D_
- Forged Steel Construction _x000D_
- 2 In. O.D. X 1.20 In. Wide Joint Outer Barrel _x000D_
- 2.32 Inches Of 1 In.-14 RH Threads _x000D_
- 3.750 Inches From Centerline Of Joint To End Of Threads _x000D_
- 1-Piece Bushing Internals _x000D_
- Fully Assembled, Ready For Use Right Out Of The Box _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
Description
Precision Rod End. The RockJock Narrow 2-Inch Johnny Joint; Right Hand Thread is designed to provide reliable articulation for suspension applications requiring smooth and quiet operation both on and off-road. This rod end allows builders and fabricators to customize steering and suspension linkages with a durable joint that withstands rigorous off-road conditions while maintaining on-road comfort.
_x000D__x000D_Construction and Appearance. Crafted from forged steel, this Johnny Joint features a narrow-width body and a pivot ball measuring 1.600 inches wide by .562 inches through-hole, engineered for strength and longevity. It includes a 1-piece bushing setup and an externally greasable 1/4 in.-28 zerk fitting to ensure easy maintenance. The joint has a clean, functional finish optimized for performance under harsh environmental conditions.
_x000D__x000D_Installation. Installation is straightforward and may require basic adaptation depending on the intended application. No special drilling is necessary for mounting, and the joint arrives fully assembled for immediate use.
_x000D__x000D_Application. Fits universal suspension and steering build applications; some adaptation may be required depending on specific vehicle or project needs.
RockJock CE9112N13
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Johnny Joint Right Hand Thread
