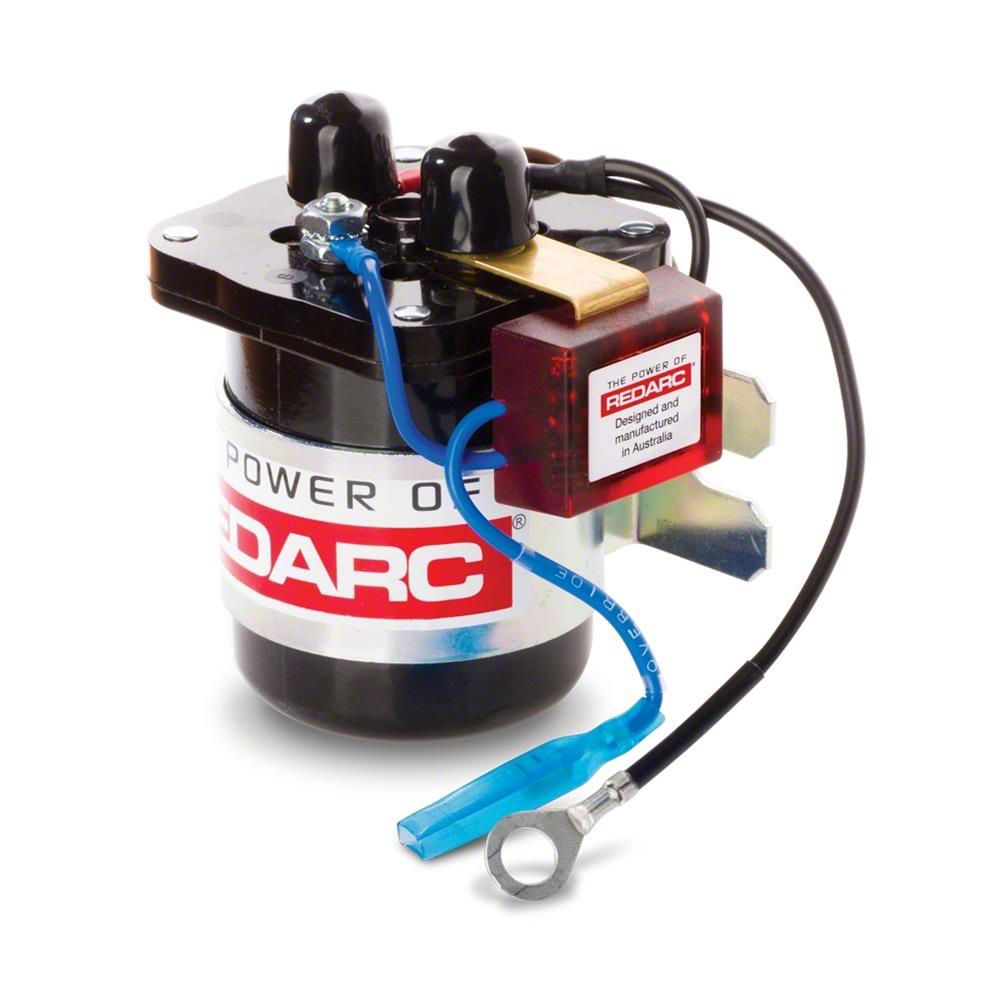

Redarc Smart Start 12V 200A Battery Isolator
Item JG17600
Our Price
$330.00 each
Military, Medical & First Responders
$16.50 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- 12V DC 200A Microprocessor-Controlled Dual Battery Isolator
- Protects Start Battery From Excessive Discharge
- Allows Auxiliary Battery To Supply Charge To Non-Essential Loads
- Incorporates Power Saving Technology To Prevent High Voltage Transients
- Features Low Standby Current Draw And Sophisticated Fault Detection
- Includes LED Indication For Faults Such As Over-Voltage, Voltage Drop And Excessive Current Draw
- Overmould Design For Durability
- Compact Size For Easy Installation
- Silver Contacts For Long Life Suitable For Marine Applications
- Fully Surge Protected
- Maximum Inrush Current 600A
- Maximum Continuous Current 200A
- Turn On Voltage 13.2V
- Turn Off Voltage 12.7V
- Turn On Delay 5 Seconds
- Turn Off Delay 10 Seconds
- Standby Current Less Than 5mA
- Weight 600 Grams
- Dimensions 90mm Height, 95mm Width, 100mm Depth
- System Voltage 12V
- Output Voltage 12V DC
- Input Fuse Rating 200A
- Output Fuse Rating 200A
- Warranty 2 Years
- Fits
Description
DUAL BATTERY PROTECTION. The Redarc Smart Start 12V 200A Battery Isolator safely manages and prioritizes power distribution between a start battery and an auxiliary battery in dual battery systems. It prevents excessive start battery discharge by isolating it from non-essential electrical loads, ensuring reliable engine starting and optimal accessory power supply. Its microprocessor control and power saving technology optimize battery management under heavy-duty conditions.
CONSTRUCTION AND APPEARANCE. The isolator features a robust overmould design with silver contacts that provide longevity and marine-grade durability. Its compact form factor measures 90mm in height, 95mm in width, and 100mm in depth, making it easy to install in tight spaces. The unit is fully surge protected and built to withstand demanding environments with a professional finish that supports long-term reliable operation.
INSTALLATION. Installation is straightforward, designed for easy integration into existing dual battery setups. It suits commercial and marine applications, allowing for minimal installation effort without complex modifications.
WARRANTY. This product comes with a two-year warranty, reflecting confidence in its quality and durability.
APPLICATION. Specifically engineered for use in 12V DC systems requiring up to 200A continuous current, suitable for commercial vehicles and marine applications where reliable dual battery management is critical.
Redarc SBI212
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Battery Isolator
