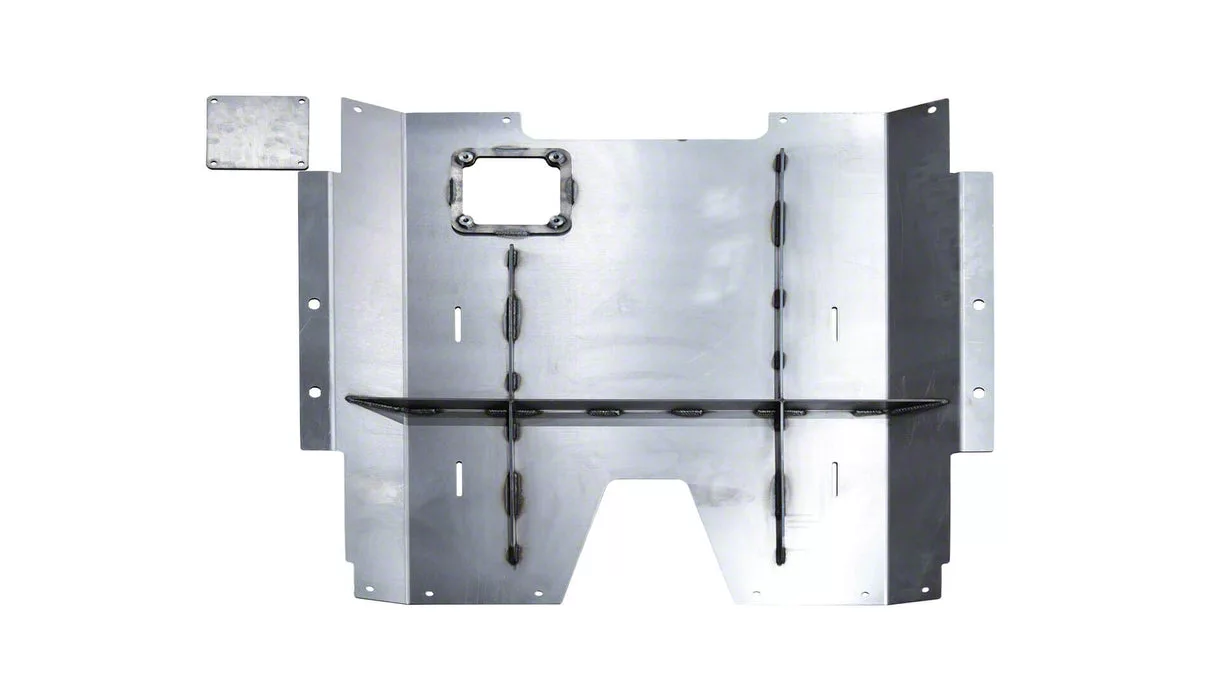

Motobilt Center Belly Skid Plate (20-26 Jeep Gladiator JT)Find parts that fit my vehicle

The Motobilt Jeep JK/JKU Aluminum Fuel Cell with Steel Skid is a premium solution for relocating the factory fuel tank on a Jeep JK (2 door) or Jeep JKU (4 door) from the passenger center of the vehicle to the rear when you are looking to add space for a true triangulated 4 link rear suspension.
Designed specifically to function seamlessly with our MB3025 Jeep JK/JKU Back Half Kit, this aluminum fuel cell system simply bolts in place & makes the process of building a fully custom Jeep JK/JKU easy & fast. Our complete fuel tank system was expertly designed using the latest in 3D CAD technology to ensure a perfect fit. (ONLY FITS THE MOTOBILT JK/JKU BACK HALF FRAME KIT. IT WILL NOT FIT A FACTORY FRAME.)
The 20.9 Gallon (79 liter) capacity tank is constructed from 1/8” aluminum that is precision CNC laser cut & accurately CNC press brake formed. The formed aluminum tank is professionally TIG welded & includes a CNC machined fuel pump mount which features an o-ring groove engineered for the factory Jeep JK/JKU fuel pump seal (Mopar #55366298AA – sold separately) for fuel tight & leak free connection. We’ve also included CNC machined aluminum bungs for the fuel filler & fuel filler vent. The tank accepts your factory Jeep JK/JKU fuel pump assembly (Mopar #68065575AC – sold separately).
The front side of tank & skid plate features a recess which is engineered to clearance your differential cover for larger axles under full suspension compression. The rear of the skid plate is angled to increase your departure angle. The aluminum tank is separated from contacting the steel skid by 1/8” thick neoprene rubber which dampens vibrations, prevents galvanic corrosion between dissimilar metals & eliminates rubbing, scratches & rattling. We also include three (3) bolt-on rubber bumpers at the rear of the tank which simply bolt into preinstalled threaded bungs on our MB3025 JK/JKU Back Half Kit. These rubber bumpers act as a cushion & eliminate vibration & rattling.
The heavy duty 100% American made high strength steel skid plate protects your aluminum tank from rocks & trail abuse. The skid plate features weep holes on all four corners to allow mud & debris to be flushed.
We have included the Motobilt In Tank Fuel Pump Extension Kit for Jeep JK/JKU with this fuel cell (see product components). There is no need to purchase it separately.
NOTES:
The new tank is deeper than factory, so the gauge will read that it is full much longer than normal, but when it truly is empty the gauge will be accurate.
Weight = 80lbs
FOR OFF-ROAD USE ONLY.
