Installation Time
(approx) 6 Hours
Difficulty Level:
Mechanical expertise or professional installation required.
FREE 1 to 3-Day Delivery on Orders $149+ Details
Motive Gear Dana 44 Front and Dana 44 Rear Axle Complete Ring and Pinion Gear Kit; 5.13 Gear Ratio
(20-27 Jeep Gladiator JT Launch Edition, Rubicon
Find parts that fit my vehicle Item JG10616
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- _x000D_
- Dana 44 JL Front and Rear Ring and Pinions Including Koyo Bearing Kits _x000D_
- 5.13 Gear Ratio _x000D_
- Fits Dana Advantek M210, Dana Advantek M220, Dana 44 JL, Dana 44 JL Reverse Differential Models _x000D_
- Cover Bolt Quantity: 12 _x000D_
- Differential Carrier Break at 3.07 Ratio and Higher _x000D_
- Gear Ratio: 5.13 _x000D_
- Pinion Gear Tooth Quantity: 8 _x000D_
- Pinion Shaft Diameter: 1.75 Inch _x000D_
- Pinion Spline Count: 28 _x000D_
- Position: Front and Rear _x000D_
- Ring Gear Bolt Quantity: 10 _x000D_
- Ring Gear Material: 8620 Steel _x000D_
- Ring Gear Outside Diameter: 8.27 Inch Front, 8.6 Inch Rear _x000D_
- Ring Gear Rotation: Reverse Front, Standard Rear _x000D_
- Ring Gear Tooth Quantity: 41 _x000D_
- Taxonomy A: LD Differential _x000D_
- Taxonomy B: Ring and Pinion Gear Packages _x000D_
- Taxonomy C: Front and Rear _x000D_
- Taxonomy D: 5.13 _x000D_
- Fits 2020-2027 Jeep Gladiator JT Launch Edition and Rubicon Models _x000D_
Description
Complete Gear Kit. The Motive Gear Dana 44 Front and Dana 44 Rear Axle Complete Ring and Pinion Gear Kit with 5.13 Gear Ratio offers a comprehensive re-gear solution for off-road vehicles, enhancing performance and accommodating larger tire sizes. This kit includes all necessary components for both front and rear axles, ensuring compatibility and durability.
_x000D__x000D_Construction and Appearance. Manufactured from high-quality 8620 steel, the ring gears provide excellent strength and wear resistance. These gears feature precise tooth counts and dimensions specifically designed for Dana 44 Dana Advantek model differentials.
_x000D__x000D_Installation. Installing this kit requires moderate mechanical knowledge. No drilling or axle housing modifications are needed. Use of professional tools and careful attention to gear pattern setup is recommended for optimal results.
_x000D__x000D_Warranty. This product is backed by a 1-year or 50,000-mile warranty, giving confidence in its reliability and performance.
_x000D__x000D_Application. Designed to fit 2020-2027 Jeep Gladiator JT Launch Edition and Rubicon models, this kit meets vehicle-specific gearing requirements without additional modifications.
Motive Gear MGK-134
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Install Details & What's in the Box
Installation Info

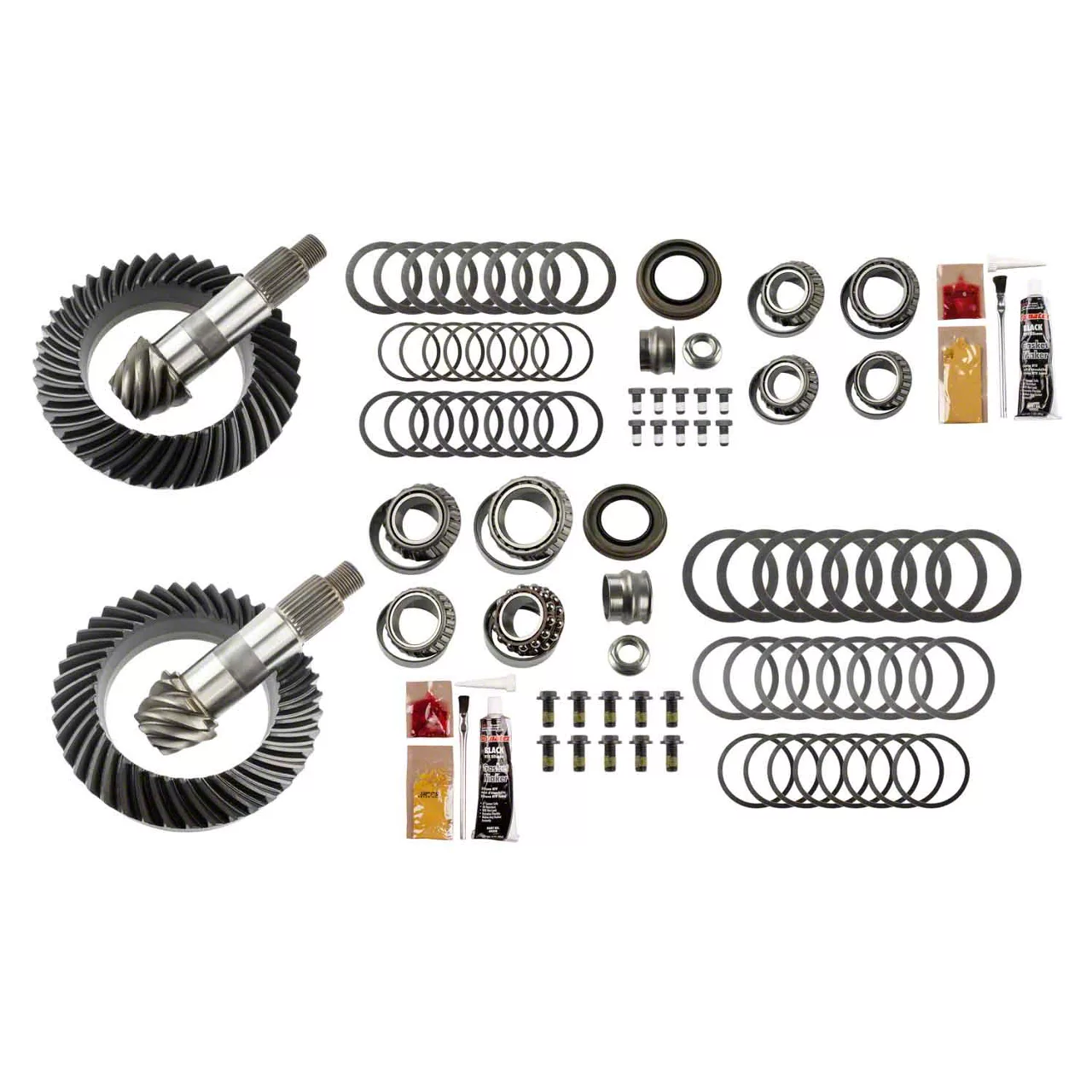

What's in the Box
- (2) Ring Gears
- (2) Pinion Gears
- (4) Koyo Bearings
- (4) Bearings
- (2) Crush Sleeves
- (2) Pinion Seal
- (2) Pinion Nut
- (1) Set of Pinion Shims
- (1) Set of Cover Gaskets
- (2) Brushes
- (2) Thread Locking Compounds
- (2) Marking Compounds
4.7
Reviews of Motive Gear Drivetrain Products (500+)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My Gladiator
- 3.0L V6 EcoDiesel - 21, 22, 23
- 3.6L V6 - 20, 21, 22, 23, 24, 25, 26
