Find Light Bars & Off-Road Lighting for your Gladiator
Morimoto 4Banger 2.0 HXB LED Light Pods; Yellow Combo Beam (Universal; Some Adaptation May Be Required)
Item JG36646
Our Price
$579.00 pair
Military, Medical & First Responders
$28.95 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs

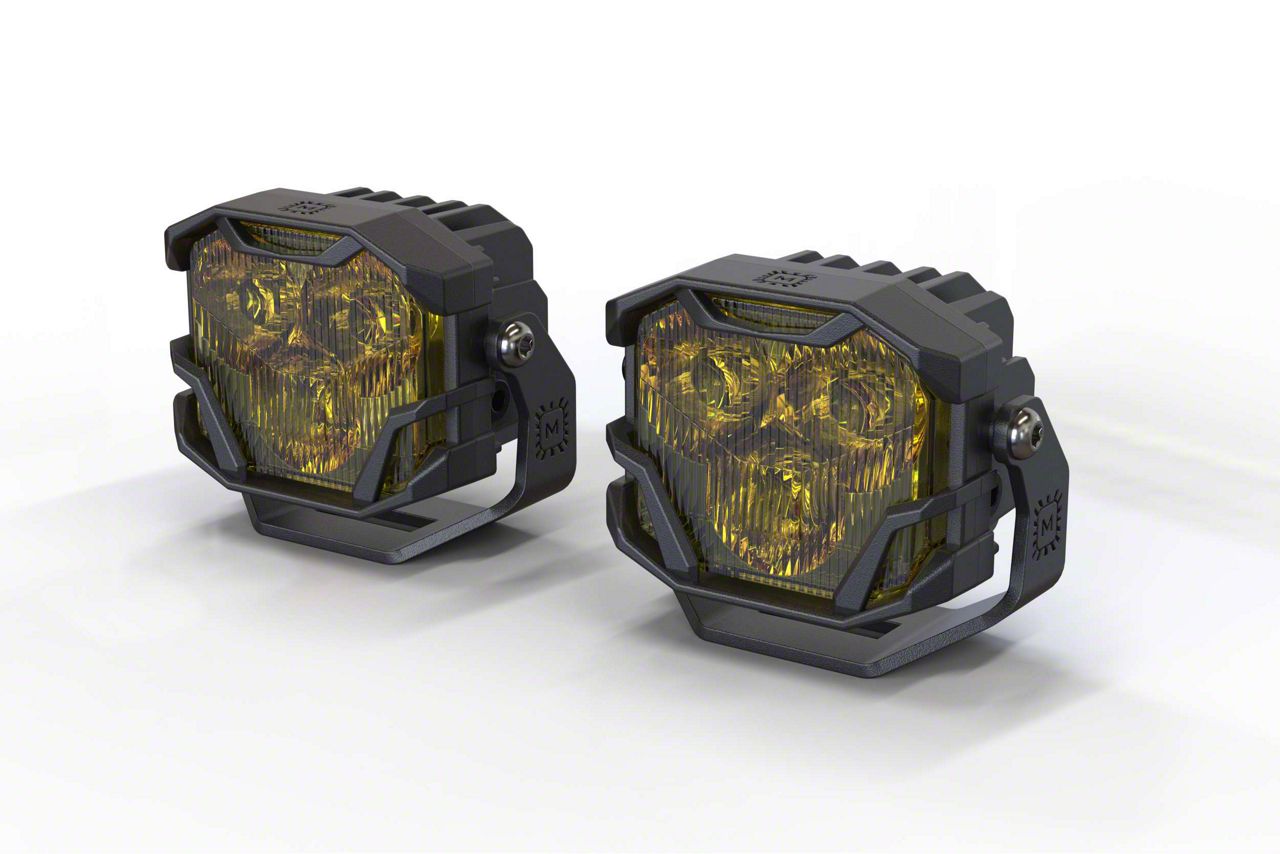

- Morimoto 4Banger 2.0 HXB LED Pods Combo Beam
- Perfect Blend Of Width And Distance Illumination
- Ultra High Performance Osram HX Boost LEDs
- Designed To IP69K Weather Resistance Standards
- Available In White Or Yellow Output
- Mounting Options Include Pedestal, Flush, Tube, Or Hanging
- Designed, Engineered, And Tested In Atlanta GA, USA
- Intensity White: 78,000 Cd Post Warm-Up
- Intensity Yellow: 54,600 Cd Post Warm-Up
- Integrated Deutsch DT 2-Pin Input
- Power Stabilized 42 Watts
- Current 3.2 Amps At 13.5 Volts DC
- Peak Luminosity Raw 3,000 Lumens
- Dimensions 82mm Width, 67mm Height, 60mm Depth
- Color Temperature 2700K Yellow Or 5700K White
- Light Source Consists Of 3 Osram HX Boost LEDs
- Lens Made From Makrolon LED Polycarbonate
- Housing Powdercoated Die Cast Aluminum
- Included Hardware Stainless Steel Bolts, Washers, Nuts, And Screws
- Fits Universal; Some Adaptation May Be Required
| Brand | Morimoto |
| Bulb Type | LED |
| Light Shape | Square |
| Light Size | 3 to 3.75 Inch |
Description
Off-Road Lighting Solution. The Morimoto 4Banger 2.0 HXB LED Light Pods Yellow Combo Beam provide a powerful and versatile lighting option for off-road enthusiasts. Designed to deliver a balanced combination of wide spread and distance illumination, these LED pods enhance visibility and safety during demanding off-road driving conditions.
Construction and Appearance. Constructed with durable powder-coated die cast aluminum housing and equipped with Makrolon polycarbonate lenses, these LED pods are built to withstand harsh environments. The use of Osram HX Boost LEDs ensures exceptional brightness and reliability, while the finish offers a sleek, rugged look suitable for off-road vehicles.
Installation. Installation of these LED pods is straightforward, typically requiring minimal modifications depending on the chosen mounting style. Drilling is generally not necessary when using the compatible mounting brackets.
Warranty. This product comes with a lifetime limited warranty for quality assurance and long-lasting performance.
Application. These pods have a universal fit design, with some adaptation potentially required depending on the mounting application or vehicle type.
Morimoto BAF010.2
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (2) Light Pods
- Does Not Include Harness, Brackets or Hardware - Sold Separately
