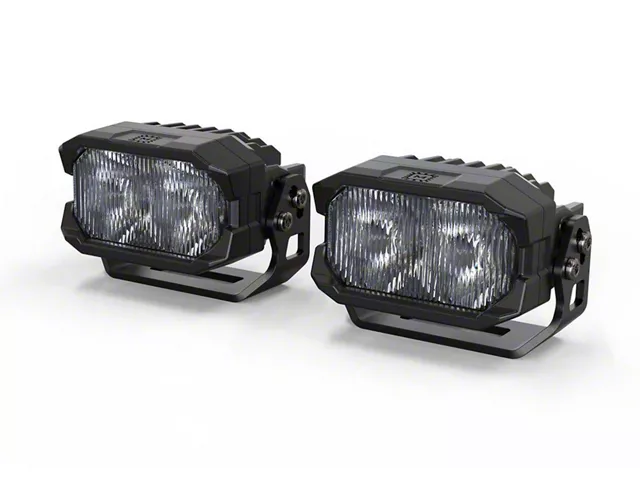

Morimoto 2Banger LED Pod Lights; HXB White SAE Beam (Universal; Some Adaptation May Be Required)
Item JG22764
Our Price
$389.00
Military, Medical & First Responders
$19.45 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Off-Road LED Pods With HXB Wide Beam Pattern _x000D_
- Designed and Tested in the USA for Ultimate Lighting Performance _x000D_
- Dual-Axis Control Provides Width and Active Hot Spot Control _x000D_
- Meets Latest SAE F Regulation for Fog Light Use on Public Roads _x000D_
- Offers Wide Beam for Challenging Conditions Like Rain, Snow, and Fog _x000D_
- Uses Osram HX Boost LEDs for High Output _x000D_
- IP69K Weather Resistance Standard _x000D_
- Available in White or Yellow Output for Optimal Visibility _x000D_
- Mounting Options Include Pedestal, Flush, Tube, or Hanging Mounts _x000D_
- Components Designed, Engineered, and Tested in Atlanta, GA _x000D_
- Includes Pair of LED Pods, Brackets, and Mounting Hardware _x000D_
- Optional Wiring and Flush Mount Brackets Available _x000D_
- Intensity White: 12,700 Cd (127 Lux @ 10m) _x000D_
- Intensity Yellow: 8,400 Cd (84 Lux @ 10m) _x000D_
- Power: 24.0W Stabilized _x000D_
- Current: 1.78A @ 13.5V DC _x000D_
- Peak Luminosity: 2,000 Lm _x000D_
- Dimensions: 81.0mm W, 49.8mm H (63.5mm with Bracket), 59.2mm D _x000D_
- Color Temperature: 2700K Yellow or 5700K White _x000D_
- Light Source: 2x Osram HX Boost LEDs _x000D_
- Integrated Deutsch DT 2-Pin Input _x000D_
- Materials: Makrolon LED PC Lens, Powder-Coated Die-Cast Aluminum Housing _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Morimoto |
| Bulb Type | LED |
| Light Shape | Oval |
| Light Size | 3 to 3.75 Inch |
Description
Advanced Lighting Solution. The Morimoto 2Banger LED Pod Lights with HXB White SAE beam deliver exceptional illumination with a wide beam pattern engineered for diverse conditions. These LED pods provide targeted, intense lighting for both off-road adventures and street-legal applications, enhancing visibility where it matters most.
_x000D__x000D_Construction and Appearance. The pods feature durable Makrolon polycarbonate lenses paired with powder-coated, die-cast aluminum housings for maximum strength and corrosion resistance. White or yellow color outputs provide optimal visibility, complemented by a refined black finish that enhances the rugged aesthetic.
_x000D__x000D_Installation. Designed for universal fit with included adjustable pedestal mounts, installation is straightforward with no drilling required for most setups. Optional mounting kits and wiring harnesses simplify integration with existing vehicle systems.
_x000D__x000D_Warranty. Backed by a lifetime limited warranty supported by the manufacturer in Atlanta, Georgia.
_x000D__x000D_Application. Fits universal applications; some adaptation may be required depending on mounting location and vehicle configuration.
Morimoto BAF116
