Eric: Hey guys, I'm Eric with ExtremeTerrain. Today, we're taking a quick look at the JL Audio Stealthbox with the 4 Ohm Driver designed to be mounted on the driver side for all 2018 and later JL Wrangler Unlimiteds. And, you should be checking this out if you want a top-of-the-line upgrade to your Jeep sound system with a serious kick in the bass. Now, with the Stealthbox for Jeep Wranglers, JL Audio really came up with an interesting design that preserves your much-needed cargo space while still delivering the high-end sound quality that you expect from JL Audio. Also available from ExtremeTerrain is the mirror image, which is the passenger side mount for the stealthbox as well.Now, in this design, JL Audio combined their advanced thin-line subwoofer technology with a form-fitting enclosure delivering outstanding sub-based performance in your 4-door Wrangler. Now that's without consuming any excess cargo space. Proudly made here in the United States, each Stealthbox is constructed from 100% fiberglass and houses a 10TW1 thin-line subwoofer that mounts solidly above each rear wheel well. A matching trim panel and sturdy steel mesh grille are also included so you can carry around plenty of gear without worrying about any damage. Now, like I mentioned before, separate driver and passenger side Stealthbox models are available. Now, a couple things worth pointing out is that if your Jeep is factory equipped with premium audio, installing a passenger-side Stealthbox requires the removal of the OEM subwoofer. And you'll also need to pick up additional trim parts from Jeep. Now, this is not an issue if you're simply purchasing the model we have here today, which mounts on the driver side. Now, another question that comes up quite frequently is will this interfere with the operation of my Jeep's soft top? Now it does not except for the final removal position where the top mechanism is detached from the rails.Now, as far as price goes, the JL Audio Stealthbox comes in under $950. And that definitely puts it in the premium category compared to other options out there. But JL Audio is not only well known for its sound quality, but once you get this unit installed in your Jeep, it integrates into the interior so well that it looks like it came from the factory that way.Now, for the installation, I'm giving it a solid two out of three wrenches on our difficulty meter. With some electrical work that comes with this kind of job, give yourself about three hours to get it done from start to finish. Now, with that said, let's take a look at this clip from an ExtremeTerrain customer who's going to show us how to mount up your new Stealthbox.Man: For today's install we're gonna use a drill, a Phillips head screwdriver bit, a one half box wrench, a socket wrench, a hex bit, a 13-millimeter socket, a step drill bit, a straight knife, a Sharpie, and if you choose, a touch-up paint pen.Hi, my name's Lamont Lampian. Today, I'm gonna do install of a JL Audio Stealthbox for Jeep Wrangler JLU. The first part of the install requires you to remove your factory liners. As you can see, I have the aftermarket liners. However, be advised JL Audio provides you with aftermarket fasteners to replace the ones you cut off from your factory liner. The next part of this install requires you to pull down your seat and flatten the fastener right here that lets you put your carpet down. And now you have access to your wheel well.To mount the Stealthbox to the wheel well, you're gonna use this mounting bracket. Make sure the two points on the bracket are facing to the rear of the vehicle. You're gonna place it on the wheel well, line up with this back line. Get yourself a Sharpie. Mark the very top hole with a Sharpie and the bottom too so you can drill your holes.The next step we're gonna do is drill three holes. Get yourself a drill and a step bit. What I like to do is get a Sharpie and mark it off. We're gonna be drilling a 3/8.Here's the tip that's not in the directions. Get some touch-up paint because you drilled in the metal, you wanna avoid rust. Get the touch-up paint, fill the holes with the metal. You wanna cover any bare spots that are showing before you cut in. Give that some time to dry before you put in your screws.Next, I like to get my hardware organized. We're gonna be using various washers and bolts for this next step. Get your mounting bracket. This is the top. You'll go take the square net carrier bolt, stick it through the top. Next, we'll get a retaining washer and just plastic, slide that down. There's another square peg on the top as we well, you wanna repeat the process.All right. Next, you're gonna grab one of the hex bolts, the small washer, stick it through the top hole of the mount. Grab the spacer, put it underneath the mount, then place that over the hole. Next, we're gonna grab the next two hex bolts, another washer, the two bottom holes that you drilled, you wanna slide that through. And then we'll move out to the outside. For this next step, we're going to use this oversized large washer first, a locking washer, and then a nut. We're gonna tighten up the bolts that's at the very top first, just hand tight, and then move on to the bottom two. Once you finish hand tight the bottom two, grab yourself a box wrench and the socket. You gonna start with the top. Tighten that one up first, then move on to the bottom two.All right. At this point, you wanna grab your speaker wire and run that because at this point you're gonna be replacing your carpet back. Get a straight knife, place your carpet back over, back into place. Find the two bolts at the top. Cut an X right over top of them so you can slide it back on.All right. We're getting close to the end now. Next step we're gonna do is remove these four screws so we can mount the speaker. Next, we'll get your drill with the Phillips head screwdriver bit, we're gonna use it to remove the eight screws from the speaker so we can remove it from the enclosure.All right. This next step is important. Once you seat the enclosure on top of the two hex bolts inside, you're gonna take the flat washer, the oversized flat washer, place that on along with a nut, and then fully seat that down with your socket wrench. Once you do that, it's gonna allow this to seat properly so you can fit the other side on as well. Once you tighten both sides down completely, you're gonna remove only one side at a time. Put this rubber washer on underneath, replace it with the oversized washer. Then you're gonna take the locking washer and the nut and finish it off, and then repeat it for both sides.Then once this is fully seated, you're good to go. But you're gonna take off the first one you started with, leaving the back one still on. Then you put the rubber washer on, the oversized flat washer, the locking washer, and the nut, and tighten it down. Once you have this tightened down, repeat the process for the other one. Now, that you have your enclosure secure, put your polyfill back in, take your speaker, reconnect it. And then screw in your eight screws.Now before you put them on your cover, make sure you connect your speaker wires. Make sure not to overtighten these screws, because you will crack the plastic. And that right there completes the install of the JL Audio Stealthbox.Eric: Okay, so that wraps up this review and installation of the JL Audio Stealthbox with driver side mount for all 2018 and later Jeep Wrangler JL Unlimiteds. And, of course, for all things Wrangler, keep it right here at extremeterrain.com.
Subscribe to our YouTube Channel
Features, Description, Reviews, Q&A, Specs & Installation
Great Bass From a Tight Space. The JL Driver Side Audio Stealthbox is the perfect subwoofer enclosure for your Wrangler JL that’s designed to provide superior bass sounds while maximizing your Jeep’s cargo space. As its name implies, this sealed enclosure mounts in a stealthy, unobtrusive manner allowing you to make full use of your vehicle’s cargo space. Moreover, this enclosure is designed to work harmoniously with its accompanying subwoofer so you get the kind of chest-thumping bass that brings your driving music to life.
Powerful Bass. The subwoofer that comes with the JL Driver Side Audio Stealthbox is not short on power. This subwoofer measures 10 inches wide and is rated at 300 Watts RMS, with a 600-Watt peak power output. This subwoofer works best with a mono amplifier with an RMS power rating between 225 to 450 Watts at 2 Ohms.
Tough Fiberglass Construction. The JL Driver Side Audio Stealthbox is crafted from high-quality fiberglass. This subwoofer enclosure features a sealed design and is handcrafted to a precise fit. The result is an enclosure that looks like a factory-installed component when mounted. This Stealthbox comes with a black fabric finish to match your Jeep’s cargo area.

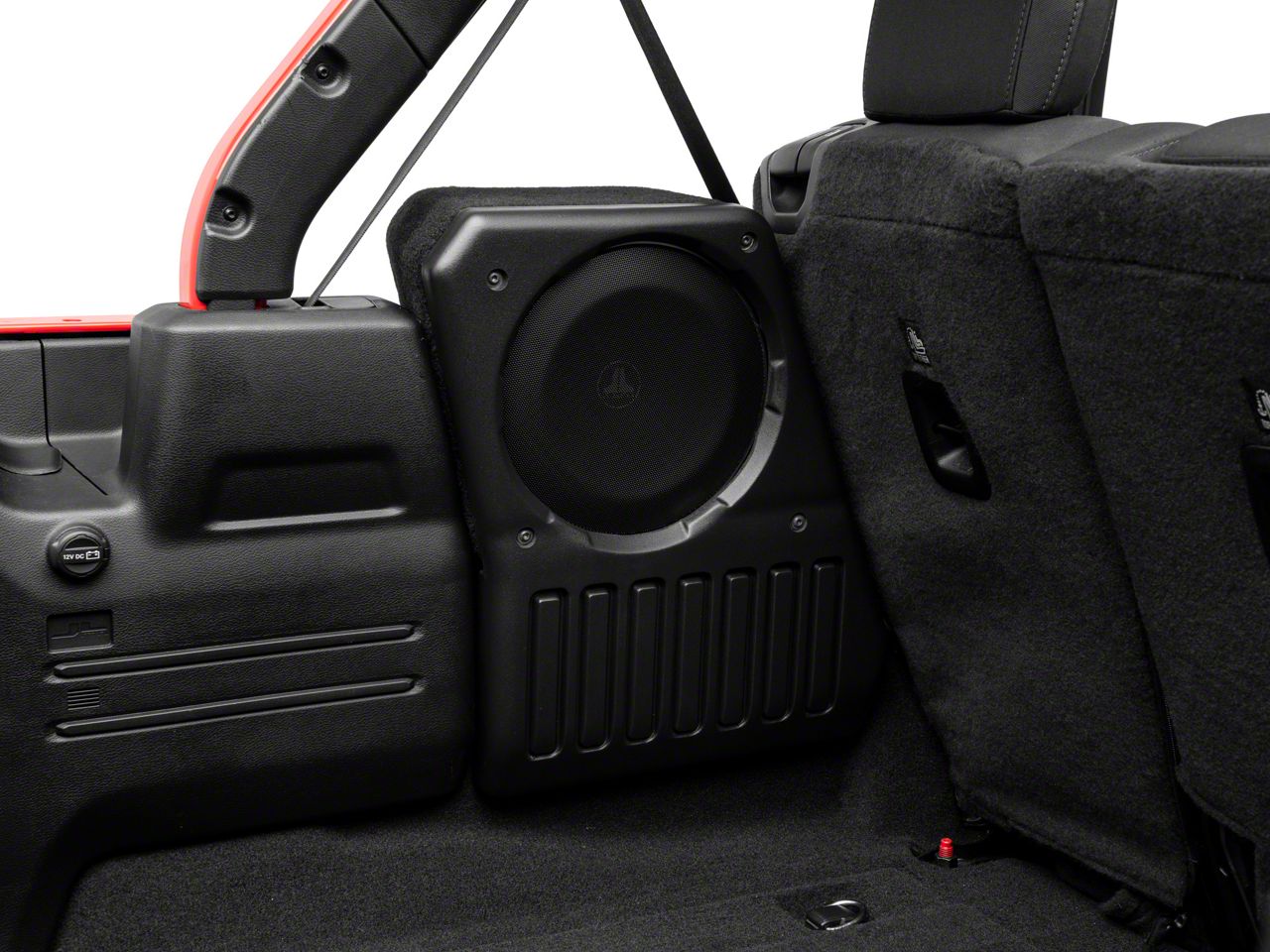

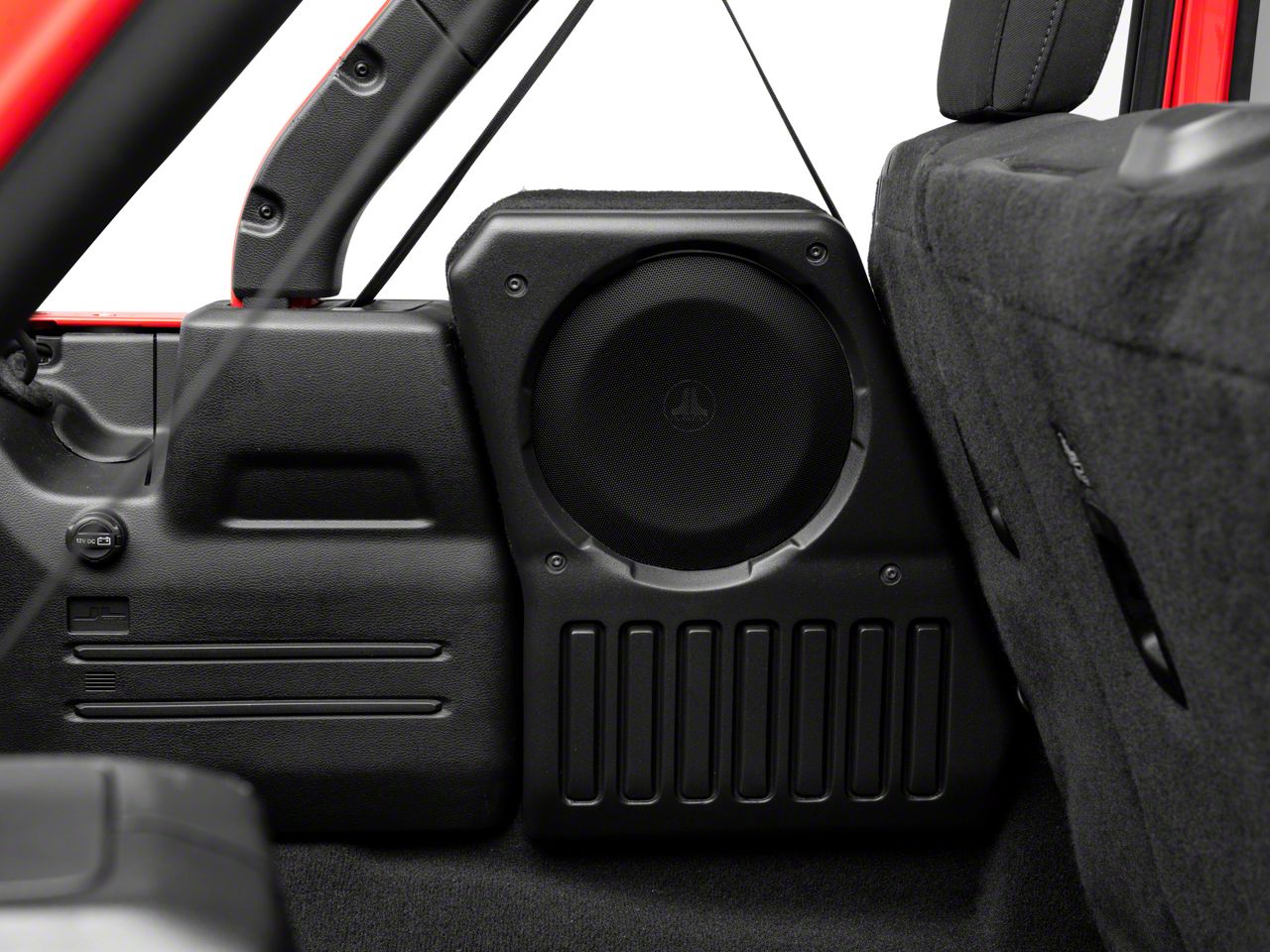

Straightforward Installation. The JL Driver Side Audio Stealthbox installs behind the driver seat above the wheel wells. This enclosure uses preexisting locations in your vehicle and will not need any modifications. Additionally, installation is completed using standard hand tools.
Backed By a 2-Year Limited Stealthbox and 1-Year Limited Subwoofer Warranty. The JL Driver Side Audio Stealthbox is backed by a 2-year limited warranty covering the stealthbox, and a 1-year limited warranty covering the subwoofer. Please visit the manufacturer’s website for more details.
Application. The JL Driver Side Audio Stealthbox fits all 2018-2023 Jeep Wrangler JL 4 Door models.
JL Audio 94664
