Find LED Light Bars for your Gladiator

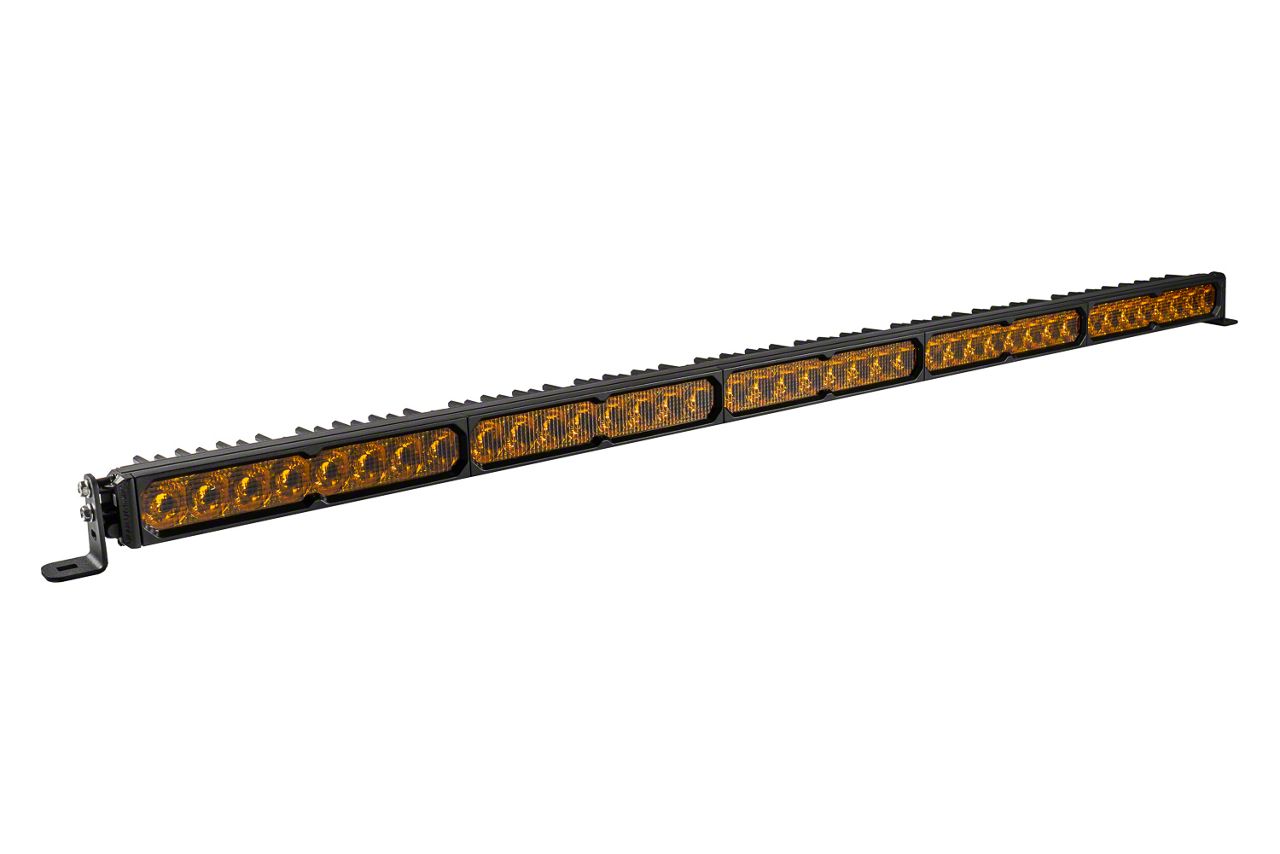

Diode Dynamics SS50 Sport Single Row LED Light Bar with Amber Backlight; Yellow Driving (Universal; Some Adaptation May Be Required)
Item JG62229
Our Price
$999.95
Military, Medical & First Responders
$50.00 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features & Specs
- _x000D_
- Patented TIR Optics For Maximum Efficiency And Output _x000D_
- Upgraded Beam Patterns Engineered For Real-World Performance _x000D_
- True Amber Backlight Provides Unique Accent Lighting _x000D_
- Available In Sport And Pro Power Levels _x000D_
- Durable Aluminum Housing With ASTM-Standard Powdercoat Finish _x000D_
- Built For The Extreme With IP69K Waterproof Rating _x000D_
- Limited Lifetime Warranty _x000D_
- Made In USA With Global Materials _x000D_
- Peak Beam Intensity Ranges From 9,500 Cd To 835,000 Cd Depending On Model _x000D_
- Illuminance Ranges From 95 Lux To 8,350 Lux At 10 Meters _x000D_
- Raw Output From 18,440 Lumens To 62,720 Lumens _x000D_
- Output Color Is 3000K Yellow _x000D_
- Beam Angles Include Combo/Driving 60°x30°, SAE Driving 20°x12°, Flood 100°x80°, Spot 8°x8° _x000D_
- Operating Voltage Between 9-30V _x000D_
- Current Draw Between 16.56A And 23.05A At 12.8V _x000D_
- Operating Temperature Range From -40°C To 85°C (-40°F To 185°F) _x000D_
- LED Emitters Are Osram Ostar Projection Compact And Lumileds Automotive Grade LED _x000D_
- Deutsch DT-P 4-Pin Input Connector _x000D_
- Materials Include Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets _x000D_
- Passive Cooling Through Heatsink _x000D_
- IP69K Waterproof And High Pressure Rated _x000D_
- Product Dimensions Are Approximately 2.01x51.63x2.46 Inches _x000D_
- Includes One LED Light Bar, One Wire Pigtail, Universal Bracket Set _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Light Bar Width | 50 Inch and Up |
Description
Advanced Lighting Performance. The Diode Dynamics SS50 Sport Single Row LED Light Bar with Amber Backlight; Yellow Driving delivers high-impact illumination with patented TIR optics engineered to maximize light efficiency and output. Designed for enhanced visibility in all conditions, it offers a variety of beam patterns to suit different driving needs, making it an essential tool for off-road and inclement weather driving situations.
_x000D_Construction and Appearance. This light bar features a durable aluminum housing finished with an ASTM-standard powdercoat, ensuring long-lasting protection against the elements. It incorporates high-quality materials such as aluminum and copper PCBs, polycarbonate lenses, and stainless steel brackets. The amber backlight provides a unique accent, while the robust design achieves an IP69K waterproof rating for extreme weather resilience.
_x000D_Installation. Installation typically takes between 30 and 60 minutes using basic tools, and no drilling is usually required thanks to the included universal bracket kit. This design allows for straightforward mounting on a variety of vehicles with minimal adaptation.
_x000D_Warranty. The product is backed by a limited lifetime warranty, ensuring confidence in its reliability and performance over time.
_x000D_Application. Fits universal; some adaptation may be required.
