Find LED Light Bars for your Gladiator

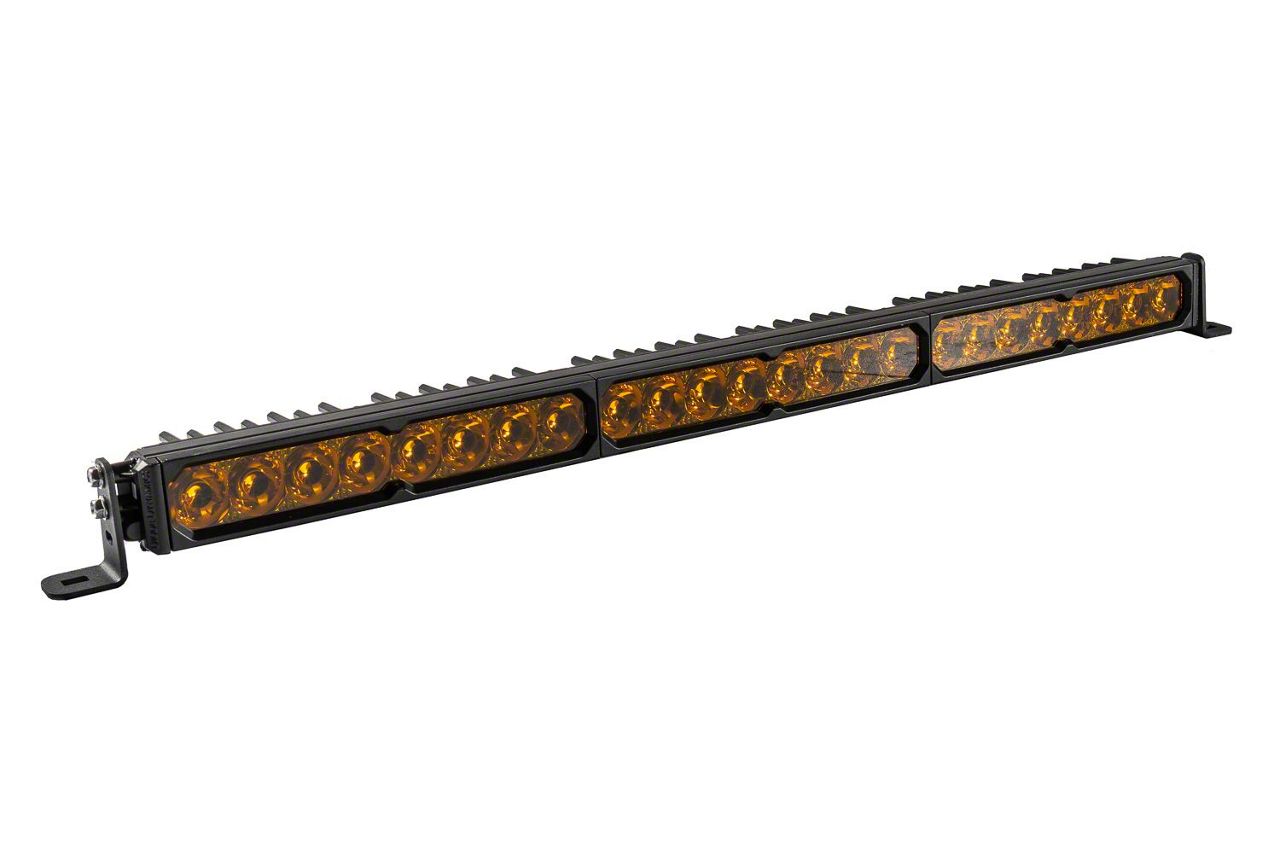

Diode Dynamics SS30 Sport Single Row LED Light Bar with Amber Backlight; Yellow Spot (Universal; Some Adaptation May Be Required)
Item JG62186
Our Price
$599.95
Military, Medical & First Responders
$30.00 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features & Specs
- _x000D_
- Patented TIR Optics For Maximum Efficiency And Output _x000D_
- Upgraded Beam Patterns Engineered For Real-World Performance _x000D_
- True Amber Backlight Provides Unique Accent Lighting _x000D_
- Available In Sport And Pro Power Levels _x000D_
- Durable Aluminum Housing With ASTM-Standard Powdercoat Finish _x000D_
- Built For The Extreme With IP69K Waterproof Rating _x000D_
- Limited Lifetime Warranty _x000D_
- Made In USA With Global Materials _x000D_
- Peak Beam Intensity Ranges From 181,000 Cd To 471,000 Cd Depending On Optic And Power Level _x000D_
- Illuminance Up To 4,710 Lux At 10 Meters _x000D_
- Raw Output Up To 37,632 Lumens _x000D_
- Output Color Is 3000K Yellow _x000D_
- Beam Angles Include Combo/Driving (60°x30°), SAE Driving (20°x12°), Flood (100°x80°), And Spot (8°x8°) _x000D_
- Power Consumption: Sport Model 120 Watts, Pro Model 165 Watts _x000D_
- Operating Voltage Between 9 And 30 Volts _x000D_
- Current Draw: Sport Model 9.38 Amps, Pro Model 12.90 Amps At 12.8 Volts _x000D_
- Polarity Specific _x000D_
- Operating Temperature From -40°C To 85°C (-40°F To 185°F) _x000D_
- Employs Osram Ostar Projection Compact And Lumileds Automotive Grade LED Emitters _x000D_
- Deutsch DT-P Input Connector _x000D_
- Materials Include Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets _x000D_
- Passive Cooling Via Heatsink _x000D_
- IP69K Waterproof And High-Pressure Intrusion Rating _x000D_
- Product Dimensions: 2.01 Inches Height x 31.63 Inches Length x 2.46 Inches Depth _x000D_
- Includes One LED Light Bar, Wire Pigtail, And Universal Bracket Set _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Light Bar Width | 30 to 39 Inch |
Description
Advanced Lighting Solution. The Diode Dynamics SS30 Sport Single Row LED Light Bar with Amber Backlight and Yellow Spot is engineered to deliver superior illumination with focused light output optimized for various driving conditions. It enhances visibility and safety by cutting through fog, rain, and snow, making it an essential accessory for off-road and inclement weather applications.
_x000D__x000D_Construction and Appearance. This light bar features high-quality materials including aluminum and copper PCBs, polycarbonate lenses, and durable stainless steel brackets. The housing is finished with an ASTM-standard powdercoat for corrosion resistance and durability, complemented by a fully encapsulated amber backlight that provides a unique visual accent and improves usability in adverse weather.
_x000D__x000D_Installation. Designed for ease of installation, this light bar can be mounted using the universal bracket set provided and requires only basic tools. No specialized drilling is generally necessary, allowing for a straightforward setup within 30 to 60 minutes.
_x000D__x000D_Warranty. The product is backed by a limited lifetime warranty, ensuring long-term reliability and customer satisfaction.
_x000D__x000D_Application. Fits universal applications; some adaptation may be required depending on specific vehicle or mounting conditions.
Diode Dynamics DD8263
