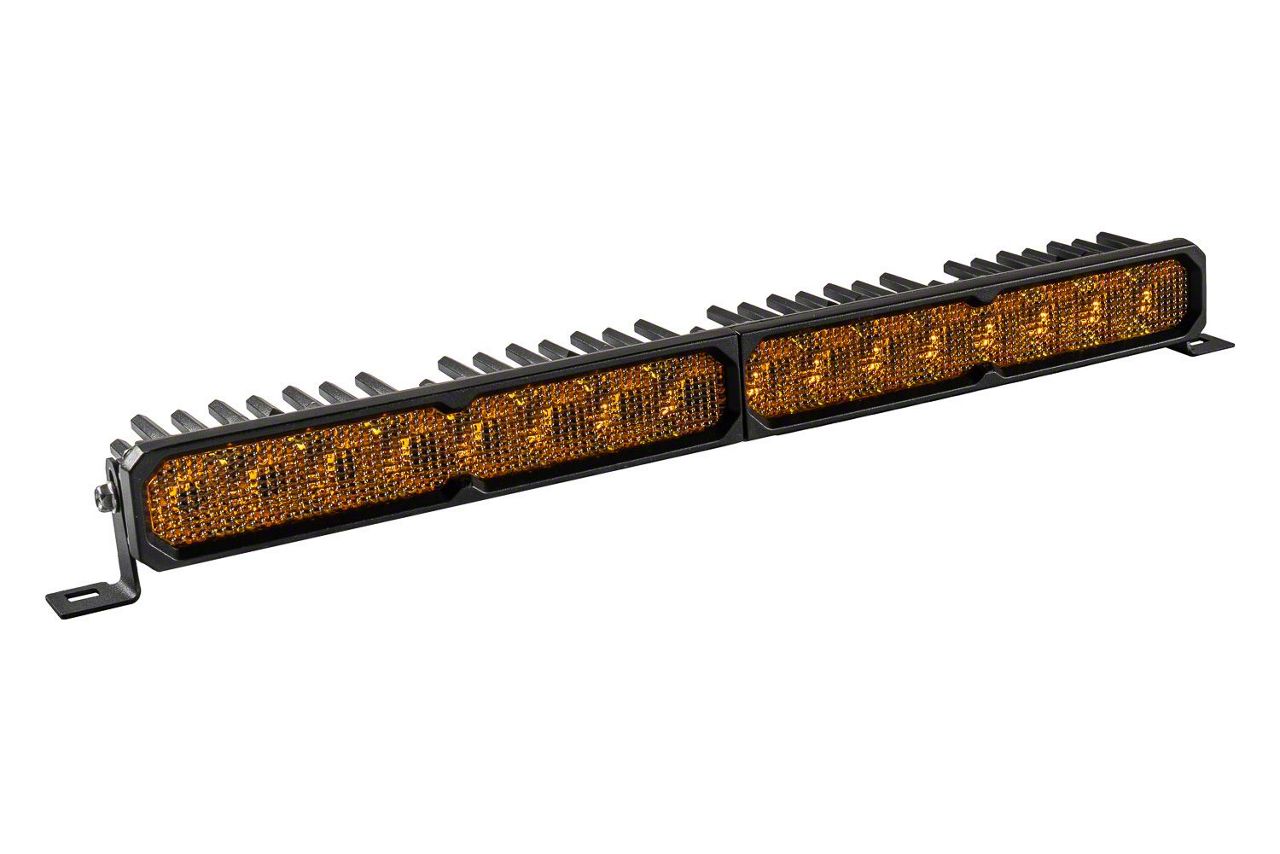

Diode Dynamics SS20 Sport Single Row LED Light Bar with Amber Backlight; Yellow Flood (Universal; Some Adaptation May Be Required)
Item JG62159
Our Price
$399.95
Military, Medical & First Responders
$20.00 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features & Specs
- _x000D_
- Patented TIR Optics For Maximum Efficiency And Output _x000D_
- Upgraded Beam Patterns Engineered For Real-World Performance _x000D_
- True Amber Backlight Provides Unique Accent Lighting _x000D_
- Available In Sport And Pro Power Levels _x000D_
- Durable Aluminum Housing With ASTM-Standard Powdercoat Finish _x000D_
- Built For Extreme Conditions With IP69K Waterproof Rating _x000D_
- Limited Lifetime Warranty _x000D_
- Made In USA With Global Materials _x000D_
- Optic/Power Level Options Including SAE Driving, Flood, Combo, And Spot _x000D_
- Peak Beam Intensity Ranges From 4,000 Cd To 336,000 Cd Depending On Model _x000D_
- Illuminance Ranges From 40 Lux To 3,360 Lux At 10 Meters _x000D_
- Raw Output Between 7,376 Lumens And 25,088 Lumens _x000D_
- Output Color Temperature Is 3000K Yellow _x000D_
- Operating Voltage From 9 To 30 Volts _x000D_
- Operating Temperature Range From -40°C To 85°C (-40°F To 185°F) _x000D_
- Uses Osram Ostar Projection Compact And Lumileds Automotive Grade LED Emitters _x000D_
- Polarity Specific With Deutsch DT Input Connector _x000D_
- Materials Include Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets _x000D_
- Passive Cooling Via Heatsink _x000D_
- Product Dimensions Approximately 2.01 x 20.24 x 2.37 Inches _x000D_
- Fits Universally; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Light Bar Width | 20 to 29 Inch |
Description
High-Performance Lighting. The Diode Dynamics SS20 Sport Single Row LED Light Bar with Amber Backlight in Yellow Flood delivers powerful, focused illumination designed for off-road and adverse weather conditions. This light bar enhances visibility by cutting through fog, rain, and snow while providing a unique amber backlight for added safety and style. It is ideal for drivers seeking efficiency, intensity, and durability in demanding environments.
_x000D__x000D_Construction and Appearance. Built with a rugged aluminum housing finished in a durable ASTM-standard powdercoat, this light bar combines robust materials with advanced manufacturing techniques. The polycarbonate lens and stainless steel brackets ensure longevity, while the patented TIR optics efficiently focus the LED output. The amber backlight embedded in the optic provides a distinctive appearance that also serves a functional accent lighting purpose.
_x000D__x000D_Installation. Installation is straightforward, requiring only basic hand tools and no drilling thanks to the included universal bracket set. The process typically takes between 30 and 60 minutes, suitable for both professional installers and experienced enthusiasts.
_x000D__x000D_Warranty. This product is backed by a limited lifetime warranty, ensuring lasting reliability and customer confidence.
_x000D__x000D_Application. Fits universally; some adaptation may be required.
