Radar Blind Spot System with Cross Traffic Detection (Universal; Some Adaptation May Be Required)

Item JG37578
20 Reviews of similar
Our Price

$774.99 set

Military, Medical & First Responders $38.75 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

      • Retrofit Radar Blind Spot Monitoring and Detection System
      • Enhanced Performance Compared to Original Equipment-Based Systems
      • Compatible with Vehicles Equipped with Plastic Fascias (All Bumpers Except Metal Bumpers)
      • Utilizes Automaker-Validated Original Equipment Components
      • Includes Cross Traffic Detection Functionality
      • Reduces False Triggers Common in Other Systems
      • Obtains Vehicle Speed Accurately Using Radar Instead of CAN Data
      • Volume-Adjustable Audible Buzzer with Hi-Low-Off Switch
      • Blind Spot Detection Illuminates HMI at 27 Feet Behind Radar for Speed Differences Under 18 MPH
      • Lane Change Assist Illuminates HMI at 290 Feet Behind Radar for Speed Differences Over 18 MPH
      • Blind Spot Monitoring Activates at Speeds Over 18 MPH
      • High Accuracy Sensors Detect Moving Objects of Various Sizes
      • Cross Traffic Detection Activates Immediately When Reversing
      • Includes 21-Foot Main Harness and 6.5-Foot Rear Sensor Harness
      • Sensor Working Voltage: 12-24V DC
      • Sensor Power Consumption: 250mA @ 12V DC
      • Sensor Operating Temperature Range: -40°C to 85°C
      • Sensor Storage Temperature Range: -45°C to 90°C
      • Detection Range: 0.15 Meters to 120 Meters
      • Waterproof Rating: IP69
      • Sensor Mounts Behind Rear Fascia Using External Bracket and Screws
      • Radar Frequency Range: 76 GHz to 77 GHz
      • Trigger Wires for Left and Right Audio Warning
      • Amber HMI Warning Light with Black Trim and Drill-In Mounting
      • Buzzer Mounts with 3M Tape or Screws
      • Buzzer Volume Above 85db and Adjustable (Hi/Med/Lo)
      • Does Not Function Through Metal Bumpers
      • Fits Universally; Some Adaptation May Be Required

      Description

      Advanced Radar Safety. The Radar Blind Spot System with Cross Traffic Detection is a retrofit solution designed to enhance driver awareness by monitoring blind spots and detecting cross traffic. It provides real-time alerts to help prevent collisions when changing lanes or reversing, making it an essential safety upgrade for vehicles without factory-installed systems. This system operates using radar technology, ensuring reliable detection in various driving conditions.

      Construction and Appearance. The system features high-precision 76-77 GHz radar sensors housed behind the rear fascia with robust, waterproof IP69-rated construction, ensuring durability against harsh environments. The hardware includes an amber warning light with black trim and an adjustable volume buzzer, designed for seamless integration and an unobtrusive appearance within the vehicle’s existing bodywork.

      Installation. The radar sensors mount behind the rear fascia using supplied brackets and screws, with a drill-in mounted HMI indicator light. The installation requires moderate skill, including drilling, but is facilitated by the included comprehensive wiring harnesses and detailed instructions.

      Application. This radar system fits universally with most vehicles equipped with plastic bumpers, as it does not operate through metal bumpers and may require some adaptation depending on the vehicle’s fascia design.

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 2 Hours

      Difficulty Level:

      Light to Moderate mechanical skill required.

      Installation Guides

        No guide available for this part yet.

      What's in the Box

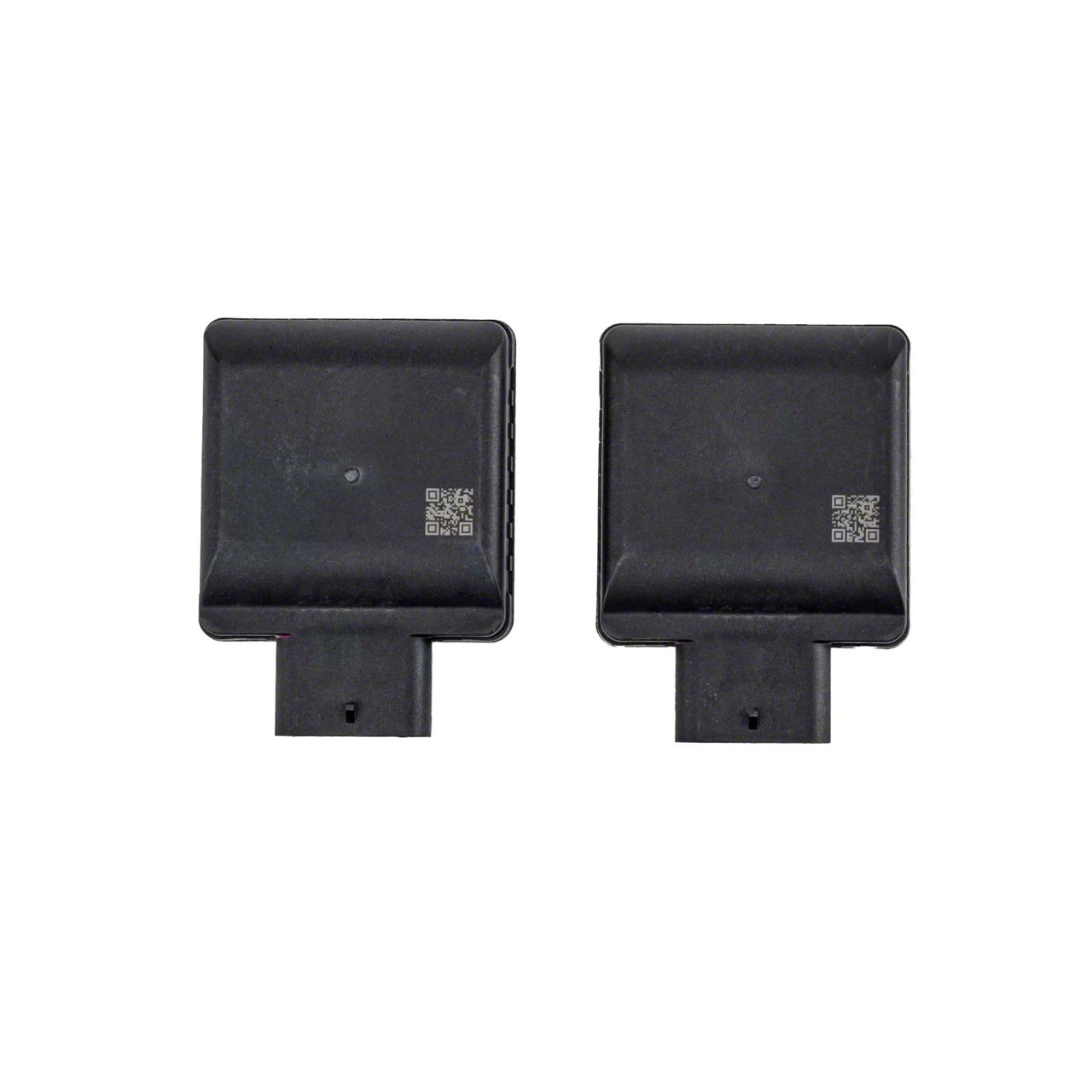

      • (2) Blind Spot Radar Sensors
      • (2) Visual Alert Indicators
      • (1) Control Module
      • (1) Wiring Harness
