Find Audio & Electronics for your Gladiator

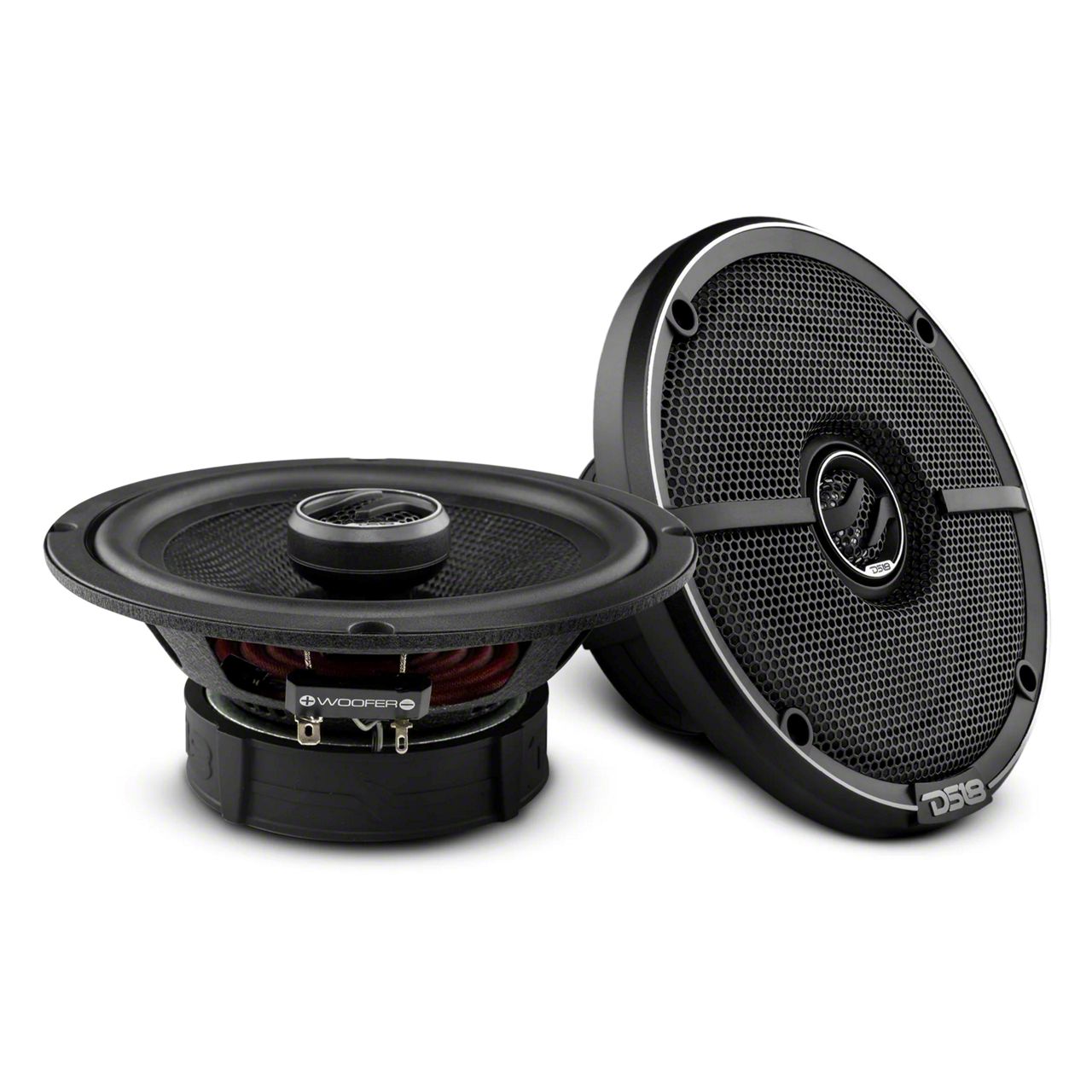

DS18 ZXI 6.50-Inch 2-Way Coaxial Speakers with Kevlar Cone; 240 Watts (Universal; Some Adaptation May Be Required)
Item JG22170
Our Price
$94.95 pair
Military, Medical & First Responders
$4.75 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features
- _x000D_
- 6.5" 2-Way Coaxial _x000D_
- Max Power 240 Watts _x000D_
- RMS Power 80 Watts _x000D_
- Impedance 4 Ohm _x000D_
- Barium Ferrite and Neodymium Magnets _x000D_
- Pair Approximately 87dB Sensitivity _x000D_
- Nominal Diameter 6.5 Inches _x000D_
- Frequency Response 40 Hz - 20 KHz _x000D_
- Recommended High Pass 60 Hz _x000D_
- Voice Coil Diameter 25.5 Mm (1 Inch) _x000D_
- Voice Coil Former Material KSV _x000D_
- Winding Material EISV _x000D_
- Cone Material Glass Fiber _x000D_
- Surround Material Rubber _x000D_
- Basket Material Steel _x000D_
- Magnet Material Barium Ferrite _x000D_
- Magnet Weight 14.46 Oz / 410 G _x000D_
- Tweeter Nominal Diameter 25.4 Mm (1 Inch) _x000D_
- Tweeter Voice Coil Diameter 20.4 Mm (0.8 Inch) _x000D_
- Tweeter Voice Coil Former Material KSV _x000D_
- Tweeter Winding Material EISVM _x000D_
- Diaphragm Material PEI _x000D_
- Tweeter Magnet Material Neodymium _x000D_
- Tweeter Magnet Weight 8.5 G / 0.3 Oz _x000D_
- Vas 10.84 Ltr _x000D_
- Xmax 2.7 Mm _x000D_
- Fs 64 Hz _x000D_
- Qms 9.44 _x000D_
- Qes 0.79 _x000D_
- Qts 0.73 _x000D_
- Mms 13.72 G _x000D_
- Cms 444 Mm / N _x000D_
- BL 5.1 _x000D_
- Le 228 Mh _x000D_
- Sd 131 Cm2 _x000D_
- Re 3.5 Ohm _x000D_
- Mmd 12 G _x000D_
- Overall Diameter 6.50 Inch (165 Mm) _x000D_
- Overall Depth 72 Mm (2.83 Inch) _x000D_
- Front Mount Baffle Cutout 141 Mm (5.55 Inch) _x000D_
- Mounting Depth 60 Mm (2.36 Inch) _x000D_
- Motor Diameter 94 Mm (3.70 Inch) _x000D_
- Product Weight 5.5 Lbs _x000D_
- Product Dimensions 15.75 X 7.75 X 3.75 Inches _x000D_
- Sold in Pair _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
Description
Powerful Coaxial Speaker. The DS18 ZXI 6.50-Inch 2-Way Coaxial Speakers with Kevlar Cone; 240 Watts deliver impressive audio performance for automotive sound systems. These speakers provide clear and balanced sound across a wide frequency range, enhancing in-car listening experiences. Ideal for enthusiasts seeking to upgrade factory-installed speakers.
_x000D__x000D_Construction and Appearance. The speakers feature durable glass fiber cones with a rubber surround and a Kevlar woofer cone for optimal stiffness and vibration control. The midrange voice coil uses KSV former materials with EISV winding, coupled with Barium Ferrite magnets. The tweeter incorporates a PEI diaphragm and neodymium magnets for detailed high-frequency reproduction. The basket is steel for structural integrity.
_x000D__x000D_Installation. Installation is straightforward with standard mounting dimensions. No additional drilling is typically required unless adaptations are made for specific vehicle models.
_x000D__x000D_Warranty. These speakers come with a 2-year warranty for quality assurance.
_x000D__x000D_Application. Fits universally with some adaptation potentially needed depending on vehicle specifications.
DS18 ZXI-654
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (2) Coaxial Speakers
- Mounting Hardware
- Instruction Manual
