Find Audio & Electronics for your Gladiator

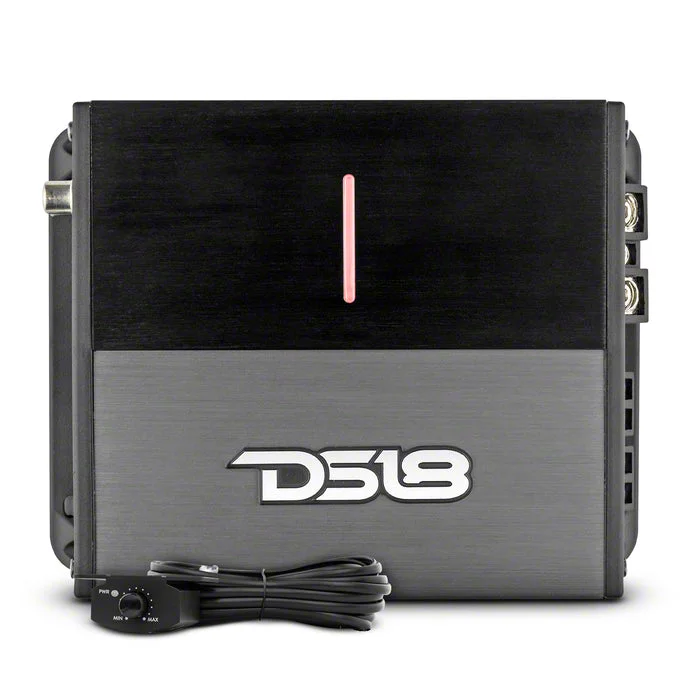

DS18 ION Compact Full Range 2-Channel Amplifier; 350 x 2 Watts (Universal; Some Adaptation May Be Required)

Item JG44720
Our Price

$299.95

Military, Medical & First Responders $15.00 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program

      Product Information

      Features, Description, Q&A

      Features

      • 2 Channel Full Range
      • Class D
      • 2 - 4 Ohm Stable
      • 2 X 240 Watts At 4 Ohm
      • Power Clip Protection Indicator
      • Compact Design
      • Total Watts Peak 2100W
      • RMS Power At 4 Ohm 2 X 240W
      • RMS Power At 2 Ohm 2 X 350W
      • RMS Power At 1 Ohm Not Applicable
      • RMS Power At 4 Ohm Bridge 700W
      • Frequency Response 10Hz-20KHz
      • Signal To Noise Ratio Greater Than 95dB
      • Efficiency At 4 Ohm 88%
      • Damping Factor 210
      • Input Impedance 27K Ohms
      • Channel Separation 59dB
      • Total Harmonic Distortion 0.01%
      • Low Level Input Range 0.2-6V
      • High Level Input Enabled
      • Selectable Crossover: LPF, HPF, FULL
      • Crossover Filter Range 40Hz-2KHz
      • Bass Boost Range 0 To 12dB
      • Bass Boost Frequency 45Hz
      • Amplifier Class Digital
      • Amplifier Type Full-Range Stereo
      • Number Of Channels 2
      • Minimum Impedance: 2 Ohm (Stereo), 4 Ohm (Bridge)
      • LED Indicators: Power, Protect, Clipping
      • Power Input Terminal Size 4 AWG
      • Fuse Size 60A External
      • Remote Level Control Included
      • Cooling Fan Not Included
      • Thermal Protection Included
      • Overload Protection Included
      • DC Output Protection Included
      • Short Circuit Output Protection Included
      • Voltage Input Protection Included
      • Clipping Protection Included
      • Body Color Finish: Aluminum Black Silver
      • Hi-Level Speaker Connector Available
      • Tiffany RCA Terminal Present
      • LED Clip Indicator Present
      • High Efficiency Micro Digital Design
      • Overall Length 6.14 Inches (156mm)
      • Overall Width 4.72 Inches (120mm)
      • Overall Height 2 Inches (52mm)
      • Heatsink Length 4.84 Inches (123mm)
      • Gross Single Unit Weight 0.75 Kilograms
      • Fits Universal; Some Adaptation May Be Required

      Description

      Compact Powerful Amplifier. The DS18 ION Compact Full Range 2-Channel Amplifier delivers high-efficiency power output of 350 watts RMS x 2 at 2 ohms to enhance car audio systems. It is designed for automotive audio setups, providing clear and precise sound amplification at both 2 and 4 ohm speaker loads. This amplifier ensures high-fidelity audio performance suitable for a variety of vehicles and audio configurations.

      Construction and Appearance. Built with a durable aluminum chassis finished in black and silver, the amplifier features a compact design to fit easily within constrained spaces. It incorporates high-quality components including Tiffany RCA terminals and a micro digital circuit design for high efficiency. The unit includes LED indicators to monitor power, protection, and clipping status, enhancing ease of use and safety.

      Installation. The amplifier is straightforward to install, requiring no drilling in most applications. Its compact size and standard terminal fittings allow simple integration into existing audio systems.

      Warranty. This amplifier is backed by a 2-year warranty, ensuring reliable performance and customer support.

      Application. Fits universal; some adaptation may be required.

      DS18 ION700.2D

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      5.0

      Reviews of DS18 Interior Products (1)

      Questions & Answers

      No questions about this product yet. Ask the First Question
