Find Fog Lights for your Titan XD

Diode Dynamics Elite Series LED Fog Lights; Yellow (2016 Titan XD)Find parts that fit my vehicle

Item NTX2743
Our Price

$259.95

Military, Medical & First Responders $13.00 Available in XT Cash Rewards.
Confirm Eligibility

Save with Open Box

From $181.97

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

      • High-Performance OEM-Grade Replacement
      • Custom-Engineered Optic Provides Extremely Wide, Intense Light Output
      • Distinctive Integrated Amber Backlight
      • Road-Legal Fog Light SAE F3 Compliant
      • Plug and Play Main Beam Installation, No Modification Needed
      • Engineered and Assembled in USA
      • Raw Lumens: 1,650 lm
      • Intensity: 11,400 Cd
      • Color Temperature: 3000K Selective Yellow
      • Beam Angle Fog: 80°x6°
      • Power: 18 Watts
      • Operating Voltage: 9-16V
      • Current: 1.4A at 13.2V
      • Wire Size: 16AWG & 18AWG
      • Polarity Specific
      • Operating Temperature: -40°C to 85°C (-40°F to 185°F)
      • LED Emitter: Multi-Die Automotive Emitters
      • Connector: Deutsch DT Input
      • Driver Features: Constant Current
      • Materials: Copper PCB, UV-Coated Polycarbonate Lens, Precision Aluminum Casting
      • Cooling: Passive, Pin-Fin Heatsink
      • Compliance Ratings: SAE J575 Durability Test, SAE J583 Foglamp Beam Pattern
      • Intrusion Ratings: IP68 Waterproof
      • Unit Weight: 0.85 lb
      • Product Weight: 2.25 lb
      • Shipped Weight: 2.75 lb
      • Fits 2016 Titan XD

      Description

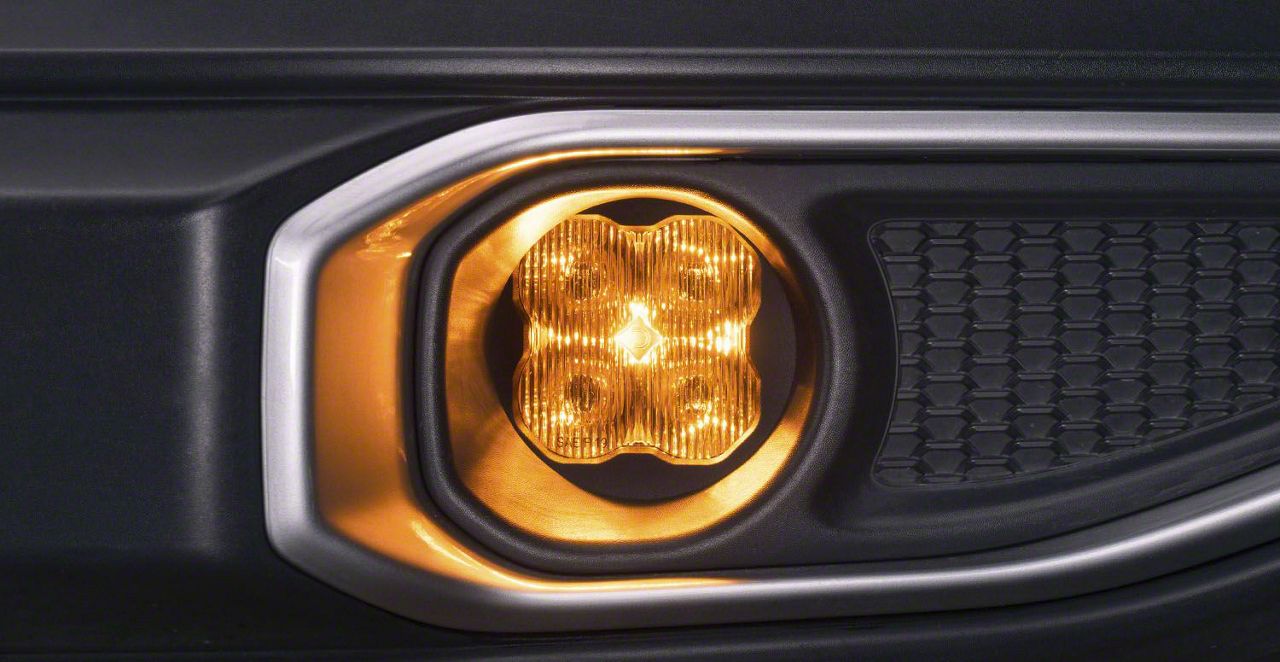

      High-Output Fog Lighting. The Diode Dynamics Elite Series Type A Fog Lamps - Yellow deliver superior illumination for improved visibility in adverse weather conditions. Designed to replace factory fog lamps, these lights provide enhanced safety and performance with a distinctive selective yellow beam optimized for high contrast and clarity on the road.

      Construction and Appearance. These fog lamps feature precision aluminum casting, a UV-coated polycarbonate lens, and a copper-core circuit board. Assembled in the USA, they offer high-quality craftsmanship with a durable sealed design and an integrated amber backlight for accent lighting.

      Installation. Installation is straightforward and plug-and-play with no modifications or drilling required. The lamps bolt directly into existing factory fog lamp locations using reinforced brackets and include waterproof connectors compatible with factory wiring.

      Warranty. These fog lamps are backed by an 8-year limited warranty, demonstrating confidence in their long-term durability and reliability.

      Application. Designed as a direct OEM fog lamp replacement, these Elite Series Type A fog lamps fit the 2016 Titan XD, providing an easy upgrade to enhanced LED fog lighting performance.

      Diode Dynamics DD5129P
