Find Light Bars & Off-Road Lighting for your Gladiator

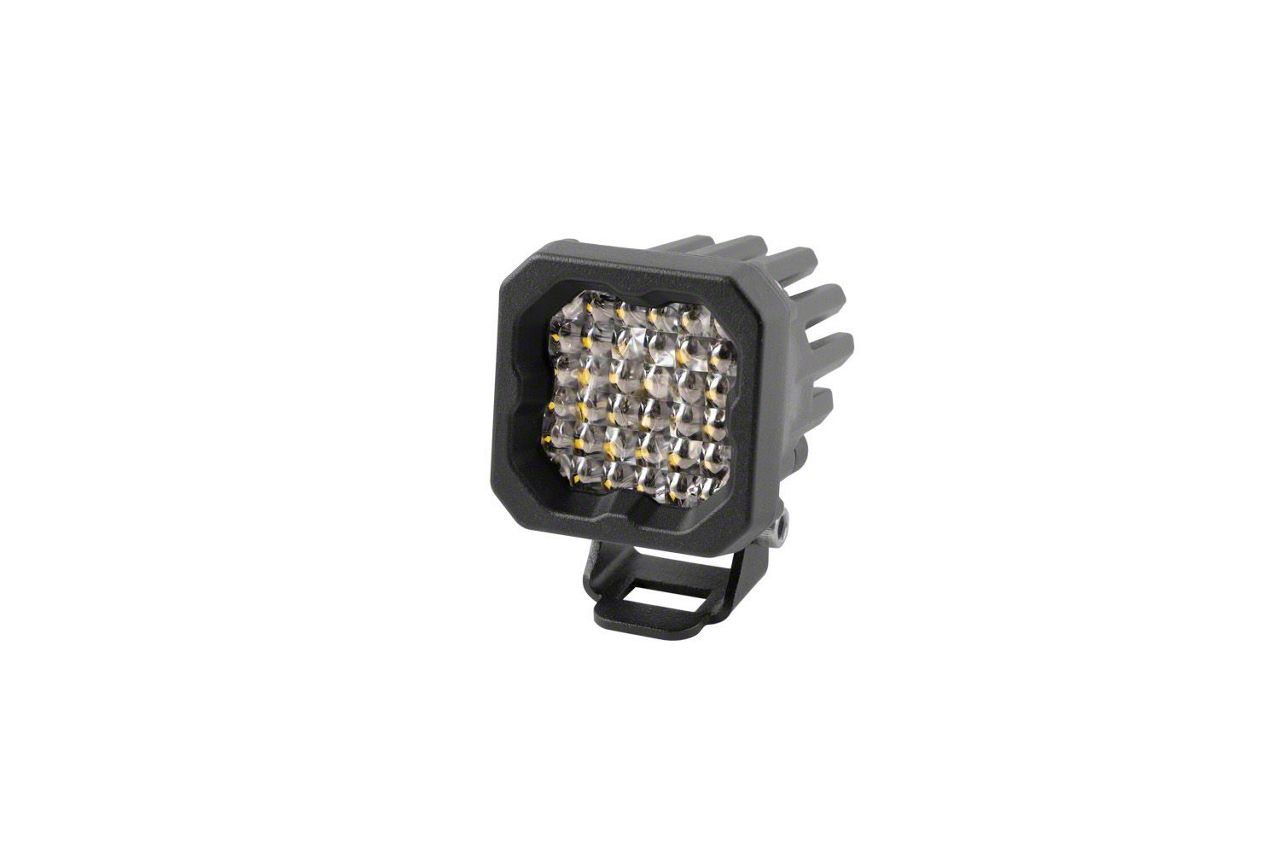

Diode Dynamics Stage Series C1R Standard LED Pod Light; White Flood (Universal; Some Adaptation May Be Required)
Item JG20783
Our Price
$159.95
Military, Medical & First Responders
$8.00 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Ultra-Compact, Single-LED Form Factor _x000D_
- Triple Function: High-Power White Main Beam, High-Power Red Main Beam, and Low-Power Red Accent Light _x000D_
- Pin-Fin Heatsink Design for Superior Thermal Dissipation _x000D_
- Integrated Deutsch-Style Connector _x000D_
- Designed, Torture-Tested, and Assembled in the USA _x000D_
- Custom-Engineered TIR Optics for Focused Light Output _x000D_
- Flood Beam Pattern with 50x50 Degree Spread for Uniform Illumination _x000D_
- Can Be Mounted Virtually Anywhere with Multiple Mounting Options _x000D_
- Interchangeable Lens for Different Beam Patterns or Colors _x000D_
- Simple 4-Pin Wiring with Color-Coded Leads _x000D_
- Tested for Extreme Conditions Including Temperature, Vibration, Moisture, and Corrosion to SAE Standards _x000D_
- Snap-On Covers Available for Protection Against Dirt and Debris _x000D_
- Raw Lumens: 1450 lm _x000D_
- Color Temperature (CCT): 6000K _x000D_
- Power: 15 Watts _x000D_
- Operating Voltage: 9-16V _x000D_
- Polarity Specific _x000D_
- Operating Temperature Range: -40°C to 85°C (-40°F to 185°F) _x000D_
- Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket _x000D_
- Passive Cooling with Pin-Fin Heatsink _x000D_
- Compliance Ratings: SAE J575 Durability Test _x000D_
- IP69K Waterproof Rating with High-Pressure Intrusion Resistance _x000D_
- Unit Weight: 0.175 lb _x000D_
- Product Weight: 0.325 lb _x000D_
- Shipped Weight: 0.4 lb _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Bulb Type | LED |
| Light Shape | Square |
| Light Size | 3 to 3.75 Inch |
Description
Compact Versatile Lighting. The Diode Dynamics Stage Series C1R Standard LED Pod Light; White Flood is a high-performance, multi-function LED pod designed for versatile automotive lighting applications. It provides a powerful white flood beam along with high-power and low-power red lighting functions, ideal for use as a reverse light, running light, or brake light. Its compact design allows installation in tight spaces on cars, trucks, motorcycles, or UTVs where larger lights cannot fit.
_x000D__x000D_Construction and Appearance. This LED pod features a durable polycarbonate lens encased in a robust aluminum housing with a rubber gasket for moisture sealing. The pin-fin heatsink ensures superior thermal management, all finished in a sleek, industrial appearance that stands up to extreme weather and road conditions.
_x000D__x000D_Installation. Installation is straightforward and typically requires 30 to 60 minutes using basic hand tools. The universal mounting bracket and included hardware simplify mounting without the need for complex modifications or drilling in most cases.
_x000D__x000D_Warranty. This product is backed by a limited lifetime warranty, ensuring long-term reliability and support.
_x000D__x000D_Application. Fits universal; some adaptation may be required for specific mounting locations or vehicle types.
Diode Dynamics DD7423S
