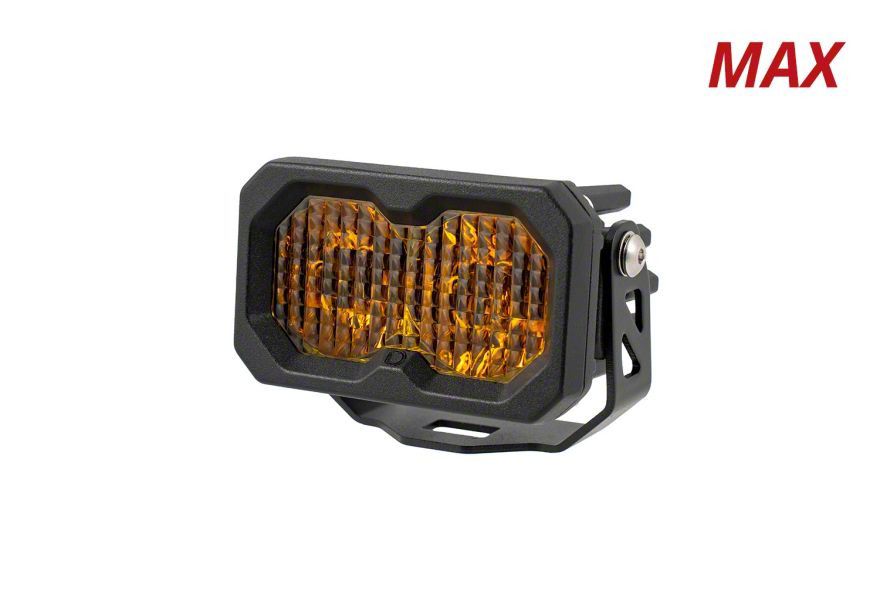

Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight; Yellow Combo/Driving (Universal; Some Adaptation May Be Required)

Item JG58751
Product Image
Our Price

$239.95

Military, Medical & First Responders $12.00 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Ultra-Compact Design for Tight Mounting Spots
        • _x000D_
      • Patented TIR Optics for Maximum Output
        • _x000D_
      • Up to 95% More Power Than C2 1.0
        • _x000D_
      • Available in Sport, Pro, and 3900-Lumen Max Power Levels
        • _x000D_
      • Customizable Mounting to Dial in Your Setup
        • _x000D_
      • Link Multiple Pods with CrossLink Technology
        • _x000D_
      • Limited Lifetime Warranty
        • _x000D_
      • Made in USA with Global Materials
        • _x000D_
      • Raw Lumens: 3,960
        • _x000D_
      • Color Temperature (CCT): 3000K
        • _x000D_
      • Power (Watts): Main Beam: 30, Backlight: 0.38
        • _x000D_
      • Operating Voltage: 9-30V
        • _x000D_
      • Current (Amps @ 12.8V): Main Beam: 2.3, Backlight: 0.03
        • _x000D_
      • Polarity: Polarity Specific
        • _x000D_
      • Operating Temperature: -40°C to 85°C (-40°F to 185°F)
        • _x000D_
      • LED Emitter: Osram Boost HX
        • _x000D_
      • Connector(s): Deutsch DT Input
        • _x000D_
      • Driver Features: Constant Current
        • _x000D_
      • Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
        • _x000D_
      • Cooling: Passive, Pin-Fin Heatsink
        • _x000D_
      • Compliance Ratings: SAE J575 Durability Test
        • _x000D_
      • Intrusion Ratings: IP69K Waterproof, High Pressure
        • _x000D_
      • Product Dimensions (Inches): 2 x 3.3 x 2.4
        • _x000D_
      • Unit Weight (Lb): 0.55
        • _x000D_
      • Product Weight (Lb): 1.4
        • _x000D_
      • Fits Universal; Some Adaptation May Be Required
        • _x000D_

      Description

      High-Performance LED Pod. The Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight; Yellow Combo/Driving offers a powerful and compact lighting solution designed to enhance visibility in various driving conditions. Ideal for tight mounting spots, it delivers focused and intense light output to improve safety and performance on and off the road. Its amber backlight adds a modern, low-power accent that enhances both aesthetic appeal and visibility.

      _x000D__x000D_

      Construction and Appearance. Crafted from durable aluminum casting with a powder-coated finish, this LED pod incorporates a polycarbonate lens and a rubber gasket to ensure superior durability and weather resistance. The design includes a copper-core circuit board for thermal efficiency and a pin-fin heatsink for passive cooling, providing reliable long-term operation under extreme conditions.

      _x000D__x000D_

      Installation. Installation typically requires 30 to 60 minutes with basic tools. No drilling is usually necessary due to the customizable mounting bracket with multiple adjustment points, allowing for a streamlined and flexible installation process suitable for various vehicle setups.

      _x000D__x000D_

      Warranty. This product includes a limited lifetime warranty, reflecting confidence in its quality and durability.

      _x000D__x000D_

      Application. Fits universal applications; some adaptation may be required to suit specific mounting configurations or vehicle setups.

      Diode Dynamics DD8114S
