Find Light Bars & Off-Road Lighting for your Gladiator

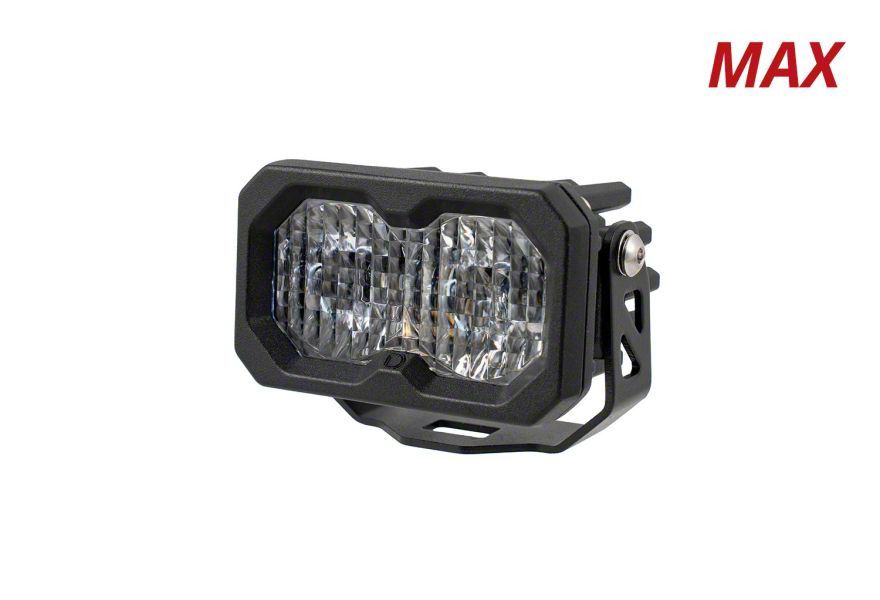

Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight; White Spot (Universal; Some Adaptation May Be Required)
Item JG58759
Our Price
$239.95
Military, Medical & First Responders
$12.00 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Ultra-Compact Design For Tight Mounting Spots _x000D_
- Patented TIR Optics For Maximum Output and Efficiency _x000D_
- Up To 95% More Power Than C2 1.0 _x000D_
- Available In Sport, Pro, And 3900-Lumen Max Power Levels _x000D_
- Customizable Mounting To Dial In Your Setup _x000D_
- Link Multiple Pods With Patent-Pending CrossLink Technology _x000D_
- Limited Lifetime Warranty _x000D_
- Made In USA With Global Materials _x000D_
- Raw Lumens: 3,960 Lm _x000D_
- Color Temperature (CCT): 6000K _x000D_
- Power (Watts): Main Beam: 30, Backlight: 0.38 _x000D_
- Operating Voltage: 9-30V _x000D_
- Current (Amps @ 12.8V): Main Beam: 2.3, Backlight: 0.03 _x000D_
- Polarity Specific _x000D_
- Operating Temperature: -40°C To 85°C (-40°F To 185°F) _x000D_
- LED Emitter: Osram Boost HX _x000D_
- Connector(s): Deutsch DT Input _x000D_
- Driver Features: Constant Current _x000D_
- Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket _x000D_
- Cooling: Passive, Pin-Fin Heatsink _x000D_
- Compliance Ratings: SAE J575 Durability Test _x000D_
- Intrusion Ratings: IP69K Waterproof, High-Pressure Wash Resistant _x000D_
- Product Dimensions (In): 2 x 3.3 x 2.4 _x000D_
- Unit Weight (Lb): 0.55 _x000D_
- Product Weight (Lb): 1.4 _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Bulb Type | LED |
| Light Shape | Rectangle |
| Light Size | 3 to 3.75 Inch |
Description
Powerful Compact Lighting. The Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight and White Spot delivers intense illumination from an ultra-compact 2-inch pod, ideal for tight mounting locations like roof racks or A-pillars. Engineered for versatility, it features advanced patented optics and high-output LEDs to ensure precise lighting performance in a functional and stylish design.
_x000D__x000D_Construction and Appearance. This LED pod is constructed with a durable aluminum casting housing, finished with a powder coat to enhance heat dissipation and resist corrosion. The lens is impact-resistant polycarbonate, sealed with a rubber gasket to provide an IP69K waterproof rating, guaranteeing dependable performance under extreme weather and cleaning conditions.
_x000D__x000D_Installation. Installation typically requires 30 to 60 minutes using basic hand tools, without the need for complex modifications. The mounting system is customizable, allowing for adjustable positioning to achieve optimal light aiming, often without additional drilling.
_x000D__x000D_Warranty. This product includes a limited lifetime warranty, demonstrating the manufacturer's commitment to quality and long-term reliability.
_x000D__x000D_Application. Designed for universal fitment, although some adaptation may be necessary depending on vehicle specifications and mounting location.
Diode Dynamics DD8118S
