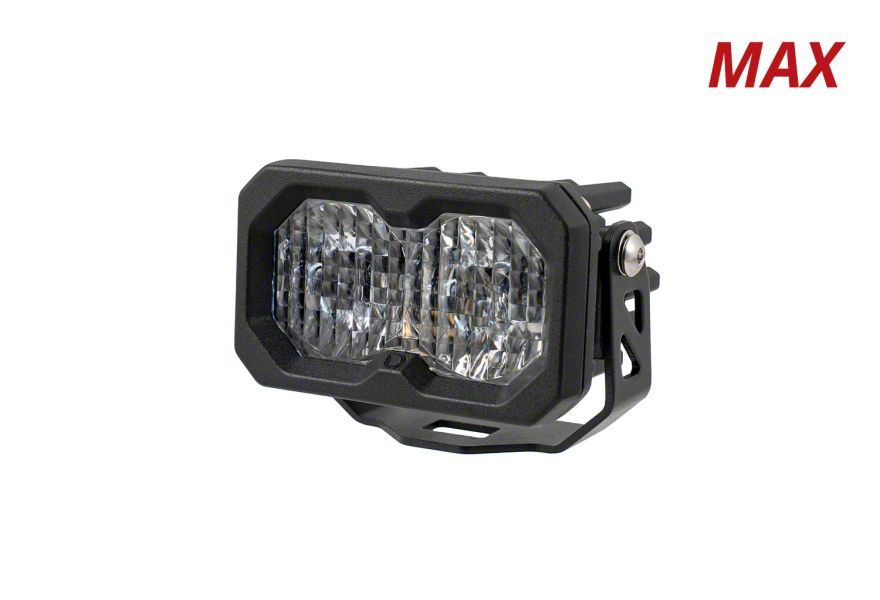

Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight; White SAE Fog/Wide (Universal; Some Adaptation May Be Required)
Item JG58787
Our Price
$239.95
Military, Medical & First Responders
$12.00 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Ultra-Compact Design For Tight Mounting Spots _x000D_
- Patented TIR Optics For Maximum Output _x000D_
- Up To 95% More Power Than C2 1.0 _x000D_
- Available In Sport, Pro, And New 3900-Lumen Max Power Levels _x000D_
- Customizable Mounting To Dial In Your Setup _x000D_
- Link Multiple Pods With CrossLink Technology _x000D_
- Limited Lifetime Warranty _x000D_
- Made In USA With Global Materials _x000D_
- Raw Lumens: 3,960 Lm _x000D_
- Color Temp (CCT): 6000K _x000D_
- Power (Watts): Main Beam 30, Backlight 0.38 _x000D_
- Operating Voltage: 9-30V _x000D_
- Current (Amps @ 12.8V): Main Beam 2.3, Backlight 0.03 _x000D_
- Polarity Specific _x000D_
- Operating Temperature: -40C To 85C (-40F To 185F) _x000D_
- LED Emitter: Osram Boost HX _x000D_
- Connector(s): Deutsch DT Input _x000D_
- Driver Features: Constant Current _x000D_
- Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket _x000D_
- Cooling: Passive, Pin-Fin Heatsink _x000D_
- Compliance Ratings: SAE J575 Durability Test _x000D_
- Intrusion Ratings: IP69K Waterproof, High Pressure _x000D_
- Product Dimensions (In): 2 X 3.3 X 2.4 _x000D_
- Unit Weight (Lb): 0.55 _x000D_
- Product Weight (Lb): 1.4 _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Bulb Type | LED |
| Light Shape | Rectangle |
| Light Size | 3 to 3.75 Inch |
Description
Advanced LED Lighting. The Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight; White SAE Fog/Wide delivers exceptional brightness with a compact 2-inch size, providing 3,960 raw lumens. Designed to provide focused illumination for fog and wide-area lighting, it enhances visibility in challenging conditions while offering a modern aesthetic with its amber backlight feature.
_x000D__x000D_Construction and Appearance. This LED pod is crafted with a durable aluminum casting and features a polycarbonate lens designed for durability and clear light transmission. The housing is powder-coated for enhanced heat dissipation and a long-lasting finish, complemented by a rubber gasket ensuring moisture resistance and an IP69K waterproof rating for extreme weather protection.
_x000D__x000D_Installation. Installation of this compact pod is straightforward and suitable for various mounting locations such as roof racks or bumpers. Basic tools are required, with no special drilling beyond standard mounting bracket provisions typically necessary.
_x000D__x000D_Warranty. This product includes a limited lifetime warranty to ensure reliable performance and customer satisfaction.
_x000D__x000D_Application. Fits universal mounting applications; some adaptation may be required to accommodate specific vehicle configurations or mounting preferences.
Diode Dynamics DD8240S
