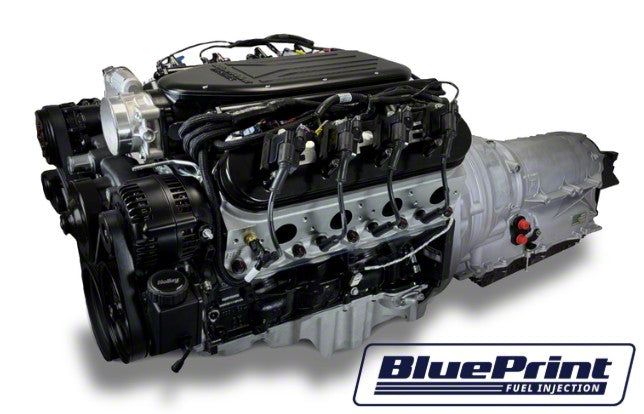

BluePrint Engines Standard Edition Builder Series GM LS 376 C.I. 510 HP Crate Engine and ZF-8 Speed Automatic Transmission with Calibrated ECU and Holley Mid Mount Black Pulley Kit
Item U68139-XT
New
Our Price
$20,799.00
Military, Medical & First Responders
$1,039.95 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- 510 Horsepower / 440 Ft. Lbs. Torque
- BluePrint Engines Aluminum Cylinder Heads
- 10.7:1 Compression Ratio
- Hydraulic Roller Cam - .612 Intake / .585 Exhaust Lift And 225 Intake / 238 Exhaust Duration @ .050 – 113 LSA
- Hypereutectic Pistons - Flat - 2cc
- Nodular Iron Crankshaft – 4.125 Inch Stroke And Forged I-Beam 6.125 Inch Rods
- BluePrint Engines Complete Engine Harness And ECU Kit
- Fuel Recommendation 91 Plus Octane
- Requires BluePrint Engines Electronic Shifter (Included)
- BluePrint Engines High Strength Cast Iron Lsx Style Block
- Increased Deck Thickness And Strength Webbing
- Utilizes OEM LS3 Front And Rear Covers
- Improved Water Jacket Design
- Extended Cylinder Skirt
- 1-Piece Rear Main Seal
- Priority Main Oiling
- 4.0662 Inch Bore
- 6-Bolt Main
- Forged I-Beam 6.125 Inch Connecting Rods
- Internally Balanced Front And Rear
- BluePrint Aluminum Cylinder Heads PS8015
- 69cc Chamber
- 2.165 Inch Intake / 1.590 Inch Exhaust Valves
- 259cc Intake / 102cc Exhaust Runners
- BluePrint Engines Cast Aluminum Intake Manifold
- LS Swap Oil Pan with Windage Tray and Pickup Screen
- BluePrint Engines Fuel Injectors And Rail
- DBW Throttle Body BPP12191019
- Throttle Pedal And Sensors
- Spark Plugs And Wires
- Harmonic Balancer
- Custom Shifter
- Coil Packs
- Black Pulley Kit with LT1 Style Water Pump, LT1 Style 150-Amp Alternator, Compact Style Air Conditioning Compressor, and Type II Power Steering Pump
- Fully Electronic Modern Shifting Strategy
- Maintenance Free For The Life Of The Vehicle
- Fully Calibrated ECU
- Manual Mode
- Shift Times Of 0.2 Seconds
- Transmission Gear Ratios: First 4.70, Second 3.13, Third 2.10, Fourth 1.67, Fifth 1.29, Sixth 1.0, Seventh 0.84, Eighth 0.64
- BPE Electronic Shifter Included
- Bell Housing Included
- Transmission Crossmember Mount Included
- Park Pawl Release Handle Included
- 1350 U-Joint Yoke Included for Easy Driveshaft Selection Without Flange Adapters
- Retro Fit Oil Pan Fits Most 1955-1995 GM Front Engine, RWD, V8 Cars
- Not For Use In Pollution-Controlled Vehicles Or Dry Sump Applications
- Engine And Transmission Package Ships Fully Assembled
- Fits GM LS-Style V8 Engine Applications
Description
Turnkey High-Performance Powertrain. The BluePrint Engines Standard Edition Builder Series GM LS 376 C.I. 510 HP Crate Engine and ZF-8 Speed Automatic Transmission with Calibrated ECU and Holley Mid Mount Black Pulley Kit deliver robust 510 horsepower and 440 ft-lbs torque through a fully integrated engine and transmission package. Designed for pro-touring builds, restomods, and high-performance street machines, this turnkey solution ensures seamless operation and superior drivability with modern electronics and transmission technology.
Construction and Appearance. Crafted from a high-strength cast iron LSX-style block with increased deck thickness and strengthened webbing, the engine features BluePrint’s precision-balanced nodular iron crankshaft and forged I-beam rods for durability. Finished with BluePrint's blue aluminum heads and a black mid-mount pulley kit, the package offers durability combined with a refined, purposeful aesthetic. The ZF 8-speed transmission features lightweight internals and a modern electronic shifting strategy enclosed within a robust bell housing and transmission mounts.
Installation. This complete bolt-in package includes all necessary hardware such as the bell housing, electronic shifter, and custom crossmember mount for a straightforward installation. The package is designed to minimize modifications, making it suitable for professional installations and experienced DIYers seeking a high-performance swap.
Warranty. Backed by a standard 30-month or 50,000-mile warranty covering parts and labor, this engine package provides peace of mind and confidence in its quality and performance.
Application. Engineered to fit GM LS-compatible V8 applications with compatibility for most 1955-1995 GM front engine, rear-wheel-drive vehicles equipped with V8 engines. Not recommended for pollution-controlled or dry sump systems.
BluePrint Engines BLS37681KBZF
