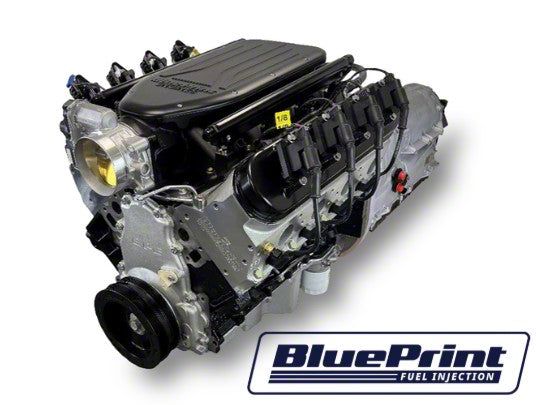

BluePrint Engines Standard Edition Builder Series GM LS 376 C.I. 510 HP Crate Engine and ZF-8 Speed Automatic Transmission with Calibrated ECU
Item U68137-XT
New
Our Price
$17,999.00
Military, Medical & First Responders
$899.95 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- 510 Horsepower / 440 Ft. Lbs. Torque
- BluePrint Engines Aluminum Cylinder Heads
- Compression Ratio 10.7:1
- Hydraulic Roller Camshaft With .612 Intake / .585 Exhaust Lift And 225 Intake / 238 Exhaust Duration @ .050, And 113 Degree Lobe Separation Angle
- Hypereutectic Flat Pistons With 2cc Dish
- Nodular Iron Crankshaft With 3.622" Stroke
- Forged I-Beam Connecting Rods 6.125" Length
- BluePrint Engines Complete Engine Harness And ECU Kit Included
- Requires 91+ Octane Fuel
- Requires BluePrint Engines Electronic Shifter
- High Strength Cast Iron LSX Style Block
- Increased Deck Thickness And Strength Webbing
- OEM LS3 Front And Rear Covers
- Improved Water Jacket Design
- Extended Cylinder Skirt
- 1-Piece Rear Main Seal
- Priority Main Oiling
- 4.0662" Bore
- 6-Bolt Main Caps
- BluePrint Aluminum Cylinder Heads With 69cc Chamber
- 2.165" Intake Valves, 1.590" Exhaust Valves
- 259cc Intake And 102cc Exhaust Runners
- BluePrint Engines Cast Aluminum Intake Manifold
- LS Swap Oil Pan With Windage Tray And Pick Up Screen
- DBW 87mm LS Based Drive-By-Wire Throttle Body
- Throttle Pedal And Sensors Included
- Spark Plugs And Wires
- Harmonic Balancer Non-Weighted
- Custom Shifter And Coil Packs Included
- ZF 8-Speed Automatic Transmission With Fully Electronic Modern Shifting Strategy
- Maintenance Free For Life Of Vehicle
- Manual Mode With 0.2 Second Shift Times
- Transmission Gear Ratios: 4.70, 3.13, 2.10, 1.67, 1.29, 1.0, 0.84, 0.64
- Includes Bell Housing, Transmission Crossmember Mount, Park Pawl Release Handle, And 1350 U-Joint Yoke
- Flywheel, Flexplate, And Harmonic Balancer Are Non-Weighted
- Engine Control And Transmission Management Are OEM Level
- Fuel Injectors And Fuel Rail Included
- Fits Most 1955-1995 GM Front Engine Rear Wheel Drive V8 Cars Using Retro Fit Oil Pan
Description
Turnkey Powertrain Package. The BluePrint Engines Standard Edition Builder Series GM LS 376 C.I. 510 HP Crate Engine and ZF-8 Speed Automatic Transmission with Calibrated ECU combines a powerful LS-compatible 376 cubic inch engine with a modern ZF 8-speed automatic transmission for a complete turnkey powertrain solution. Designed for restomods, pro-touring builds, and high-performance street applications, this package delivers 510 horsepower and 440 lb-ft of torque on pump gas while offering advanced OEM-level engine and transmission management. The integration ensures exceptional performance and reliability in a ready-to-install configuration.
Construction and Appearance. This engine features a durable high-strength cast iron LSX-style block with increased deck thickness and reinforced webbing for durability. The aluminum cylinder heads provide efficient airflow with large 259cc intake runners and 69cc chambers, paired with a hydraulic roller camshaft optimized for performance. Hypereutectic pistons and forged I-beam rods ensure strength and longevity. The package includes a lightweight, non-weighted harmonic balancer and flexplate. The controllable ZF transmission offers fully electronic, maintenance-free operation with a sleek, modern design suitable for various builds.
Installation. This engine and transmission package is designed for installation in compatible GM front engine, rear-wheel-drive V8 vehicles from 1955 to 1995 using the provided retrofit oil pan. While generally fitting most applications, some minor vehicle-specific adaptations may be needed depending on the install environment.
Warranty. This product includes an industry-leading 30-month or 50,000-mile standard warranty covering parts and labor, which is fully transferable for long-term peace of mind.
Application. Fits most 1955-1995 GM front engine, rear-wheel-drive V8 cars using the provided retrofit oil pan. Not intended for pollution-controlled vehicles or dry sump applications.
BluePrint Engines BLS3768ZF
