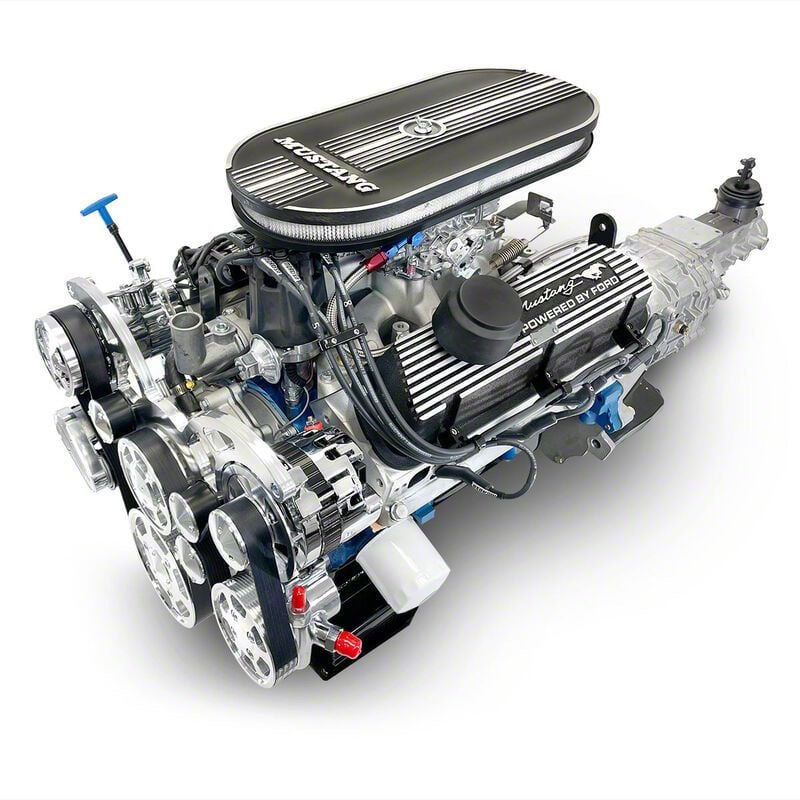

BluePrint Engines Mustang Edition Builder Series Small Block Ford 347 C.I. 415 HP Carbureted Crate Engine and TKX Manual Transmission with Polished Pulley Kit
Item U19339-XT
Our Price
$18,599.00
Military, Medical & First Responders
$929.95 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- 415 Horsepower / 415 Ft. Lbs. Torque
- 10:1 Compression Ratio
- Aluminum Cylinder Heads
- Hydraulic Roller Camshaft With .543 Intake Lift / .554 Exhaust Lift And 218 Intake Duration / 226 Exhaust Duration At .050
- Cast Crankshaft With 3.400" Stroke
- Forged Pistons
- Forged 5.400" Connecting Rods
- BluePrint High Strength Cast Iron Block With Increased Deck Thickness And Strength Webbing
- Priority Main Oiling System
- 4.000" Bore
- Four-Bolt Main Bearings
- One-Piece Rear Main Seal
- Improved Water Jacket Design
- 60cc Chamber Aluminum Heads With 2.02" Intake Valves And 1.60" Exhaust Valves, 190cc Intake Runners
- Holley 600 CFM Street Warrior Carburetor
- Dual Plane Satin Aluminum Intake Manifold
- Pro Billet Distributor
- 7 Quart Oil Pan
- Electric Fuel Pump
- Thermostat And Thermostat Housing
- Polished Front Accessory Drive Including Water Pump, Power Steering Pump, Alternator, And Air Conditioning Compressor
- Mcleod Super Street Pro Single Disk Clutch With Hydraulic Throw Out Bearing
- Aluminum Bell Housing
- Flywheel And Engine Guard Included
- Starter Included
- Five-Speed TKX Manual Transmission With Gear Ratios: 2.87:1, 1.89:1, 1.28:1, 1.00:1, 0.81:1
- Fuel Recommendation: 91+ Octane
- Fits Mustang Edition Applications — fitment should be verified for specific models, including Factory Five or other chassis, to ensure compatibility
Description
High-Performance Engine Package. The BluePrint Engines Mustang Edition Builder Series Small Block Ford 347 C.I. 415 HP Carbureted Crate Engine and TKX Manual Transmission with Polished Pulley Kit delivers impressive power and torque in a complete package ideal for enthusiasts seeking a reliable performance upgrade. It provides a balanced combination of horsepower and torque suited for street or light racing use, with a matching manual transmission included for optimized drivability.
Construction and Appearance. This engine features a high-strength cast iron block with reinforced deck thickness and strength webbing for durability. The rotating assembly consists of forged pistons and forged connecting rods with a cast crankshaft stroked at 3.400". BluePrint’s aluminum cylinder heads are designed with large intake valves and runners promoting efficient airflow. The entire assembly is finished with a polished front accessory drive and satin aluminum intake manifold for a clean, professional appearance.
Installation. Installation requires careful measurements to ensure proper fitment, particularly for front accessory drive components. While drilling is generally not necessary, some vehicle-specific adjustments such as wiring and hose routing may be required.
Warranty. This engine package is covered by a 30-month or 50,000-mile warranty inclusive of parts and labor, providing confidence in quality and reliability.
Application. Designed as a Mustang Edition Builder Series package, fitment should be confirmed for the specific Mustang application intended. Customers should verify fitment details especially for Factory Five vehicles or other chassis to ensure compatibility.
BluePrint Engines B347KTKXM
