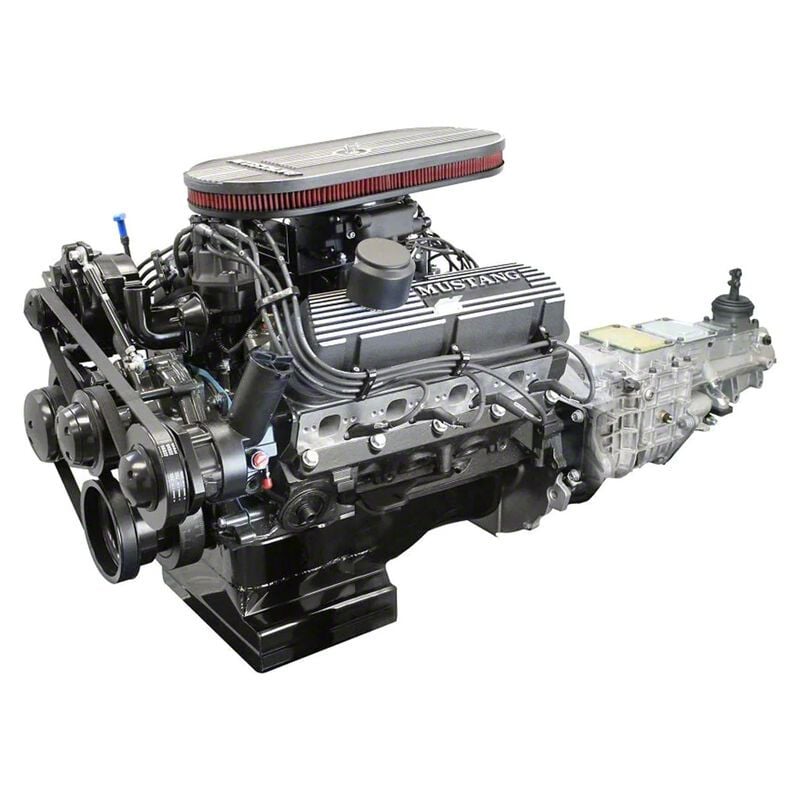

BluePrint Engines Mustang Edition Builder Series Small Block Ford 347 C.I. 415 HP Carbureted Crate Engine and TKX Manual Transmission with Black Pulley Kit
Item U19338-XT
Our Price
$18,699.00
Military, Medical & First Responders
$934.95 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- 415 Horsepower / 415 Ft. Lbs. Torque
- 10:1 Compression Ratio
- BluePrint Engines Aluminum Cylinder Heads with 60cc Chambers
- Hydraulic Roller Camshaft with .543 Intake / .554 Exhaust Lift and 218 Intake / 226 Exhaust Duration @ .050
- 112 Degree Lobe Separation Angle
- Forged Pistons
- Cast Crankshaft with 3.400" Stroke
- Forged Connecting Rods Measuring 5.400"
- 91+ Octane Fuel Recommendation
- High Strength Cast Iron Block with Increased Deck Thickness and Strength Webbing
- Priority Main Oiling System
- 4.000" Bore Diameter
- 4-Bolt Main Bearing Caps
- 1-Piece Rear Main Seal
- Improved Water Jacket Design for Enhanced Cooling
- 28oz Externally Balanced Front and Rear Components
- 2.02" Intake and 1.60" Exhaust Valves
- 190cc Intake and 60cc Exhaust Runners
- 34 Degrees Total Ignition Timing at 3500 RPM
- Holley 600 CFM Street Warrior Carburetor Included
- Mustang Style Valve Covers
- Thermostat and Thermostat Housing Included
- Dual Plane Satin Aluminum Intake Manifold
- Pro Billet Distributor
- 7 Quart Oil Pan
- Black Electric Fuel Pump
- Black Front Accessory Drive Including Standard Rotation Water Pump, Power Steering Pump with Remote Reservoir, 140 Amp Alternator, and Air Conditioning Compressor
- Complete TKX Manual Transmission Package with Mcleod Super Street Pro Single Disk Clutch, Hydraulic Throw Out Bearing, Aluminum Bell Housing, Flywheel, Engine Guard, and Starter
- Five-Speed Manual Transmission Gear Ratios: 2.87:1, 1.89:1, 1.28:1, 1.00:1, 0.81:1
- Fits Many Vehicles but Customer Must Verify Front Accessory Drive Clearance and Potential Additional Fabrication Required
Description
High-Performance Crate Engine. The BluePrint Engines Mustang Edition Builder Series Small Block Ford 347 C.I. 415 HP Carbureted Crate Engine and TKX Manual Transmission with Black Pulley Kit delivers robust power and reliable torque, designed for performance enthusiasts seeking an upgraded engine package. This complete engine and transmission set provides a turnkey solution for serious rebuilds or powerful vehicle upgrades, offering ease of installation and enhanced driving dynamics.
Construction and Appearance. Built on a high strength cast iron block with increased deck thickness and strength webbing, the engine features forged pistons and connecting rods with a cast crankshaft. The aluminum cylinder heads feature 60cc chambers with large 2.02” intake and 1.60” exhaust valves and optimized intake and exhaust runners for improved airflow. Finished with a satin black front accessory drive and Mustang-style valve covers, the assembly presents a durable yet refined appearance suited for modern performance builds.
Installation. Installation is straightforward for experienced mechanics. Fitment checks and potential minor adjustments for power steering hoses, wiring, or clearance may be necessary depending on the vehicle due to the low-profile front accessory drive design.
Warranty. This engine and transmission package is covered by a 30-month or 50,000-mile warranty on parts and labor, providing peace of mind with quality assurance.
Application. Fits a wide range of vehicles equipped for Small Block Ford engines; however, customers should confirm fitment specifics, especially regarding front accessory drive clearance and associated hardware requirements. For Factory Five vehicles, direct consultation with the manufacturer is recommended to ensure proper fitment.
BluePrint Engines B347KBTKXM
