Find Light Bars & Off-Road Lighting for your Titan XD

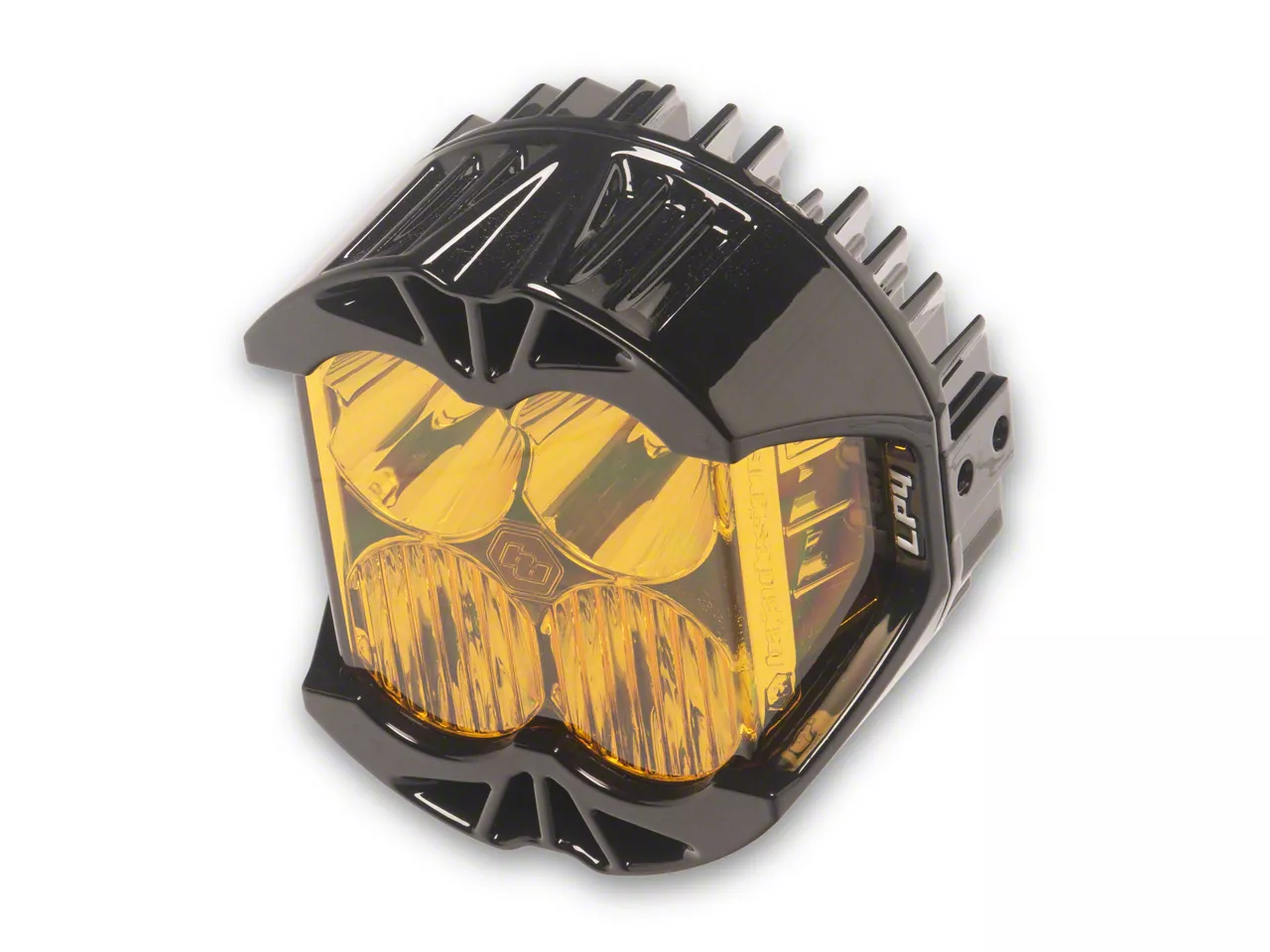

Baja Designs LP4 Pro LED Auxiliary Light Pod with Amber Backlight; Driving/Combo Beam; Amber (Universal; Some Adaptation May Be Required)
Item NTX11959
Our Price
$437.95 each
Military, Medical & First Responders
$21.90 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Mounting Hardware Material Stainless Steel _x000D_
- Overvoltage Protection Built-In _x000D_
- Product Type LP4 Pro LED Light Pod _x000D_
- Secondary Amperage Rating 1.000 A _x000D_
- Secondary Brightness 1972 Lumens _x000D_
- Secondary Light Quantity 4 LEDs _x000D_
- Secondary Lighting Technology LED _x000D_
- Secondary Lighting Type Integrated Peripheral Technology (IPT) _x000D_
- Secondary Wattage 15 W _x000D_
- Terminal Connector DT06-4S Deutsch _x000D_
- Terminal Type Mating Connector _x000D_
- Universal Or Specific Universal _x000D_
- Wattage 75.9 W _x000D_
- Wiring Harness Included No _x000D_
- Amperage Rating 5.5 A _x000D_
- Average Rated Life 49930 Hr _x000D_
- Backlight Amperage Rating 0.35 A _x000D_
- Backlight Wattage 4.83 W _x000D_
- Beam Pattern Driving/Combo _x000D_
- Bezel Material Powder Coat Cast Aluminum _x000D_
- Brightness 8857 Lumens _x000D_
- Description Driving/Combo Amber _x000D_
- Housing Color Black _x000D_
- Housing Material Powder Coat Cast Aluminum _x000D_
- Lens Color Amber _x000D_
- Lens Material Hardcoated Polycarbonate _x000D_
- Light Quantity 1 _x000D_
- Lighting Modes Beam Day-Time Running Backlighting _x000D_
- Lighting Quantity 4 _x000D_
- Lighting Technology LED _x000D_
- Lighting Type Forward Projecting _x000D_
- Mounting Hardware Included Yes _x000D_
- Standards Compliance Durability Exceeds MIL-STD810G _x000D_
- Standards Compliance Impact Resistance IK10 Compliant _x000D_
- Standards Compliance Water Resistance IP69K Waterproof Up To 9 ft, Pressure Washable _x000D_
- Depth 3.2 In _x000D_
- Height 5.1 In _x000D_
- Length 5.1 In _x000D_
- Weight 2.8 Lbs _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Baja Designs |
| Bulb Type | LED |
| Light Shape | Square |
| Light Size | 5 to 5.75 Inch |
Description
High Performance Lighting. The Baja Designs LP4 Pro LED Auxiliary Light Pod with Amber Backlight and Driving/Combo Beam is a compact, powerful auxiliary light designed for off-road and show applications. It delivers intense forward and peripheral illumination with a combination beam pattern, enhancing visibility and vehicle presence. This light is ideal for off-road enthusiasts seeking superior lighting performance and distinctive customization.
_x000D__x000D_Construction and Appearance. Constructed from powder-coated cast aluminum, the housing offers excellent durability and corrosion resistance. The hardcoated polycarbonate lens provides scratch resistance and impact protection, while the black finish delivers a sleek, modern look that complements any vehicle. The amber lens contributes both functional lighting benefits and unique style.
_x000D__x000D_Installation. Installation is straightforward with included stainless steel mounting hardware and a mating Deutsch connector. Minor adaptation may be required depending on the vehicle setup, but no major modifications such as drilling are typically necessary.
_x000D__x000D_Warranty. This product is backed by a lifetime limited warranty for long-lasting peace of mind. Application. It fits universally with some adaptation, making it suitable for a wide range of vehicles without specific restrictions.
Baja Designs 290013
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) LED Light
