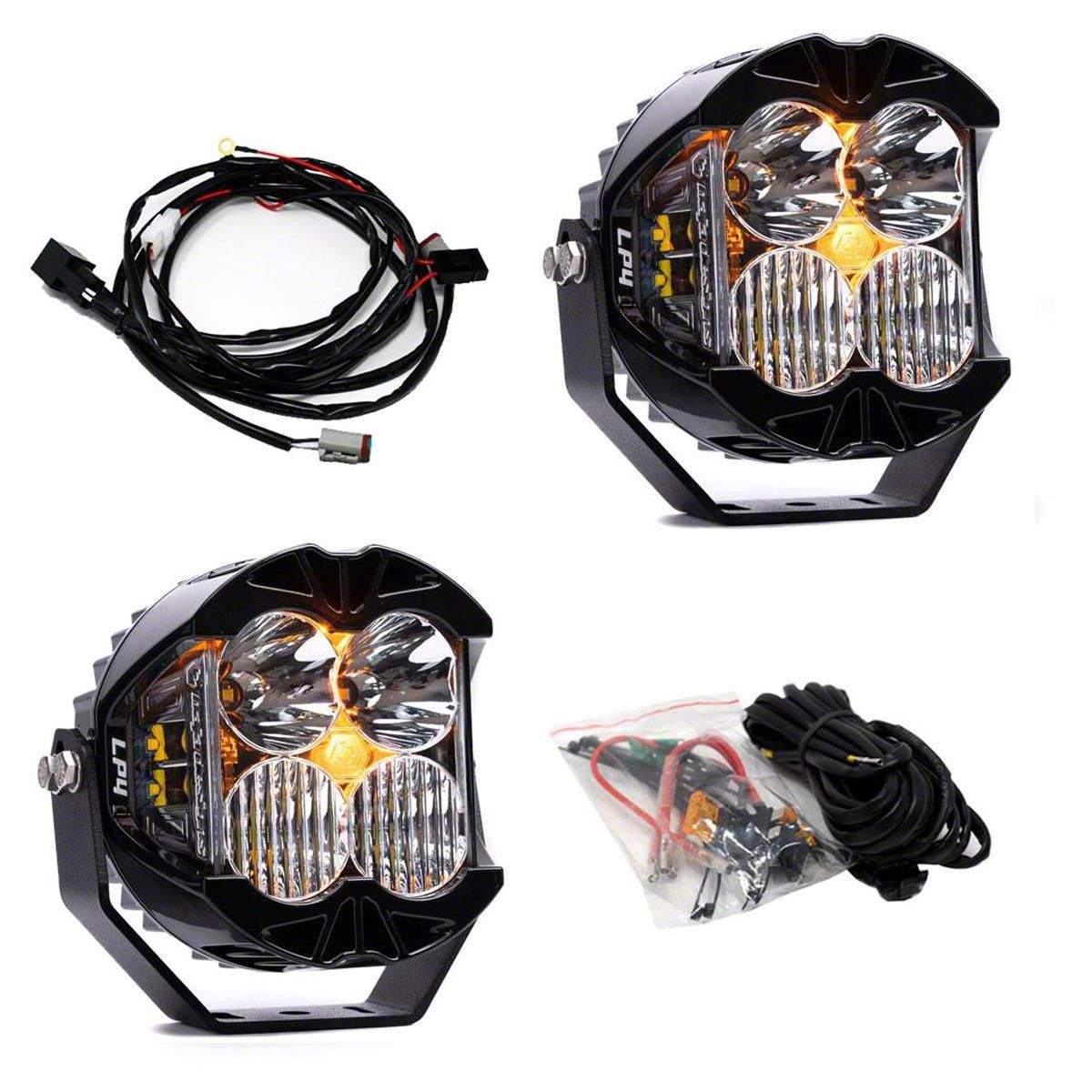

Baja Designs LP4 Pro LED Auxiliary Light Pods with Amber Backlight; Driving/Combo Beam; Amber (Universal; Some Adaptation May Be Required)

Item JG28473
Product Image
162 Reviews of Baja Designs
Our Price

$875.95 pair

Military, Medical & First Responders $43.80 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Mounting Hardware Material: Stainless Steel
        • _x000D_
      • Overvoltage Protection: Built-In
        • _x000D_
      • Product Type: LP4 Pro LED Light Pod Pair with Wiring Harness
        • _x000D_
      • Secondary Amperage Rating: 1 Amp
        • _x000D_
      • Secondary Brightness: 1,972 Lumens
        • _x000D_
      • Secondary Light Quantity: 4 LEDs
        • _x000D_
      • Secondary Lighting Technology: LED
        • _x000D_
      • Secondary Lighting Type: Integrated Peripheral Technology (IPT)
        • _x000D_
      • Secondary Wattage: 15 Watts
        • _x000D_
      • Terminal Connector: DT06-4S Deutsch
        • _x000D_
      • Terminal Type: Mating Connector
        • _x000D_
      • Universal: Yes
        • _x000D_
      • Wattage: 75.9 Watts
        • _x000D_
      • Wiring Harness Included: Yes
        • _x000D_
      • Amperage Rating: 5.5 Amps
        • _x000D_
      • Average Rated Life: 49,930 Hours
        • _x000D_
      • Backlight Amperage Rating: 0.35 Amps
        • _x000D_
      • Backlight Wattage: 4.83 Watts
        • _x000D_
      • Beam Pattern: Driving Combo
        • _x000D_
      • Bezel Material: Powder-Coated Cast Aluminum
        • _x000D_
      • Brightness: 8,857 Lumens
        • _x000D_
      • Description: Driving Combo Amber Pair
        • _x000D_
      • Housing Color: Black
        • _x000D_
      • Housing Material: Powder-Coated Cast Aluminum
        • _x000D_
      • Lens Color: Amber
        • _x000D_
      • Lens Material: Hardcoated Polycarbonate
        • _x000D_
      • Light Quantity: 2
        • _x000D_
      • Lighting Modes: Beam, Day-Time Running, Backlighting
        • _x000D_
      • Lighting Technology: LED
        • _x000D_
      • Lighting Type: Forward Projecting
        • _x000D_
      • Mounting Hardware Included: Yes
        • _x000D_
      • Standards Compliance: Durability exceeds MIL-STD810G Mil-Spec Testing
        • _x000D_
      • Standards Compliance: Impact resistance IK10 compliant mechanical impact testing
        • _x000D_
      • Standards Compliance: Water resistance IP69K waterproof up to 9 feet, pressure washable
        • _x000D_
      • Depth: 3.2 Inches
        • _x000D_
      • Height: 5.1 Inches
        • _x000D_
      • Length: 5.1 Inches
        • _x000D_
      • Weight: 2.8 Pounds
        • _x000D_
      • Fits: Universal; some adaptation may be required
        • _x000D_

      Description

      High-Performance Lighting. The Baja Designs LP4 Pro LED Auxiliary Light Pods with Amber Backlight and Driving/Combo Beam deliver powerful illumination designed to enhance visibility in rugged environments. Ideal for off-road enthusiasts and professionals, these lights provide a 200-degree usable spread combining forward and peripheral lighting for comprehensive coverage. The amber backlight adds a distinctive accent for vehicle customization and improved visibility in various conditions.

      _x000D__x000D_

      Durable Construction and Appearance. Crafted from powder-coated cast aluminum, the housing and bezel provide robust protection against harsh conditions. The lens is made from hardcoated polycarbonate, offering resistance to scratches and impacts while maintaining clarity. The black finish delivers a sleek, professional look suitable for any vehicle.

      _x000D__x000D_

      Installation. Installation is straightforward with included stainless steel mounting hardware and a wiring harness. The process requires no drilling, making it accessible for both professionals and experienced DIYers.

      _x000D__x000D_

      Warranty. This product is backed by a limited lifetime warranty, ensuring long-term performance and peace of mind.

      _x000D__x000D_

      Application. Fits universal applications; some adaptation may be required.

      Baja Designs 297813

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 2 Hours

      Difficulty Level:

      Light to Moderate mechanical skill required.

      Installation Guides

      What's in the Box

      • (1) Light
      • (1) Bracket
      • 1/4”-20 bolts (two longer bolts plus remaining hardware for mounting)
      • 3/8” bolt (center bolt)
      • Washers (associated washers for mounting hardware)
      • Deustsch Connector (DT06-4S) (mating connector for back of light)
      • (6) Bolts for LP9 lens bezel
      • (4) Bolts for LP6 & LP4 lens bezel
      • O-ring (properly fitted in housing groove)
      • 64-0172 LP9 Pro Wire Harness (recommended wire harness including switch, relay, connectors, and wire)
      • Relay PN: 4RD 933 332-18
