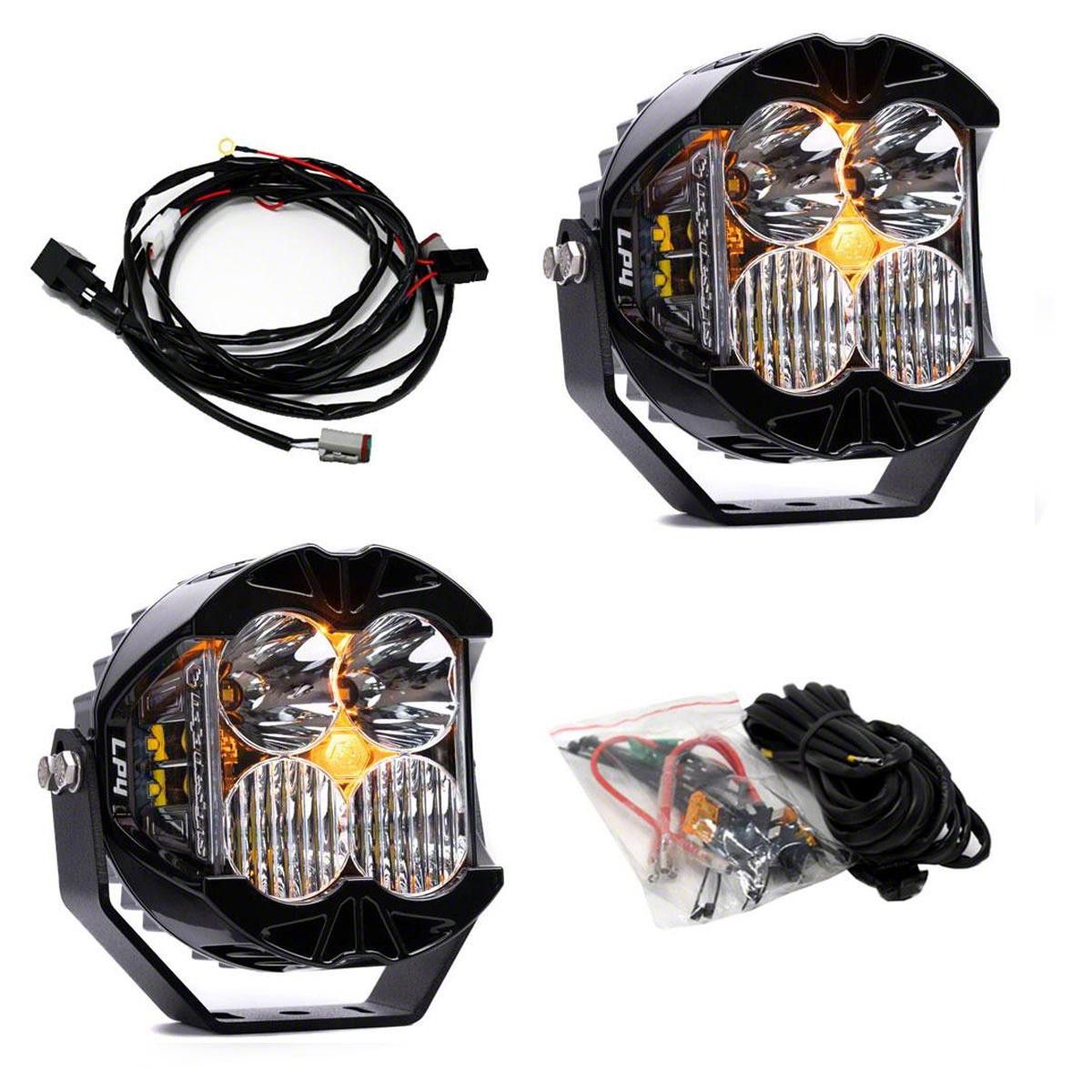

Baja Designs LP4 Pro LED Auxiliary Light Pods with Amber Backlight; Driving/Combo Beam; Clear (Universal; Some Adaptation May Be Required)

Item JG28474
Product Image
162 Reviews of Baja Designs
Our Price

$963.55 pair

Military, Medical & First Responders $48.18 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Overvoltage Protection Built-In
        • _x000D_
      • Product Type LP4 Pro LED Light Pod Pair with Wiring Harness
        • _x000D_
      • Secondary Amperage Rating 1.000 Amp
        • _x000D_
      • Secondary Brightness 1972 Lumens
        • _x000D_
      • Secondary Light Quantity Four LEDs
        • _x000D_
      • Secondary Lighting Technology LED
        • _x000D_
      • Secondary Lighting Type Integrated Peripheral Technology
        • _x000D_
      • Secondary Wattage 15 Watts
        • _x000D_
      • Terminal Connector DT06-4S Deutsch
        • _x000D_
      • Terminal Type Mating Connector
        • _x000D_
      • Universal Or Specific Universal
        • _x000D_
      • Wattage 75.9 Watts
        • _x000D_
      • Wiring Harness Included Yes
        • _x000D_
      • Amperage Rating 5.5 Amps
        • _x000D_
      • Average Rated Life 49,930 Hours
        • _x000D_
      • Backlight Amperage Rating 0.35 Amps
        • _x000D_
      • Backlight Wattage 4.83 Watts
        • _x000D_
      • Beam Pattern Driving Combo
        • _x000D_
      • Bezel Material Powder Coat Cast Aluminum
        • _x000D_
      • Brightness 8857 Lumens
        • _x000D_
      • Description Driving Combo Clear Pair
        • _x000D_
      • Housing Color Black
        • _x000D_
      • Housing Material Powder Coat Cast Aluminum
        • _x000D_
      • Lens Color Clear
        • _x000D_
      • Lens Material Hardcoated Polycarbonate
        • _x000D_
      • Light Quantity Two
        • _x000D_
      • Lighting Modes Beam and Daytime Running Backlighting
        • _x000D_
      • Lighting Technology LED
        • _x000D_
      • Lighting Type Forward Projecting
        • _x000D_
      • Mounting Hardware Included Yes
        • _x000D_
      • Mounting Hardware Material Stainless Steel
        • _x000D_
      • Standards Compliance Durability Exceeds MIL-STD-810G Mil-Spec Testing
        • _x000D_
      • Standards Compliance Impact Resistance IK10 Compliant Mechanical Impact Testing
        • _x000D_
      • Standards Compliance Water Resistance IP69K Waterproof Up to Nine Feet; Pressure Washable
        • _x000D_
      • Depth 3.2 Inches
        • _x000D_
      • Height 5.1 Inches
        • _x000D_
      • Length 5.1 Inches
        • _x000D_
      • Weight 2.8 Pounds
        • _x000D_
      • Fits Universal; Some Adaptation May Be Required
        • _x000D_

      Description

      POWERFUL AUXILIARY LIGHTING. The Baja Designs LP4 Pro LED Auxiliary Light Pods with Amber Backlight and Driving/Combo Beam offer high-performance illumination ideal for off-road, work, and recreational use. Designed for durability and optimal light distribution, these pods combine forward-projecting and peripheral LEDs to provide a wide and intense beam pattern, enhancing visibility in various conditions.

      _x000D__x000D_

      CONSTRUCTION AND APPEARANCE. Crafted with a robust black powder-coated cast aluminum housing, these light pods feature a hardcoated polycarbonate lens for superior impact resistance. The assembly includes stainless steel mounting hardware for secure installation and a sleek, professional finish suited for any vehicle setup.

      _x000D__x000D_

      INSTALLATION. Installation is straightforward with included mounting hardware and a wiring harness, requiring minimal to no drilling depending on the mounting location. The design accommodates universal fitment, allowing easy integration with a wide range of vehicles.

      _x000D__x000D_

      WARRANTY. Backed by a limited lifetime warranty, ensuring long-term protection against defects and performance issues.

      _x000D__x000D_

      APPLICATION. Fits universal; some adaptation may be required.

      Baja Designs 297803

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 1 Hour

      Difficulty Level:

      Light to Moderate mechanical skill required.

      Installation Guides

      What's in the Box

      • (1) Light
      • (1) Bracket
      • (1) Hardware pack
      • (1) 1/4”-20 bolts (two longer bolts plus remaining $1/4" bolts for bracket mount)
      • (1) 3/8” bolt (center bolt)
      • (1) Washers (associated washers for bolts)
      • (1) O-ring
      • (1) LP Series Wiring Harness (Part Number: 64-0172 LP9 Pro Wire Harness)
      • (1) Relay (PN: 4RD 933 332-18)
