Find Light Bars & Off-Road Lighting for your Gladiator

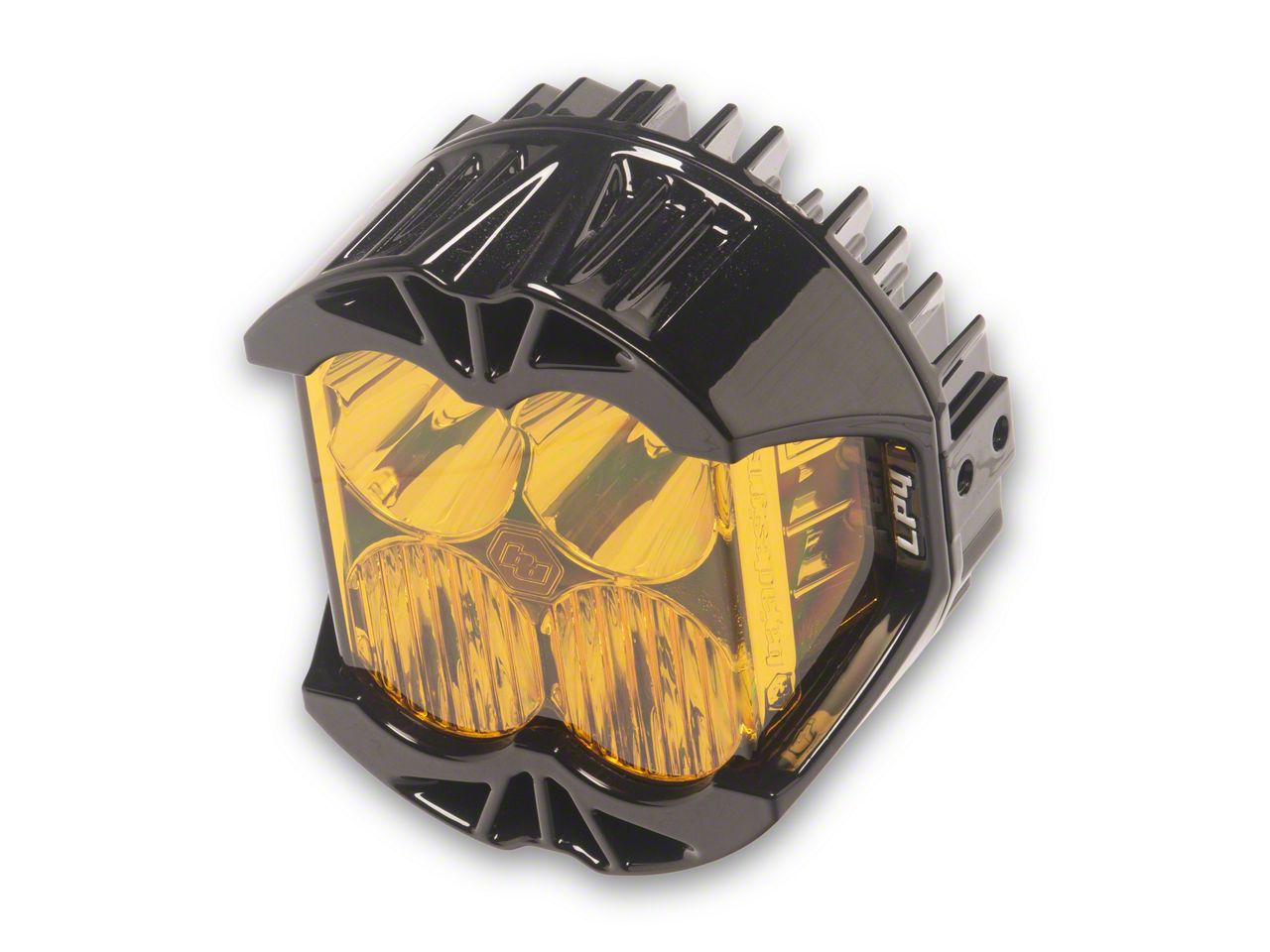

Baja Designs LP4 Pro LED Auxiliary Light Pod with Amber Backlight; Driving/Combo Beam; Amber (Universal; Some Adaptation May Be Required)

Item JG28467
Our Price

$437.95 each

Military, Medical & First Responders $21.90 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Lens Color Amber
      • _x000D_
      • Lens Material Hardcoated Polycarbonate
      • _x000D_
      • Light Quantity 1
      • _x000D_
      • Lighting Modes Beam/Day-Time Running Backlighting
      • _x000D_
      • Lighting Quantity 4
      • _x000D_
      • Lighting Technology LED
      • _x000D_
      • Lighting Type Forward Projecting
      • _x000D_
      • Mounting Hardware Included Yes
      • _x000D_
      • Mounting Hardware Material Stainless Steel
      • _x000D_
      • Overvoltage Protection Built-In
      • _x000D_
      • Product Type LP4 Pro LED Light Pod
      • _x000D_
      • Secondary Amperage Rating 1.000 Ampere
      • _x000D_
      • Secondary Brightness 1972 Lumens
      • _x000D_
      • Secondary Light Quantity 4 LEDs
      • _x000D_
      • Secondary Lighting Technology LED
      • _x000D_
      • Secondary Lighting Type Integrated Peripheral Technology (IPT)
      • _x000D_
      • Secondary Wattage 15 Watts
      • _x000D_
      • Terminal Connector DT06-4S Deutsch
      • _x000D_
      • Terminal Type Mating Connector
      • _x000D_
      • Universal Or Specific Universal
      • _x000D_
      • Wattage 75.9 Watts
      • _x000D_
      • Wiring Harness Included No
      • _x000D_
      • Amperage Rating 5.5 Ampere
      • _x000D_
      • Average Rated Life 49,930 Hours
      • _x000D_
      • Backlight Amperage Rating 0.35 Ampere
      • _x000D_
      • Backlight Wattage 4.83 Watts
      • _x000D_
      • Beam Pattern Driving/Combo
      • _x000D_
      • Bezel Material Powder Coat Cast Aluminum
      • _x000D_
      • Brightness 8,857 Lumens
      • _x000D_
      • Description Driving/Combo; Amber
      • _x000D_
      • Housing Color Black
      • _x000D_
      • Housing Material Powder Coat Cast Aluminum
      • _x000D_
      • Standards Compliance Exceeds MIL-STD810G, IK10 Compliant, IP69K Waterproof
      • _x000D_
      • Depth 3.2 Inches
      • _x000D_
      • Height 5.1 Inches
      • _x000D_
      • Length 5.1 Inches
      • _x000D_
      • Weight 2.8 Pounds
      • _x000D_
      • Fits Universal; Some Adaptation May Be Required
      • _x000D_

      Description

      High-Performance Illumination. The Baja Designs LP4 Pro LED Auxiliary Light Pod with Amber Backlight and Driving/Combo Beam provides bright and versatile lighting specifically designed for off-road and auxiliary vehicle use. This light pod combines a powerful beam pattern optimized for driving with an amber lens and optional backlight for enhanced visibility and customized styling. It delivers superior illumination for all your driving and trail lighting needs, improving safety and off-road performance.

      _x000D__x000D_

      Construction and Appearance. Crafted with a powder-coated cast aluminum housing in black, this durable light pod features a hardcoated polycarbonate lens to resist damage from impacts and environmental elements. Stainless steel mounting hardware ensures longevity and secure attachment, while the integrated peripheral technology (IPT) design creates a wide 200-degree spread of usable light. The rugged construction meets military and industrial standards for durability, impact resistance, and waterproofing.

      _x000D__x000D_

      Installation. Installation is straightforward and designed for universal mounting compatibility, requiring no specialized tools. Depending on the mounting location, minor adaptation or drilling may be necessary for secure fitting.

      _x000D__x000D_

      Warranty. This product includes a lifetime limited warranty, protecting against manufacturing defects for the life of the product.

      _x000D__x000D_

      Application. Fits universal applications; some adaptation may be required depending on vehicle model and mounting preferences.

      Baja Designs 290013

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 1 Hour

      Difficulty Level:

      Light to Moderate mechanical skill required.

      Installation Guides

      What's in the Box

      • (1) Light
      • (1) Bracket
      • (1) Hardware pack containing 1/4”-20 and 3/8” bolts and washers
      • (1) Set of 6 bolts (LP9) or 4 bolts (LP6 & LP4) for bezel and lens
      • (1) O-ring
      • (1) Deustsch Connector (DT06-4S) mating connector for the back of the light
      • (1) Relay (PN: 4RD 933 332-18)
      • (1) LP Series Wiring Harness (recommendation: 64-0172, LP9 Pro Wire Harness including switch, relay, connectors, and wire)
