Find Supercharger Kits & Accessories for your Titan XD

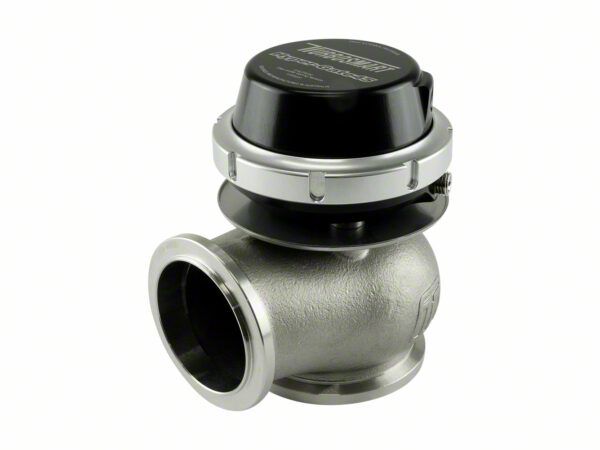

Turbosmart Gen4 HyperGate45 External Wastegate; 14 PSI; Black (Universal; Some Adaptation May Be Required)

Item NTX2918
Product Image
472 Reviews of Turbosmart
Our Price

$468.89 each

Military, Medical & First Responders $23.44 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

        _x000D_
      • Gen4 External Wastegate Unit
        • _x000D_
      • Pre-Fitted With Springs As Per Description
        • _x000D_
      • Gen4 Stainless Steel Valve Seat
        • _x000D_
      • Gen4 V-Band Clamps
        • _x000D_
      • Gen4 Inlet And Outlet Weld Flanges
        • _x000D_
      • Locking Collar Tool
        • _x000D_
      • 1/16” NPT Blanking Plugs
        • _x000D_
      • 1/16” Nipples (5mm)
        • _x000D_
      • V-Band Inlet & Outlet To Suit 44/46mm Peer Fitment
        • _x000D_
      • Unique Locking Collar Design
        • _x000D_
      • Stainless Steel Cast Body & Aluminium Actuator Housing
        • _x000D_
      • Springs Available From 3 To 26psi
        • _x000D_
      • Solid Piece Stainless Steel Valve
        • _x000D_
      • Proprietary High-Temp Silicon Nomex Diaphragm
        • _x000D_
      • Twin 1/16” NPT Reference Ports
        • _x000D_
      • Fits Universal; Some Adaptation May Be Required
        • _x000D_

      Description

      Performance Wastegate. The Turbosmart Gen4 HyperGate45 External Wastegate; 14 PSI; Black is engineered to provide reliable boost control for turbocharged engines. It efficiently vents excess exhaust gases to regulate turbine speed and boost pressure, optimizing power delivery. This external wastegate is ideal for street applications, supporting both pump fuel and E85 setups, balancing flow capacity and heat resistance.

      _x000D__x000D_

      Construction and Appearance. Featuring a stainless steel cast body and an aluminum actuator housing, this wastegate is built for durability. It includes a solid stainless steel valve and a proprietary high-temperature silicon Nomex diaphragm. The black anodized actuator housing may discolor with heat exposure but remains fully functional and reliable under operating conditions.

      _x000D__x000D_

      Installation. Installation is straightforward with no additional drilling required, utilizing peer flange orientation for direct fitment. The package includes V-band clamps, inlet and outlet weld flanges, and a locking collar tool to assist with spring changes and ensure secure mounting.

      _x000D__x000D_

      Application. The wastegate is designed for universal compatibility, though some adaptation may be necessary depending on the specific engine and turbocharger setup. It fits 45mm valve flange systems and comes with all necessary hardware for typical installations.

      Turbosmart TS-0506-1041

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 1 Hour

      Difficulty Level:

      Simple installation for anyone.

      Installation Guides

      What's in the Box

      • (1) External Wastegate
      • Mounting Bracket
      • Hardware
      • Instruction Manual
