2020-2026
Installation Time
(approx) 2 Hours
Difficulty Level:
Light to Moderate mechanical skill required.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $149+ Details
Find for your Gladiator

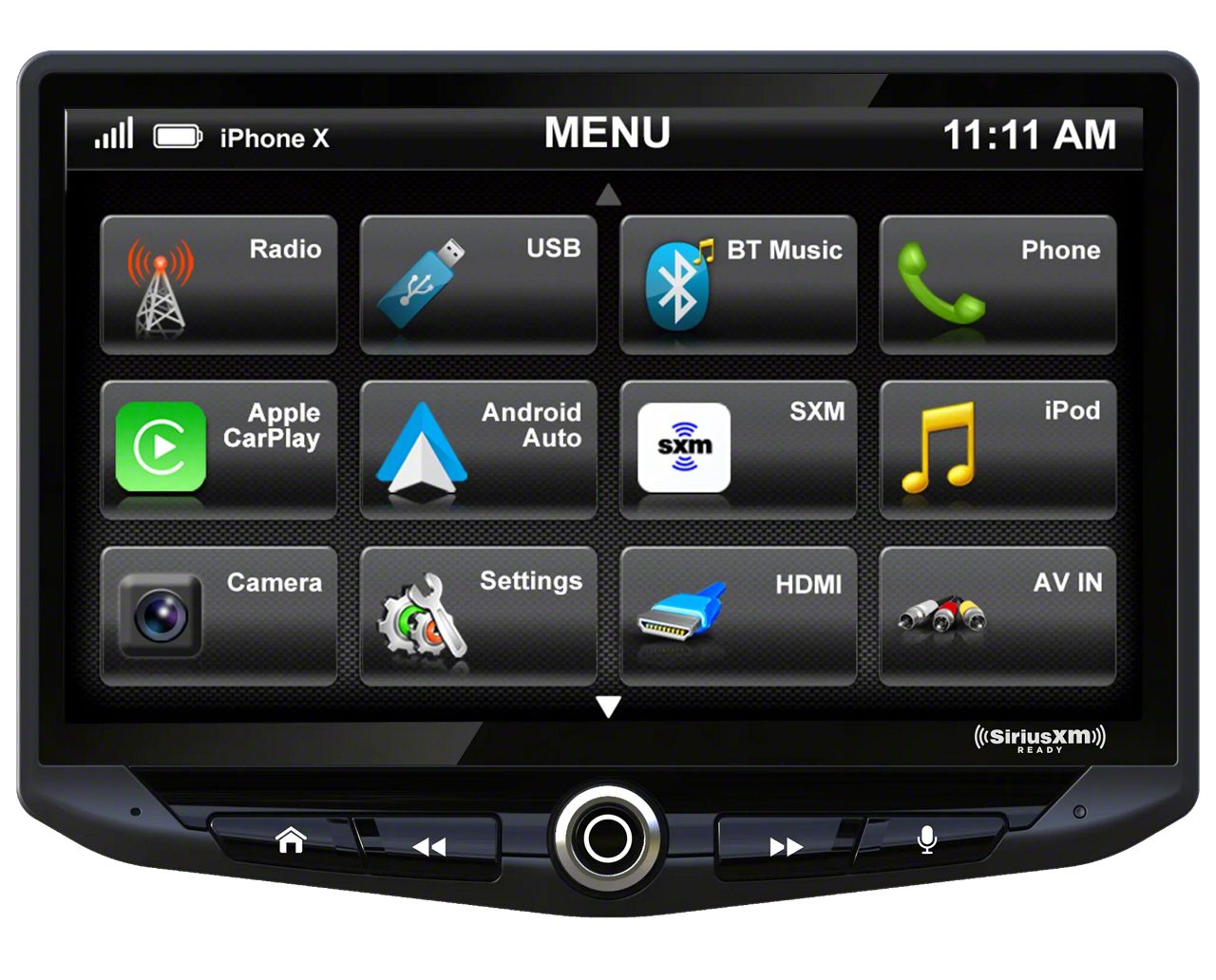

Stinger Electronics HEIGH10 Multimedia Center (Universal; Some Adaptation May Be Required)
Item JG18658
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features
- 10-Inch 1024 x 600 HD Digital Touchscreen with 16.7M colors
- Apple CarPlay
- Google Android Auto
- SiriusXM-Ready with Replay (SiriusXM Connect Vehicle Tuner and Subscription required)
- AM/FM Radio - PTY / RT Information
- Built-in Amplifier 16W x 4
- 4V 6ch RCA Audio Outputs with Subwoofer Control
- Toslink (Optical) Variable Audio Output
- 15 Band Adjustable EQ with 6 User Presets
- (1) HDMI Rear Input
- (2) USB Rear Inputs 1.5amp Output
- Handsfree Bluetooth 4.2 A2DP with aptX
- Built-in MicroSD Card Slot for Optional iGO Navigation
- (4) Camera Video Inputs with Wired Triggers
- Rear Camera Input with Mic Audio Input
- Hardwired (SWI) Remote Control Ready
- Customizable Display Backgrounds
- Shallow 1-DIN Chassis Mount Design
- Universal Design fits Most Makes and Models - Installation Mounting Kit is Required, But Not Included
Description
Your Media, Your Way. Stinger Electronics HEIGH10 Multimedia Center allows you to gain total access to your smartphone's music and navigation capabilities. Stinger Electronics HEIGH10 Multimedia Center features Apple CarPlay®, Google Android Auto™, a built-in MicroSD card slot for (optional) iGO Navigation, AM/FM radio with PTY, (2) USB rear inputs, 1.5-Amp output, hHands-free Bluetooth® 4.2 and A2DP with aptX™ (for hands-free calling and music streaming). This unit is also SiriusXM-Ready with Replay - SiriusXM Connect Vehicle Tuner and Subscription are required.
Audiophile Approved Sound. Stinger Electronics HEIGH10 Multimedia Center sonic capabilities allow for a versatile and more detailed sound experience. Stinger Electronics HEIGH10 Multimedia Center features a high-power 4 x 50w peak built-in amplifier, 4V 6ch RCA audio outputs with subwoofer control, Toslink (optical) audio output, 15-band adjustable graphic EQ with 6 user presets, an adjustable Hi-Pass Front/Rear and Lo-Pass subwoofer crossover with 6 user presets and Time alignment with 6 user presets.
10-inch Capacitive Touchscreen. Featuring a high-resolution, 10-inch capacitive touchscreen with 16.7 million colors for a full visual experience, HEIGH10® is designed to enhance screen size and infotainment features for drivers of any vehicle. The HEIGH10 features Anti-Glare and Anti-Reflection technology for best outdoor visibility. Personalize your display with customizable RGB illumination to match factory illumination, or create your own.
Safer Ride. In a world where road accidents are commonplace, the HEIGH10 can help reduce risk, increase safety and protect your precious cargo.Stinger Electronics HEIGH10 Multimedia Center features (4) camera inputs, selectable via camera mode display, turn signal for blind spot viewing, or simply add a rocker switch for trailer or tow viewing. The rear camera audio input enables the driver to hear sound from an optional RV camera microphone.
Installation. Stinger's radio platform is designed for modular installation, meaning the display and receiver are two separate pieces. This makes it universal for any vehicle, even where space is limited or non-existent behind the OEM radio being replaced. You can mount the display and receiver in two different locations, giving you the flexibility to install HEIGH10 in any vehicle with a standard single or double DIN dash kit. An installation dash mounting kit is required but not included.
Application. This Stinger Electronics HEIGH10 Multimedia Center features a universal design and will fit most makes and models. An installation dash mounting kit is required but not included.
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Touch Panel Display
- (1) Radio Module
- (1) 8-Pin Display Power Harness
- (1) LVDS Display Video Cable
- (1) 16-Pin Power/Speaker Harness
- (1) 24-Pin AV/Rear Camera Harness
- (1) 10-Pin Multi Camera Harness
- (1) 6-Pin SWI/IR Harness
- (1) 4-Pin Mic/Camera Audio Harness
- (1) SiriusXM Cable
- (1) External Microphone
- (1) GPS Antenna & Mounting Plate
- (1) Plastic Dash Mounting Bracket
- (1) Display Mounting Clamp
- (1) Metal Mounting Bracket
- (1) Horizontal Display Angle Plate
- (1) Rubber Boot
- (2) Backstraps
- Mounting Hardware
