In-Tank Fuel Module and PWM System; 2200 HP (12-21 Jeep Grand Cherokee WK2)Find parts that fit my vehicle

KPM Fuel Systems are proud to release the highest level of direct fit fuel systems for the Jeep Cherokee 2012-2021 and Dodge Durango 2012-2025.
With the modern Jeep and Dodge being tuned to amazing power levels comes the need for a high performance fuel system.
KPM have met this need with a direct replacement high performance fuel system that will perfectly support power levels from standard all the way to 2200 hp.
No other fuel module supports as much power with the efficiency, functionality, and fuel delivery of the KPM 2200 hp fuel systems!

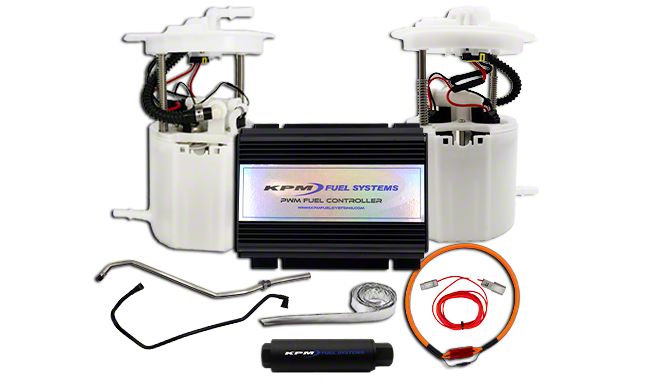

KPM 2200 hp Fuel Module System
The KPM 2200 hp Fuel Module System is engineered, utilizing 3x Bosch Racing fuel pumps, all housed in two separate OEM style high flow fuel modules and distribution manifolds. The primary module is the KPM1500 (2 pumps) and the second module is the KPM1000 (1 pump ). Both the KPM fuel modules are mounted and immersed in the vehicle’s fuel tank as per OEM design and for ease of fitment.
The development and testing of the KPM modules were focused on supplying guaranteed delivery of cool, dense fuel to support 2200 hp at the engine on pump fuel. Our objective was a reliable solid fuel delivery, to a 2200 hp engine in the extremes of racing as well as everyday road driving.
To achieve these objectives, our KPM Fuel System engineer designed and incorporated a six Venturi pump and refill valve system designed to scavenge fuel from both sides of the Jeep/Dodge fuel tank and permanently keep both the fuel canisters full. We also incorporated a PWM system to control the fuel pump operation and deliver fuel precisely as needed.
This means that you have the best of both worlds. You can run the KPM fuel modules at any fuel levels safely under both normal road conditions, or the extremes of racing without surge or fuel starvation.
Regardless, when you go racing at the circuit or drags and under full load applications, KPM always advise maintaining sufficient fuel levels in the tank as an extra precaution to further reduce any possibility and risk of surge or fuel starvation.
The fuel pumps are 100% gasoline, ethanol and methanol compatible and able to deliver massive amounts of cool, dense fuel at standard vehicle voltages.
This equates to optimum tuning and power levels up to 2200 hp (flywheel rated on 94 octane fuel).
