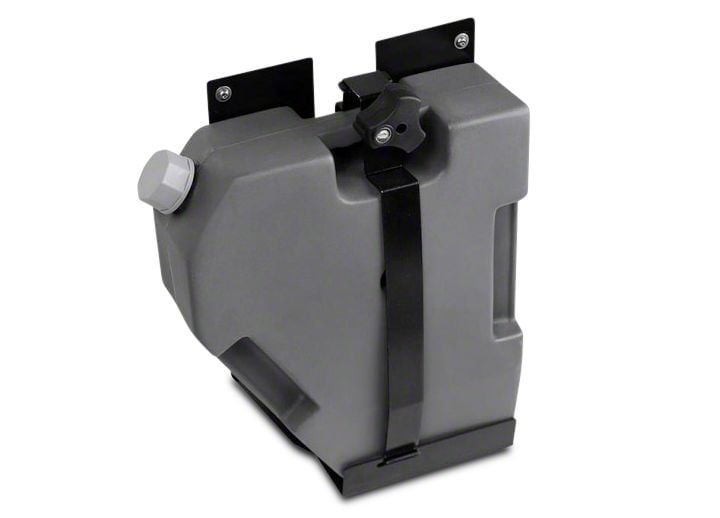

How to Install a Cliffride Jacoby Fluid Container - Driver Side on your Jeep Wrangler

Installation Time

30 minutes

Tools Required
  • Razor blade
  • Marker
  • Drill with ¼ & 3/8 drill bits
  • 10 & 14mm wrenches
  • Allen wench set
Extreme Terrain
Shop Parts in this Guide

1. Attach the large gasket to the back of the container bracket than cut a small hole for the center bolt. Fig. A

2. Hold the bracket in place and mark the location in the center hole. Fig. B

3. Drill a ΒΌ pilot hole followed up by a 3/8 hole. Fig. C

4. Using a 10 and 14mm wrench tighten the rivet nut until the tool can be removed without the insert spinning the threads should be in the center of the insert. Fig. D & Fig. E

5. Attach the bracket using the supplied allen screw and washer. Fig. F

6. Using the bracket as a template, drill the remaining 4 pilot holes using a 1/4in drill bit. Fig. G

7. Remove the bracket and drill out the remaining holes to 3/8. Fig. H

8. Install the remaining rivet nuts onto the fender following the same procedure in step 4. Fig. I

9. Slide the M10 bolt through the bracket before attaching the bracket onto the fender. Fig. J

10. Attach the bracket to the fender using the supplied 5 Allen screws and washers. Fig. K

11. Install the base plate gasket onto the container bracket. Fig. L

12. Install the strap gasket about an inch down from the 90* bend. Fig. M

13. Install the fluid container onto the tray. Fig. N

14. Tighten the bottle onto the bracket using the supplied lock, the lock will free spin when locked. Fig. O
