2016-2024
Installation Time
(approx) 30 Minutes
Difficulty Level:
Simple installation for anyone.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $149+ Details
Find Light Bars & Off-Road Lighting for your Titan XD

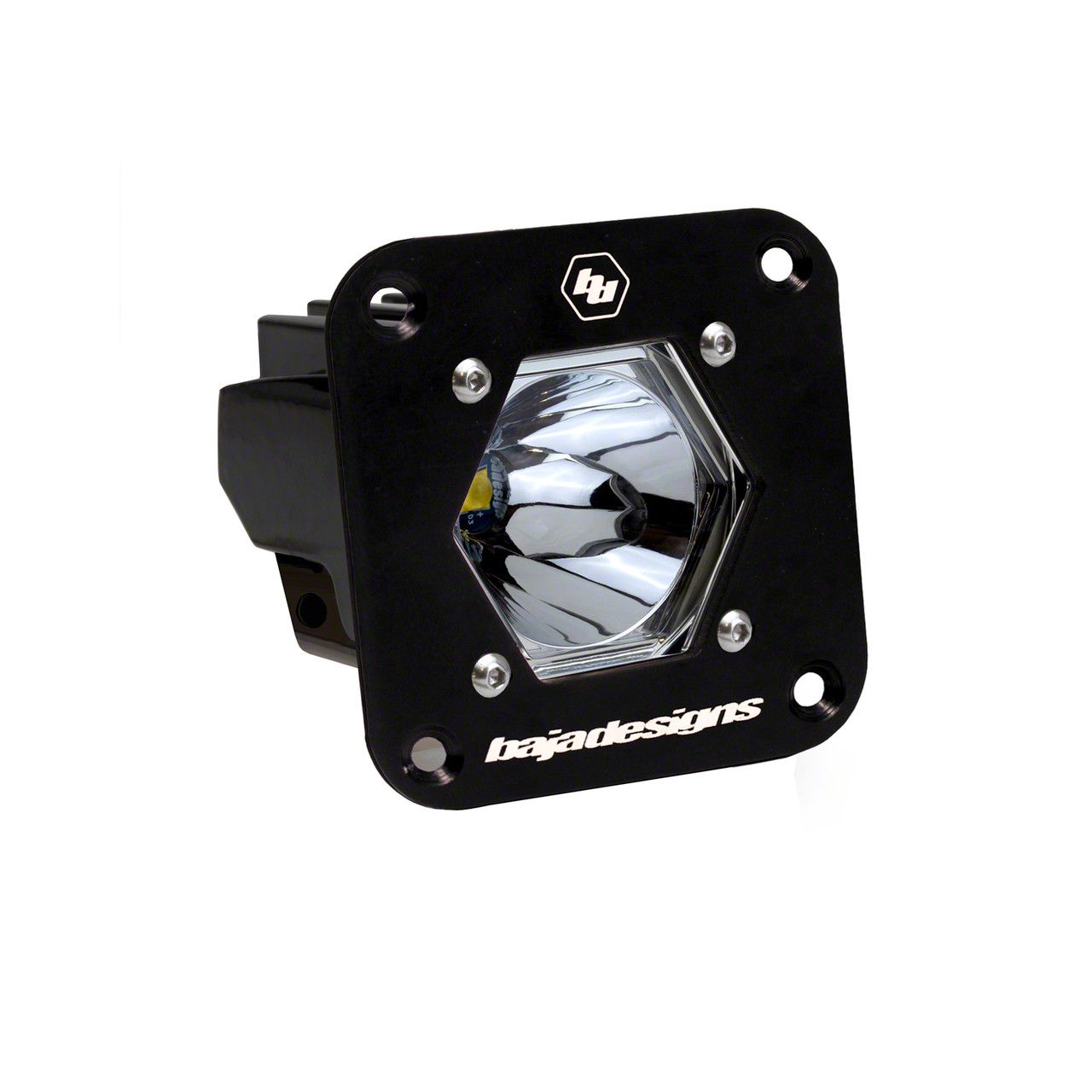

Baja Designs S1 Flush Mount Auxiliary Light Pod; Wide Cornering Beam; Clear (Universal; Some Adaptation May Be Required)
Item NTX11991
Our Price
$147.35 each
Military, Medical & First Responders
$7.37 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Overvoltage Protection Built-In _x000D_
- Product Type S1 Flush Mount LED Light Pod _x000D_
- Voltage 9-28 _x000D_
- Wattage 19.596 Watts _x000D_
- Wiring Harness Not Included _x000D_
- Amperage Rating 1.420 Amps _x000D_
- Average Rated Life 49,930 Hours _x000D_
- Beam Pattern Wide Cornering _x000D_
- Bezel Material Powder Coated Cast Aluminum _x000D_
- Brightness 2320 Lumens _x000D_
- Description Flush Mount; Wide Cornering; Clear Lens _x000D_
- Housing Color Black _x000D_
- Housing Material Hard Anodized and Powder Coated Cast Aluminum _x000D_
- Lens Color Clear _x000D_
- Lens Material Hardcoated Polycarbonate _x000D_
- Light Quantity 1 _x000D_
- Lighting Modes Beam _x000D_
- Lighting Technology LED _x000D_
- Lighting Type Forward Projecting _x000D_
- Mounting Hardware Included _x000D_
- Mounting Hardware Material Stainless Steel _x000D_
- Meets Or Exceeds Mil-Spec Durability Standards Mil-Std810G _x000D_
- Impact Resistance IK10 Compliant _x000D_
- Water Resistance IP69K Waterproof Up To 9ft And Pressure Washable _x000D_
- Dimensions 2.1 Inches Length, Width, And Height _x000D_
- Weight 0.4 Pounds _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Baja Designs |
| Bulb Type | LED |
| Light Shape | Square |
| Light Size | 2 to 2.75 Inch |
Description
Compact Powerful Lighting. The Baja Designs S1 Flush Mount Auxiliary Light Pod features a wide cornering beam and clear lens, engineered to deliver robust illumination in a compact and versatile design. It provides 2,320 lumens of high-intensity light suitable for off-road driving, campsite lighting, and other applications, ensuring enhanced visibility and safety in diverse conditions.
_x000D__x000D_Construction and Appearance. This auxiliary light is encased in a durable black housing crafted from hard anodized and powder coated cast aluminum, offering excellent corrosion resistance. The clear lens is made from hardcoated polycarbonate, designed to resist impacts and environmental exposure while maintaining optimal optical clarity.
_x000D__x000D_Installation. Installing the light is straightforward, requiring only a single 2.5-inch hole saw for flush mounting. This design simplifies fitting on compatible surfaces and minimizes vehicle modification.
_x000D__x000D_Warranty. The product includes a limited lifetime warranty for long-term purchase protection.
_x000D__x000D_Application. Designed to fit universally, some adaptation may be necessary to accommodate various mounting surfaces and vehicle types.
Baja Designs 381005
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) S1 Flush Mount Auxiliary Light Pod
4.7
Reviews of Baja Designs Lights Products (162)
Questions & Answers
No questions about this product yet.
Ask the First Question
