2016-2024
Installation Time
(approx) 1 Hour
Difficulty Level:
Simple installation for anyone.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $149+ Details
Find Light Bars & Off-Road Lighting for your Titan XD

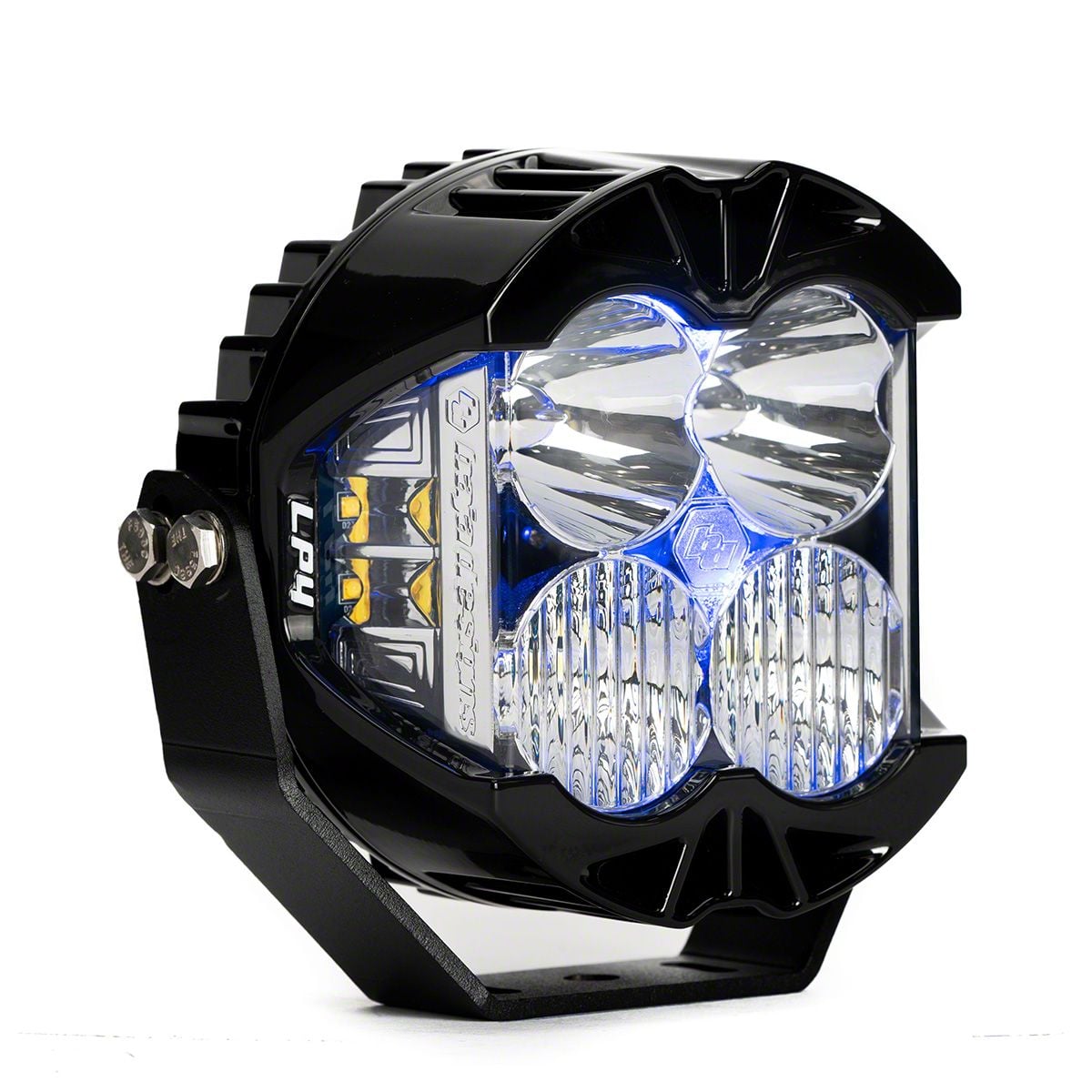

Baja Designs LP4 Pro LED Auxiliary Light Pod with Blue Backlight; Driving/Combo Beam; Clear (Universal; Some Adaptation May Be Required)
Item NTX11962
Our Price
$437.95 each
Military, Medical & First Responders
$21.90 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Lens Color Clear _x000D_
- Lens Material Hardcoated Polycarbonate _x000D_
- Light Quantity 1 _x000D_
- Lighting Modes Beam/Day-Time Running Backlighting _x000D_
- Lighting Quantity 4 _x000D_
- Lighting Technology LED _x000D_
- Lighting Type Forward Projecting _x000D_
- Mounting Hardware Included Yes _x000D_
- Mounting Hardware Material Stainless Steel _x000D_
- Overvoltage Protection Built-In _x000D_
- Product Type LP4 Pro LED Light Pod _x000D_
- Secondary Amperage Rating 1.000 A _x000D_
- Secondary Brightness 1972 Lumens _x000D_
- Secondary Light Quantity 4 LEDs _x000D_
- Secondary Lighting Technology LED _x000D_
- Secondary Lighting Type Integrated Peripheral Technology (IPT) _x000D_
- Secondary Wattage 15 W _x000D_
- Terminal Connector DT06-4S Deutsch _x000D_
- Terminal Type Mating Connector _x000D_
- Wattage 75.900 W _x000D_
- Wiring Harness Included No _x000D_
- Amperage Rating 5.500 A _x000D_
- Average Rated Life 49,930 Hours _x000D_
- Backlight Amperage Rating 0.350 A _x000D_
- Backlight Wattage 4.830 W _x000D_
- Beam Pattern Spot _x000D_
- Bezel Material Powder Coat Cast Aluminum _x000D_
- Brightness 8857 Lumens _x000D_
- Description Spot; Clear _x000D_
- Housing Color Black _x000D_
- Housing Material Powder Coat Cast Aluminum _x000D_
- Standards Comply Exceeds MIL-STD810G Mil-Spec Testing _x000D_
- Impact Resistance IK10 Compliant Mechanical Impact Testing _x000D_
- Water Resistance IP69K Waterproof Up To 9 Ft and Pressure Washable _x000D_
- Depth 3.200 Inches _x000D_
- Height 5.100 Inches _x000D_
- Length 5.100 Inches _x000D_
- Weight 2.800 Pounds _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
- uService Replaceable Lenses _x000D_
- Multiple Backlight Color Options: Red, Blue, Amber, and Green _x000D_
- Advanced Cooling with Direct Ducted Cooling (DDC) _x000D_
| Brand | Baja Designs |
| Bulb Type | LED |
| Light Shape | Square |
| Light Size | 3 to 3.75 Inch |
Description
Advanced LED Lighting. The Baja Designs LP4 Pro LED Auxiliary Light Pod with Blue Backlight; Driving/Combo Beam; Clear delivers powerful illumination with superior peripheral spread. Designed to enhance visibility in off-road and auxiliary lighting applications, it provides a versatile lighting solution that improves safety and adventurous driving experiences.
_x000D__x000D_Construction and Appearance. This light pod features a robust powder coat cast aluminum housing with a sleek black finish and hardcoated polycarbonate lens for durability. The high-quality materials and precision engineering ensure excellent impact resistance and weatherproofing, making it ideal for harsh environments.
_x000D__x000D_Installation. Installation is straightforward with included stainless steel mounting hardware. The light uses a DT06-4S Deutsch connector to ensure secure and reliable wiring connections, with no complex modifications or drilling typically required.
_x000D__x000D_Warranty. Backed by a lifetime limited warranty, the product is protected against defects in materials and workmanship, providing peace of mind for long-term use.
_x000D__x000D_Application. Fits universal; some adaptation may be required.
Baja Designs 290015
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) LED Auxiliary Light Pod
