RV Harness Diode Kit

Item U4573-9
72 Reviews of similar
Our Price

$48.95 kit

Military, Medical & First Responders $2.45 Available in XT Cash Rewards.
Confirm Eligibility
Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

      • Allows RV To Power Lights Only On The Towed Vehicle Without Power Feeding Back
      • Rated For 3 Amps Max Per Diode Block
      • Rated For 24V Max Per Diode Block
      • Requires Trailer-Side 4-Way Flat Connector Plug With 20' Wires Or Similar
      • Includes Four Diode Blocks And 12 Spade Terminals

      Description

      Vehicle Lighting Protection. The RV Harness Diode Kit enables a motorhome or RV towing a vehicle to power the towed vehicle's signal lights exclusively, preventing electrical feedback that could harm either vehicle. This kit is essential for ensuring safe and reliable lighting operation on the towed vehicle while avoiding interference with its electrical system.

      Construction and Appearance. The kit includes four diode blocks and 12 spade terminals designed for durable electrical connections. Each diode block is rated for up to 3 amps and 24 volts, suitable for standard RV towing electrical systems. The components have a functional, no-frills appearance optimized for performance and ease of installation.

      Installation. Installation requires connecting to a trailer-side 4-way flat connector with approximately 20 feet of wiring. The process is straightforward and typically does not require drilling, making it accessible for users with basic electrical knowledge.

      Fitment and Application. This kit is designed to work with motorhomes and RVs towing vehicles that use standard 4-way flat trailer connectors for lighting. It is compatible with 12V and 24V electrical systems commonly found in recreational towing applications.

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 1 Hour

      Difficulty Level:

      Simple installation for anyone.

      Installation Guides

      What's in the Box

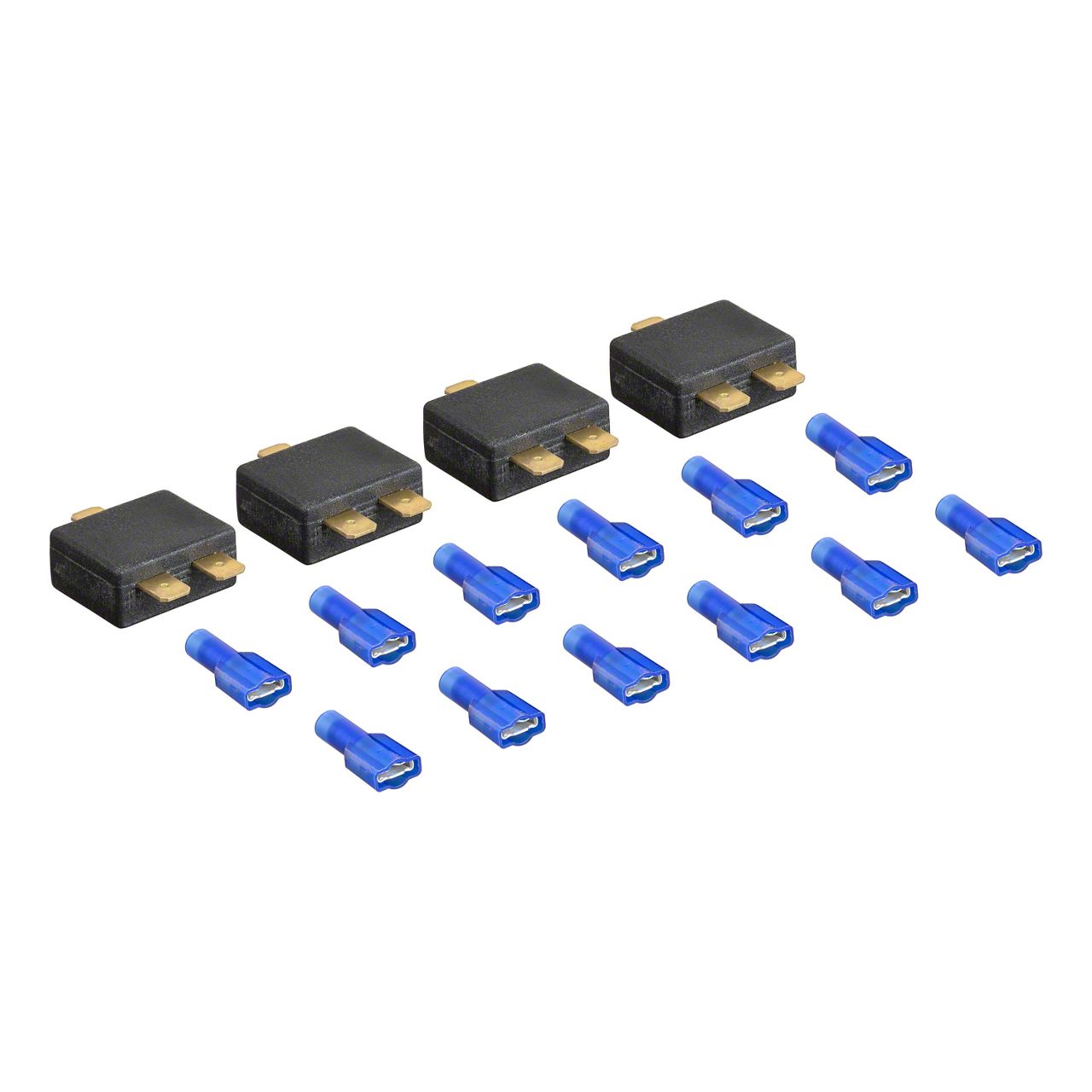

      • (4) Diode Blocks
      • (12) Spade Terminals
