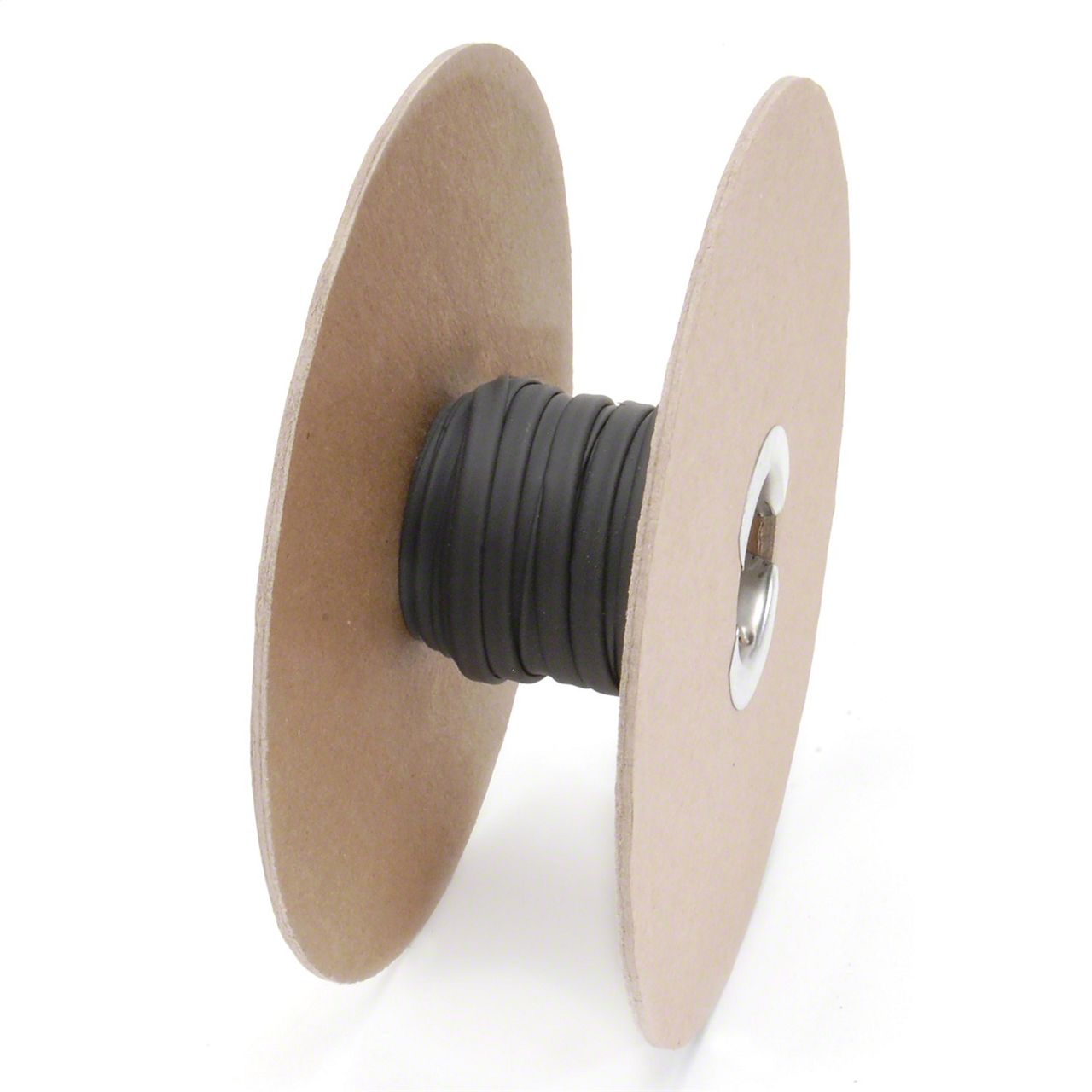

Hi-Temp Shrink Tube; 6mm x 50-Foot (Universal; Some Adaptation May Be Required)

Item JGC17019
Our Price

$94.99

Military, Medical & First Responders $4.75 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program

      Product Information

      Features, Description, Q&A

      Features

        _x000D_
      • Professional Grade Military Spec Flexible Polyolefin Tubing Provides Excellent Electrical Insulation
      • _x000D_
      • Protection From Dirt, Dust, Solvents, And Foreign Materials
      • _x000D_
      • Provides Strain Relief
      • _x000D_
      • Over Expanded Tubing Easily Fits Over The End Of Wires And Connectors
      • _x000D_
      • Shrinks Down To 33% Of Its Original Diameter For A Snug Water-Tight Protective Seal Without A Reduction In Tube's Original Length
      • _x000D_
      • Meets Material Functional Properties Of Military Spec DTL-23053/5C
      • _x000D_
      • 3:1 Shrink Ratio
      • _x000D_
      • Operating Temperature Range -67°F To 275°F
      • _x000D_
      • Apply At 120°F To 180°F Using A Heat Gun
      • _x000D_
      • Do Not Apply Directly To Exhaust Components
      • _x000D_
      • Length 50 Feet
      • _x000D_
      • ID 6 Mm
      • _x000D_
      • ID 15/64 Inch
      • _x000D_
      • Fits Universal; Some Adaptation May Be Required
      • _x000D_

      Description

      High-Temperature Heat Shrink Tubing. The Hi-Temp Shrink Tube; 6mm x 50-Foot is designed to insulate wires, connectors, and terminals effectively while offering resistance against electrical, environmental, and mechanical hazards. It is ideal for professional-grade applications where durable protection and strain relief are essential, particularly in automotive electrical systems. This tubing shrinks tightly around components providing a water-tight seal that guards against contamination and wear.

      _x000D__x000D_

      Construction and Appearance. Made from military specification polyolefin, this tubing features flexible and durable construction that complies with DTL-23053/5C standards. It has a smooth surface finish and shrinks uniformly down to one third of its original diameter, maintaining the length of the tubing to ensure consistent coverage. Its robust material withstands high temperatures ranging from -67°F to 275°F, suitable for demanding engine compartment environments.

      _x000D__x000D_

      Installation. Installation requires no drilling; simply use a heat gun set between 120°F and 180°F to activate the shrinking process. The over-expanded design allows the tubing to easily fit over wires and connectors, creating a snug, professional fit and an instant protective seal when heated.

      _x000D__x000D_

      Application. Fits universally, with some adaptation potentially required depending on specific use cases. It should not be applied directly to exhaust components due to temperature limitations and material safety concerns.
