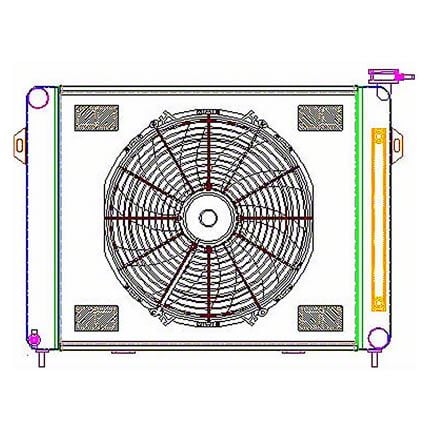

Griffin Radiators ComboUnit CrossFlow Radiator; 1-Row (93-98 5.2L, 5.9L Jeep Grand Cherokee ZJ)Find parts that fit my vehicle
Item JGC23633
Our Price
$1,247.00 each
Military, Medical & First Responders
$62.35 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- PerformanceFit ComboUnit Griffin Aluminum Radiator with a 28.25" x 22.25" Crossflow Design and 1-Row MegaCool Core built for efficient cooling in applications under 850 HP
- Core Size: 22.25" × 20.00"
- Overall Size: 28.25" × 22.25"
- One-Row Configuration
- Crossflow Cooling Pattern
- Maximum Horsepower Capacity of 850
- Equipped with a 16.00" SPAL Fan delivering 1074 CFM
- Integrated Transmission Cooler with 1/8" NPT fittings
- Factory-Mounted Fan Shroud Included
- Wiring Harness and Temperature Sender Included
- Radiator Cap Included
- Core Dimensions: 20.00" Height x 22.25" Width x 2.00" Thickness
- Overall Dimensions: 22.25" Height x 28.25" Width x 4.75" Thickness
- Inlet Located Top Passenger Side, 1.5" Diameter
- Outlet Located Bottom Driver Side, 1.75" Diameter
- Tubing Size: 1.50"
- Core Area: 445 Square Inches
- Material: Aluminum with Natural Finish
- Designed for V8 Jeep Engine Family
- Fits 1993-1998 5.2L and 5.9L Jeep Grand Cherokee ZJ models
Description
Efficient Cooling Solution. The ComboUnit CrossFlow Radiator with a 1-Row MegaCool core offers superior heat dissipation through its crossflow design, ensuring reliable engine temperature control under demanding conditions. This radiator assembly integrates a fan, wiring harness, and transmission cooler to maintain optimal performance in high-horsepower applications.
Construction and Appearance. Crafted from lightweight aluminum with a natural finish to resist corrosion, the radiator features a one-row MegaCool core for maximum cooling efficiency. Included are a 16.00" SPAL fan and factory-mounted fan shroud for a complete, ready-to-install package.
Installation. Installation is straightforward with direct-fit connections requiring no modifications or drilling. The unit includes all necessary components such as the wiring harness and temperature sender for a seamless replacement.
Application. Specifically engineered to fit 1993 to 1998 5.2L and 5.9L Jeep Grand Cherokee ZJ models, this ComboUnit is compatible with factory automatic transmissions and features an integrated transmission cooler for enhanced drivetrain protection.
Griffin Radiators CU-70080
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Install Details & What's in the Box
Installation Info
What's in the Box
- (1) Radiator
- Instructional Manual
4.0
Reviews of Griffin Radiators Engine Products (3)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My Grand Cherokee
- 5.9 Limited 4 Door - 98
- Base 4 Door - 93
- Laredo 4 Door - 93, 94, 95, 96, 97, 98
- Limited 4 Door - 93, 94, 95, 96, 97, 98
- Orvis 4 Door - 95, 97
- SE 4 Door - 94, 95
- TSi 4 Door - 97, 98
