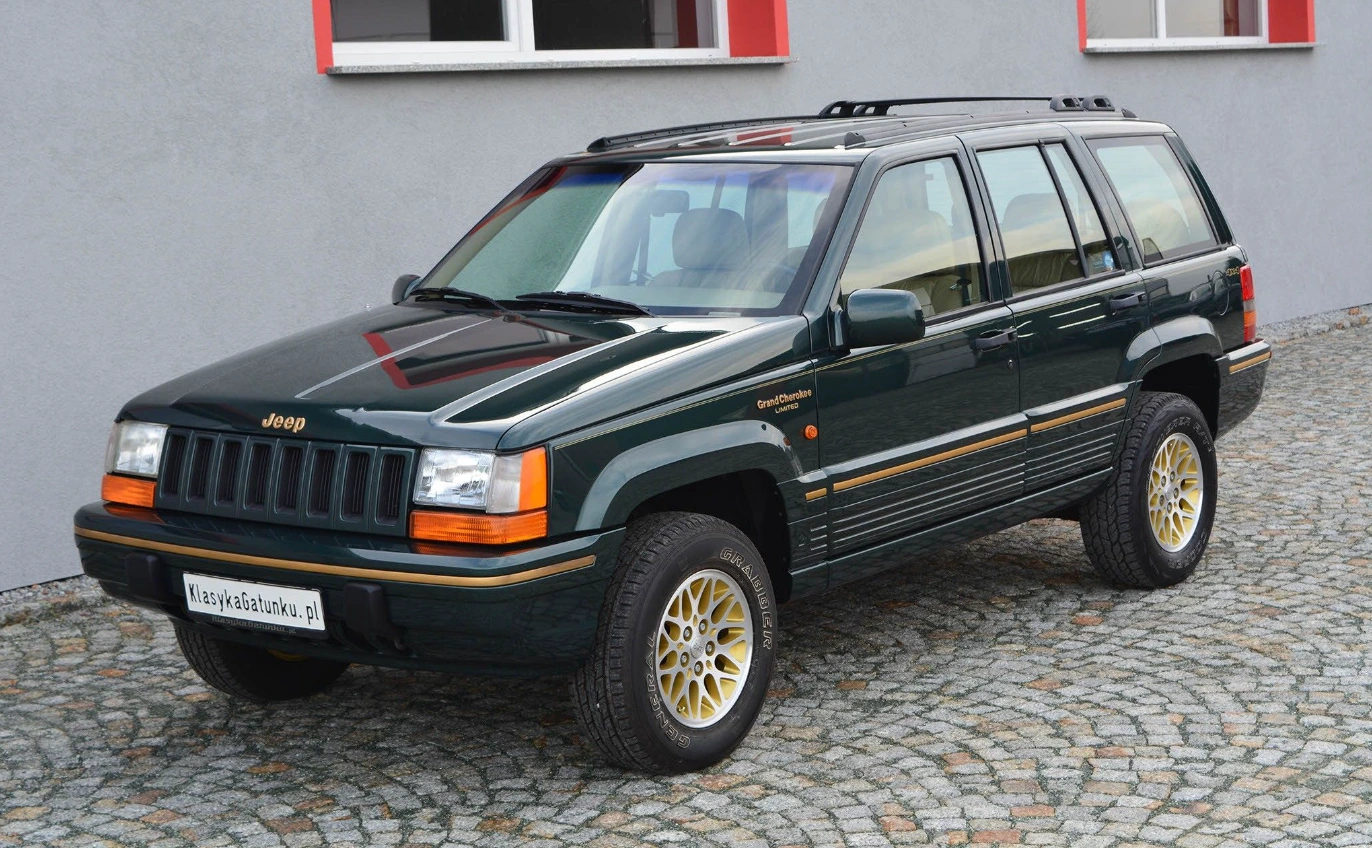

Grand Cherokee ZJ Fluid Capacities: Complete 1993-1998 Spec Guide

Grand Cherokee ZJ fluid capacities are some of the most-searched specs for 1993-1998 ZJ owners, and for good reason — running the wrong fluid or coming up short on quantity can cost you an engine, a transmission, or a long walk back from the trail. Whether you just picked up your first ZJ or you are deep into a build, having every fluid type and capacity at your fingertips keeps your rig running right. In this guide, you will find exact capacities for every major system on the ZJ, from engine oil and coolant to differentials and power steering.

Engine Oil Capacities

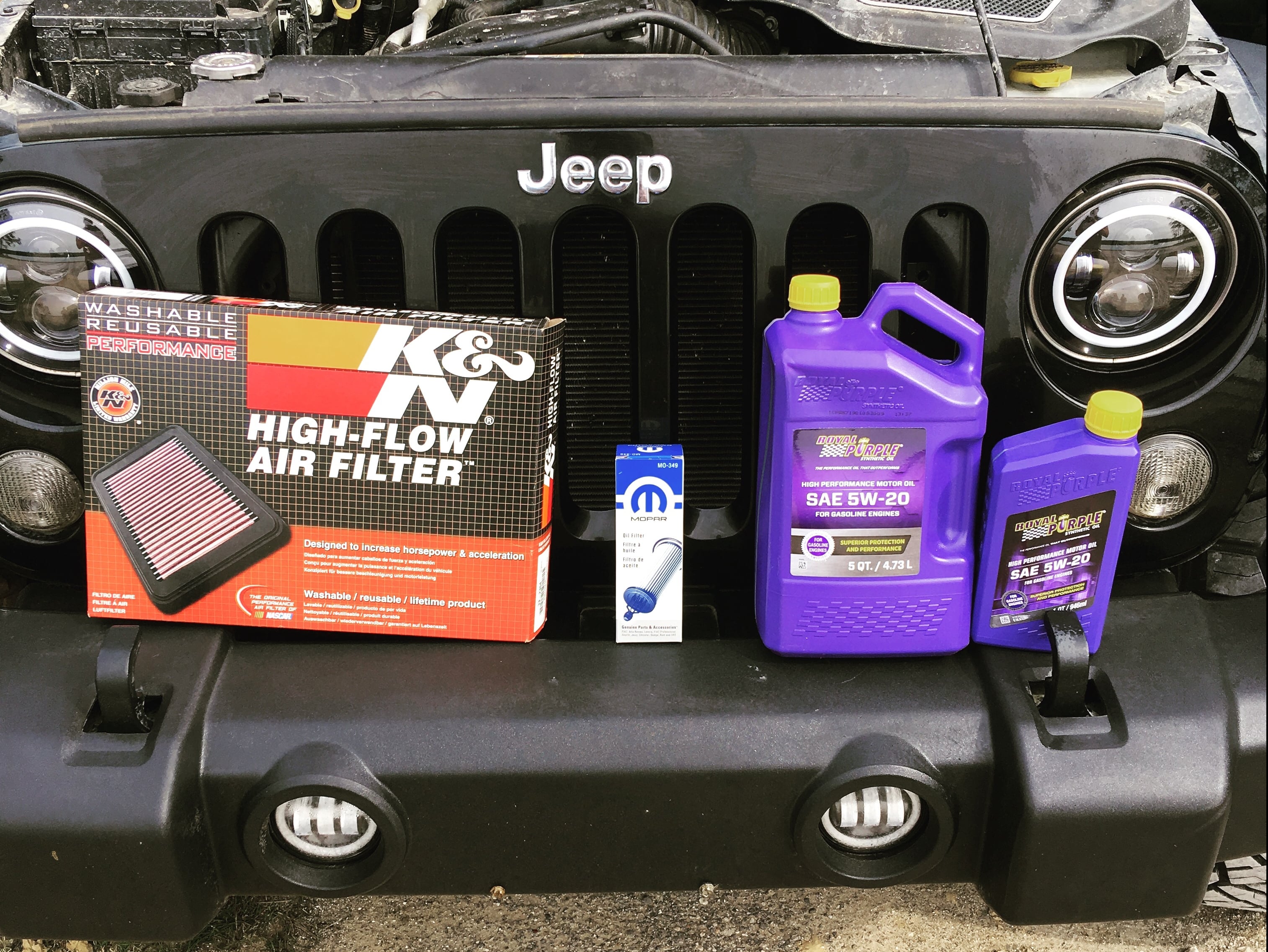

What oil does a Jeep Grand Cherokee ZJ take? All three ZJ engines — the 4.0L inline-six, 5.2L V8, and 5.9L V8 — use conventional 5W-30 or 10W-30 engine oil. The capacities below include the oil filter.

So which viscosity should you run? If you live in a warmer climate or do a lot of towing, 10W-30 gives you a slightly thicker film at operating temperature. For most daily-driven and trail-used ZJs in moderate to cold climates, 5W-30 is the go-to — it flows better at startup and meets the factory recommendation across all model years. Either way, stick with a quality conventional or synthetic blend and change it every 3,000 to 5,000 miles, especially if you are running your ZJ off-road. Keeping up with ZJ engine performance parts and fresh oil is the cheapest insurance you can buy for your powertrain.

Coolant System Capacities

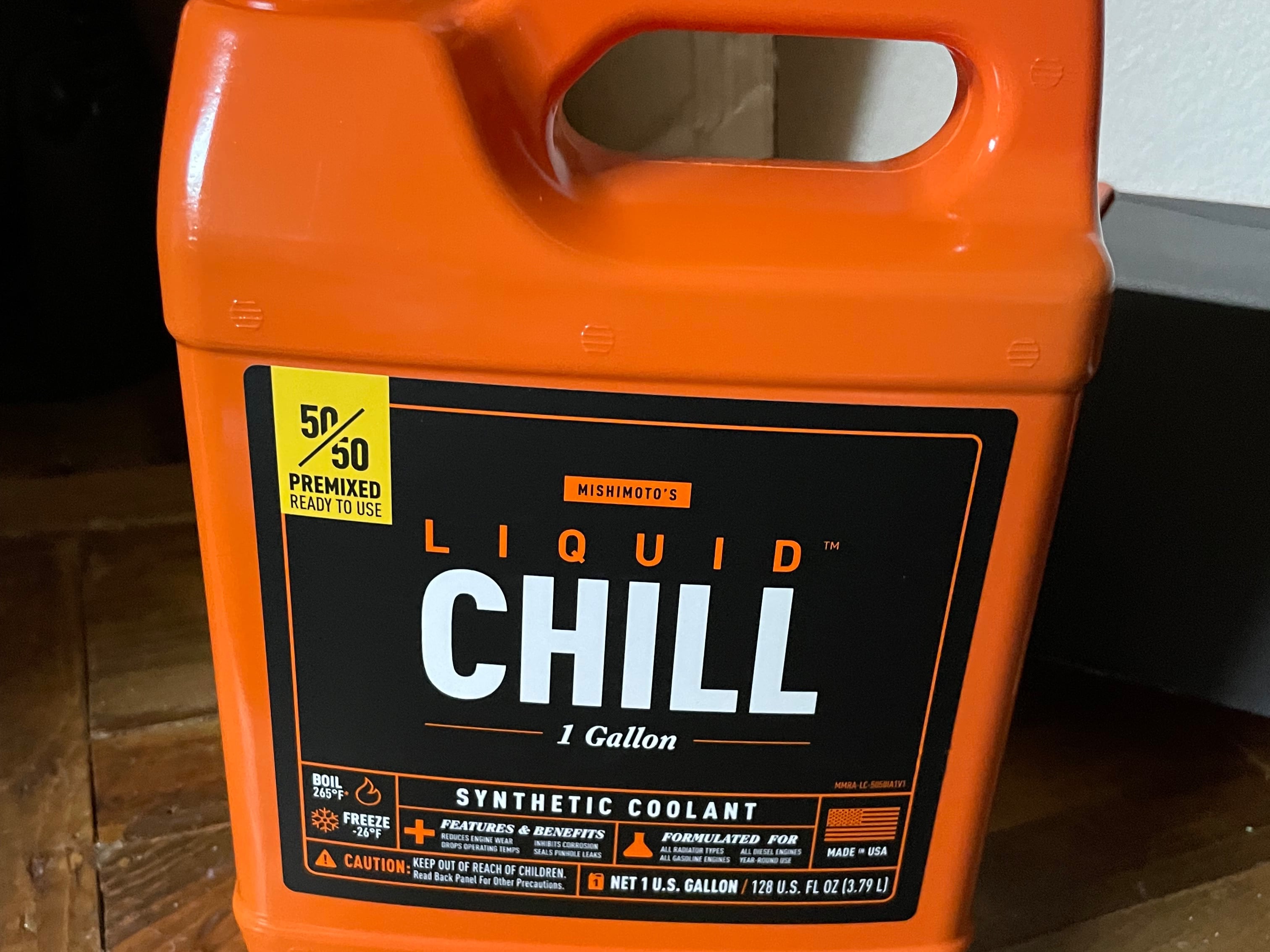

How much coolant does a Jeep Grand Cherokee ZJ hold? Your ZJ's cooling system uses an IAT (Inorganic Additive Technology) formula mixed at a 50/50 ratio with distilled water. Green-colored IAT coolant is the factory spec — do not substitute OAT or HOAT formulas without a full flush, as mixing coolant chemistries can cause gel buildup and overheating.

Jeep recommends flushing and replacing your coolant every 30,000 miles or every two years, whichever comes first. When you drain and refill, you will not get all the old coolant out in a single pass — the heater core and block passages retain fluid. Plan on two drain-and-fill cycles or use a flush kit to get closer to a complete exchange. If your ZJ sees heavy trail use, check your coolant condition more frequently. Brown or rusty coolant means it is time for a change regardless of mileage.

Automatic Transmission Fluid Capacities

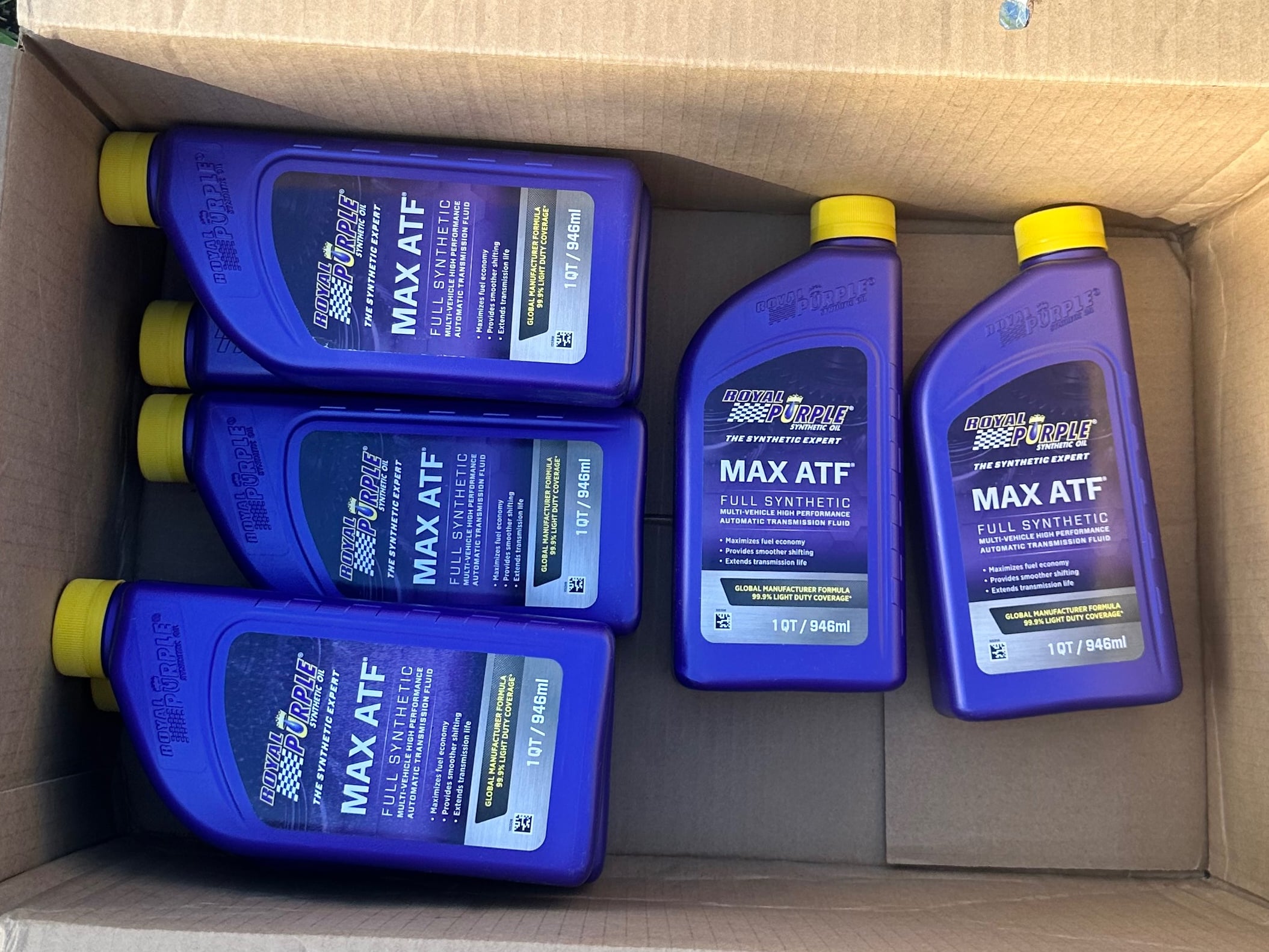

How much transmission fluid does a Jeep Grand Cherokee ZJ hold? Your ZJ's automatic transmission takes ATF+4, which supersedes the older Mopar ATF+3 and Dexron III specs that were originally published for earlier model years. Running ATF+4 in any ZJ automatic is the current factory recommendation — it is backward-compatible and provides better shift quality and thermal stability.

The "service fill" is what you will add after dropping the pan, replacing the filter, and reinstalling — that is the most common maintenance scenario. The "overhaul fill" is the total dry capacity when the torque converter and cooler lines are completely empty, such as after a rebuild. If you are doing a routine pan-drop service, fill to the service capacity, warm the transmission to operating temperature, then check the dipstick with the engine running in park. Add fluid in small increments until the level reads in the crosshatch area. Overfilling causes foaming and erratic shifts, so take your time here.

Manual Transmission Fluid

The AX-15 five-speed manual transmission was available behind the 4.0L inline-six. It uses 75W-90 GL-5 gear oil — not ATF.

Fill the AX-15 through the fill plug on the side of the case until fluid begins to seep out. That is your full mark. If your shifts feel notchy — especially in cold weather — fresh 75W-90 synthetic gear oil can make a noticeable difference. The AX-15 is a tough transmission, but it does not tolerate low fluid levels well, so check it any time you have your ZJ on a lift.

Transfer Case Fluid Capacities

What transfer case fluid does a Jeep ZJ use? Your ZJ may have one of three transfer cases depending on the drivetrain configuration. All three use ATF+4, but their capacities differ slightly. Knowing which transfer case you have is important — filling the wrong amount can leave you short or cause leaks from overfilling.

The NP231 is the part-time system — you manually shift between 2WD and 4WD. The NV242 gives you both part-time and full-time 4WD options. The NV249 is a full-time all-wheel-drive unit with a viscous coupler. If you are upgrading your ZJ drivetrain parts or swapping transfer cases, always confirm the correct unit and fill to spec. These are small-capacity components, so even half a quart low can accelerate wear on the chain and gears inside.

Differential and Axle Fluid Capacities

How many quarts of differential fluid does a Jeep ZJ need? Your ZJ's axle fluid keeps the ring and pinion gears protected under load. The factory spec is 80W-90 conventional gear oil for normal driving conditions. If you tow regularly or run aggressive off-road terrain, stepping up to 75W-140 synthetic provides better protection at extreme temperatures.

If your ZJ has a Trac-Lok limited-slip differential, you need to add 4 oz of limited-slip friction modifier additive to the gear oil. Without it, you will hear chatter and clunking on tight turns. This additive is critical — do not skip it. For ZJs that see towing duty, 75W-140 synthetic gear oil is the recommended upgrade for both front and rear axles. It handles higher operating temperatures without breaking down as quickly as conventional 80W-90.

Brake, Clutch, and Power Steering Fluids

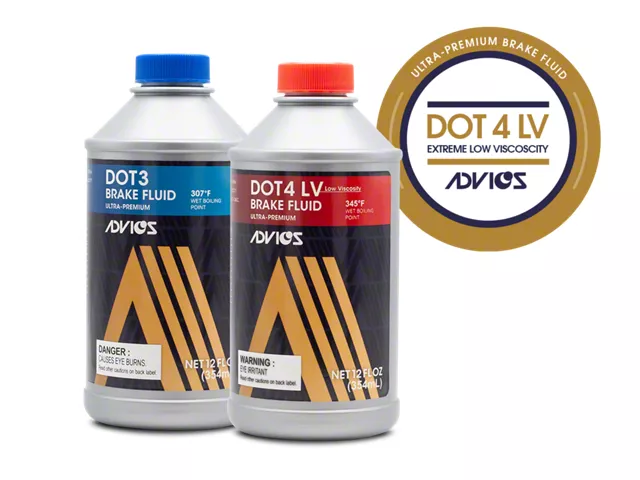

Your ZJ's brake system uses DOT 3 brake fluid. If your brake pedal feels spongy or you have not flushed the system in two years, old moisture-contaminated fluid is likely the culprit. DOT 3 is hygroscopic — it absorbs water over time, which lowers its boiling point and increases the risk of brake fade on long descents or during trail braking.

For power steering, the factory spec is Mopar Power Steering Fluid +4. ATF+4 is an acceptable substitute and many ZJ owners run it without issue. Top off the reservoir to the "hot" or "cold" mark on the dipstick depending on whether your ZJ is at operating temperature. If your ZJ has the AX-15 manual transmission, the hydraulic clutch system also uses DOT 3 brake fluid. Keep that topped off to prevent a soft clutch pedal or difficulty shifting.

Additional ZJ Specifications

Beyond the major fluid systems, here are a few more specs that come in handy during maintenance and seasonal service.

There is no performance benefit to running premium fuel in a stock ZJ unless you are experiencing detonation or knock under load. Never use ethanol-based fuels like E-85 or E-90 — up to 10% ethanol content is acceptable. If you are recharging the A/C with a DIY kit, add refrigerant slowly and check the pressure gauge frequently. Overcharging is just as damaging as undercharging.

Whether you are doing a basic tune-up or a full fluid change across every system, having the right specs saves you time and keeps your ZJ reliable. Check out 1993-1998 Grand Cherokee ZJ parts for everything from filters and drain plugs to performance upgrades.

Jeep Fluid Capacities by Model

If you work on more than one Jeep in the garage — or you are thinking about your next build — we have put together fluid capacity guides for other popular models too. Each one covers every major system with exact specs, just like this guide.

• Grand Cherokee WJ Fluid Capacities (1999-2004)
• Jeep CJ Fluid Capacities (1976-1986)
• Jeep Wrangler Fluid Capacities (JK, TJ, YJ)
• Cherokee XJ Fluid Capacities (1984-2001)

ZJ Fluid Capacities Summary

Here is a quick recap of the most critical specs for your 1993-1998 Grand Cherokee ZJ:

• Engine oil: 4.0L takes 5 quarts, 5.2L takes 4 quarts, 5.9L takes 6 quarts — all use 5W-30 or 10W-30.
• Coolant: 12 quarts (4.0L) or 14.9 quarts (V8s) of 50/50 IAT formula.
• Transmission: ATF+4 for all automatics; 75W-90 GL-5 for the AX-15 manual.
• Transfer case: ATF+4 across all three units (NP231, NV242, NV249).
• Differentials: 80W-90 gear oil (upgrade to 75W-140 for towing); add 4 oz limited-slip additive for Trac-Lok units.
• Brakes and steering: DOT 3 brake fluid; Power Steering Fluid +4 or ATF+4.
