2022-2025
2011-2021
2005-2010
1999-2004
1993-1998
Installation Time
(approx) 30 Minutes
Difficulty Level:
Simple installation for anyone.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $149+ Details
Find Audio & CB Equipment for your Grand Cherokee

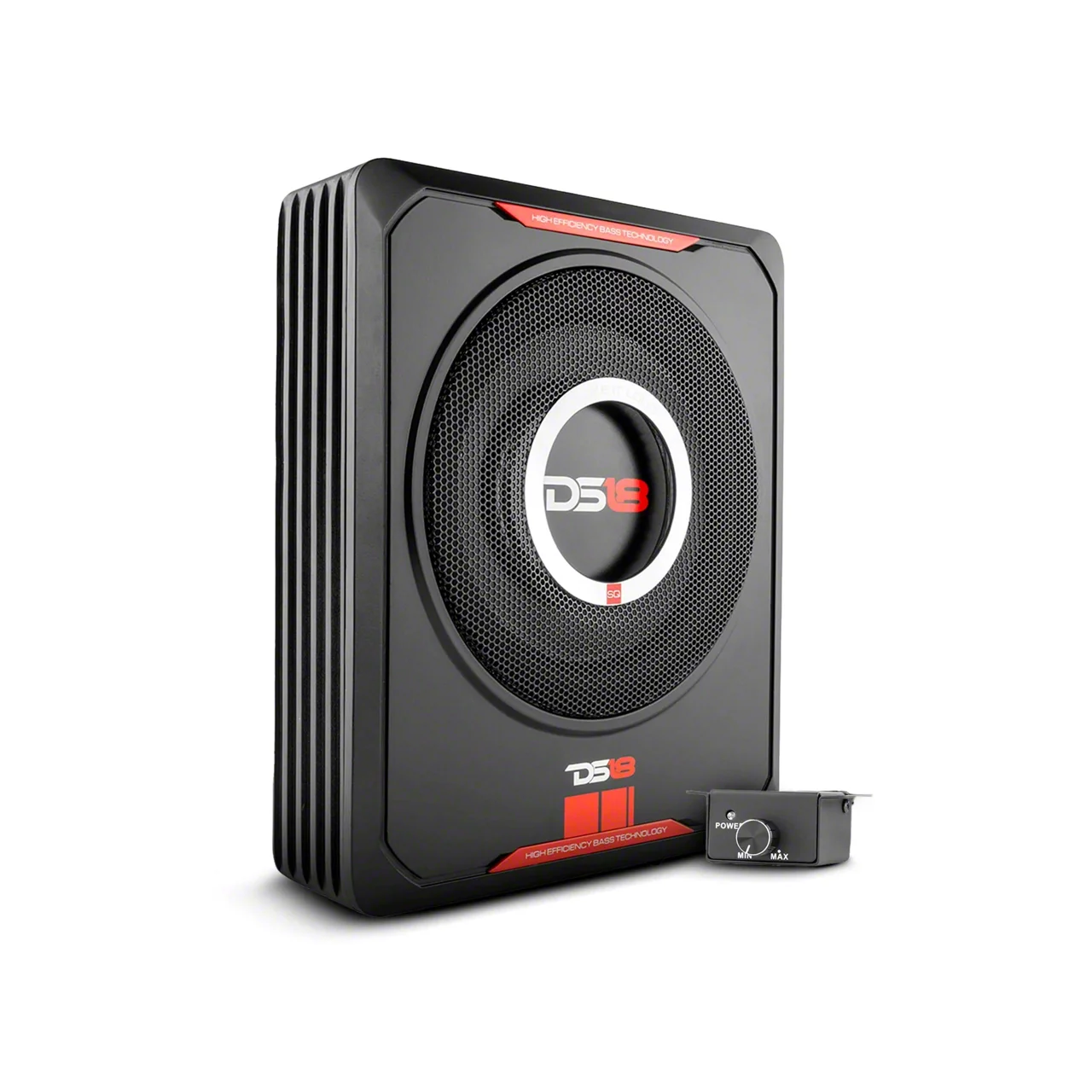

DS18 8-Inch Underseat Amplified Subwoofer; 800 Watts (Universal; Some Adaptation May Be Required)
Item JGC1010
Our Price
$275.95 each
Military, Medical & First Responders
$13.80 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- 8" Subwoofer Enclosure
- Amplified With Subwoofer Control Knob
- RMS Power: 150 Watts, 800 Watts Peak
- Impedance: 2-Ohm
- Under Car Seat Installation
- Sensitivity: 79dB
- Frequency Response: 36-300Hz
- Remote Knob Cable Length: 16 Ft / 5 M
- Remote Knob Adjust Range: 0-30dB
- Auto Turn-On via Signal Sensing
- Cone Material: Polypropylene
- Surround Material: Rubber
- Basket Material: Steel
- Magnet Material: Ferrite
- Body Housing Material: Aluminum
- Amplifier Class: Digital
- Amplifier Type: Subwoofer Monoblock
- Number Of Channels: 1 Ch
- Signal to Noise Ratio: >80dB
- Total Harmonic Distortion (THD): <0.5%
- Low Level Input Range: 0.1-3.5 Volts
- High Level Input: 0.3-10 Volts
- Selectable X-Over: LPF Fixed
- X-Over Filter Range: 50-150Hz
- Bass Boost Range: 0-12dB
- Bass Boost Frequency: 50Hz
- Infrasonic Filter: 30Hz Fixed
- Phase Selector: 0-180
- LED Indicator: Power / Protect
- Power Input Terminal Size: 8 Ga
- Fuse Size: 25A
- Remote Level Control Included
- Thermal Protection
- Over-Load Protection
- DC Output Protection
- Short Circuit Output Protection
- Voltage Input Protection
- Overall Height: 3" / 77 mm
- Overall Width: 9.64" / 245 mm
- Overall Length: 11.42" / 290 mm
- Gross Single Unit Weight: 13 lb
- Single Unit Box Dimensions: 16.75 x 12.5 x 5.75 inches
- Quantity of Units in Master Carton: 2
- Gross Master Carton Weight: 27.5 lb
- Master Carton Dimensions: 17.5 x 12.5 x 13.75 inches
- Fits Universal Applications; Some Adaptation May Be Required
Description
Compact Bass Solution. The DS18 8-Inch Underseat Amplified Subwoofer delivers powerful bass enhancement in a compact under-seat design. It is engineered to enrich your vehicle's audio by providing deep, impactful low-frequency sound without compromising space. This subwoofer is ideal for automotive enthusiasts seeking premium bass performance with ease of use and control.
Construction and Appearance. Built with a polypropylene cone and rubber surround for durability and sound accuracy, this subwoofer features a steel basket and ferrite magnet core. The enclosure's body and housing are made from aluminum, ensuring robust build quality and efficient heat dissipation. Its sleek and professional finish allows for discreet installation under the vehicle seat.
Installation. Designed for installation beneath car seats, the unit may require some adaptation depending on vehicle configuration. Installation simplicity varies, and professional assistance or experienced DIY skills may be beneficial.
Application. Suitable for universal applications; some adaptation may be required for specific vehicle setups or installations. This subwoofer is designed for flexible use across various automotive audio systems.
DS18 SQBASS8
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Amplified Subwoofer
- (1) Bass Remote Control
4.0
Reviews of DS18 Interior Products (11)
Questions & Answers
No questions about this product yet.
Ask the First Question
