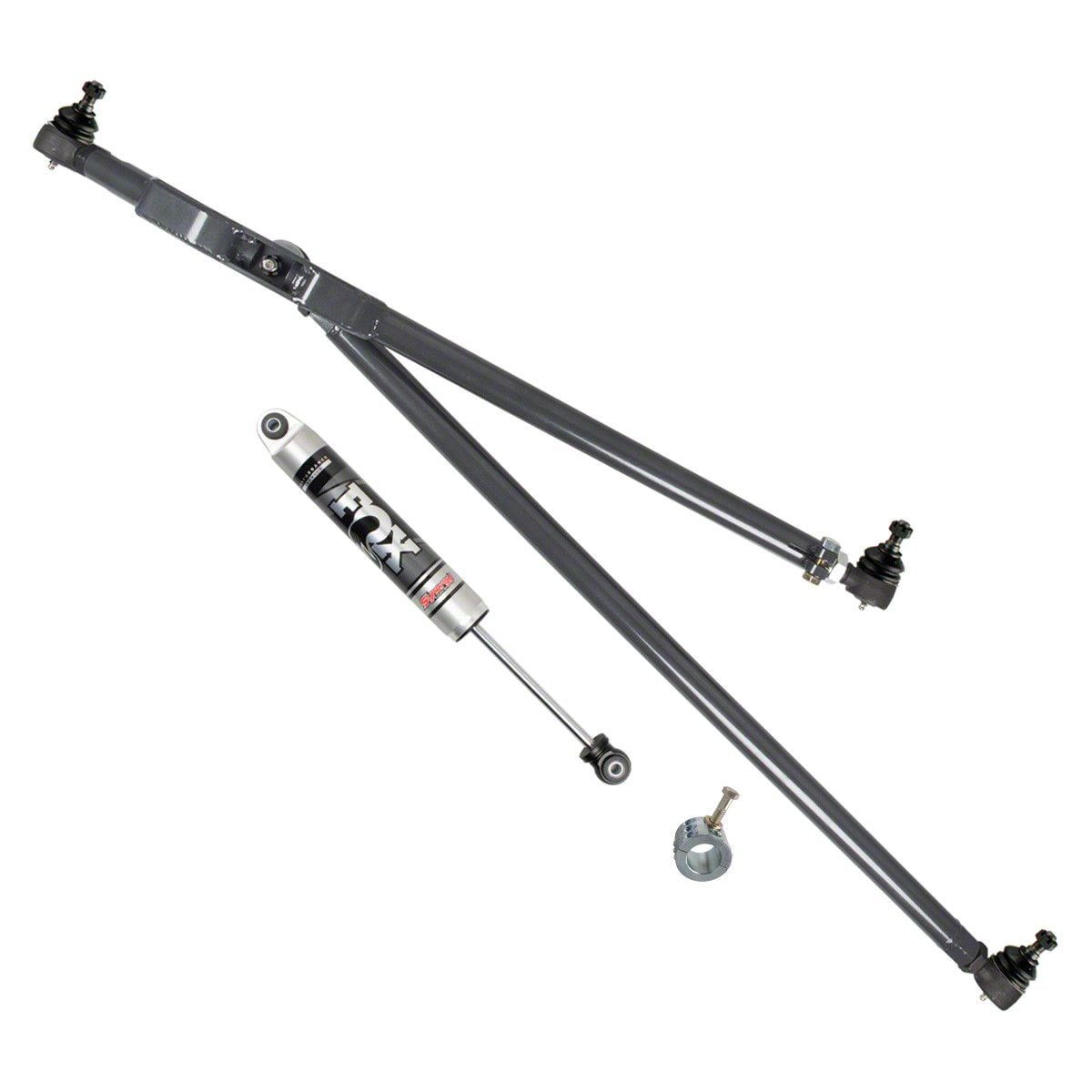

Synergy Manufacturing Heavy Duty Steering Kit with FOX IFP Stabilizer (87-01 Jeep Cherokee XJ)Find parts that fit my vehicle
Item XJ24870
Our Price
$1,200.00
Military, Medical & First Responders
$60.00 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features
- Larger and stronger bolt-on replacement for stock steering
- No reaming or drilling of steering knuckles required
- Modeled geometry after stock Y-style steering to minimize bump steer and prevent death wobble
- Toe change present but not adverse compared to stock steering
- Includes new tie rod, drag link, steering stabilizer clamp, and heavy duty metal-on-metal tie rod ends
- Tie rod made from 1-3/8" 4130 Chromoly steel and heat treated for maximum strength
- Drag link made from 1-3/8" 1018 solid bar to eliminate deflection
- Abrasion-resistant powder coat finish for durability and corrosion resistance
- Drag link features double adjuster assembly for easy length adjustment without removal
- Tie rod features left hand and right hand opposing threads for easy length adjustment without removal
- Requires minimum 2" front bump stop spacers
- Fits vehicles with 2-6" of lift
- Single plane tie rod end included at knuckle end of drag link to prevent steering system misalignment
- Drag link bent to clear factory axle brackets
- Drag link compatible from stock to 6" lifted vehicles
- Uses stock Pitman arm for 2-4" lift vehicles
- Requires drop Pitman arm for 4.5"-6" lift vehicles
- Steering stabilizer clamp made from CNC extruded 6061-T6 aluminum alloy with black anodized finish
- Steering stabilizer clamp designed for factory and aftermarket stabilizers using 1/2" bolt mount
- Recommended to use Synergy tuned Fox internal floating piston steering stabilizer
- Includes drag link, tie rod, steering stabilizer clamp, and Synergy tuned Fox IFP steering stabilizer depending on kit selection
- Fits 1987-2001 Jeep Cherokee XJ
Description
Heavy Duty Steering Upgrade. The Synergy Manufacturing Heavy Duty Steering Kit with FOX IFP Stabilizer is a robust bolt-on solution designed to replace the stock steering components on select Jeep models. It enhances steering strength and durability, reducing common issues such as bump steer and death wobble, thereby improving vehicle control and safety during off-road and lifted vehicle use.
Construction and Appearance. The kit features a 1-3/8" 4130 chromoly steel tie rod that is heat treated for superior strength, and a 1-3/8" 1018 solid bar drag link engineered to eliminate deflection. Both components have an abrasion-resistant powder coat finish for excellent corrosion resistance and durability. The kit also includes a steering stabilizer clamp made from CNC extruded 6061-T6 aluminum alloy with a black anodized finish, combining corrosion resistance with a clean appearance.
Installation. Installation is straightforward, with 100% bolt-on components that require no reaming or drilling of steering knuckles. This ensures a trouble-free upgrade using basic hand tools without modification to existing vehicle structures.
Application. This heavy duty steering kit is specifically designed to fit 1987-2001 Jeep Cherokee XJ models without exceptions or exclusions.
Synergy Manufacturing 8121-11
