Installation Time
(approx) 1 Hour
Difficulty Level:
Simple installation for anyone.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $149+ Details

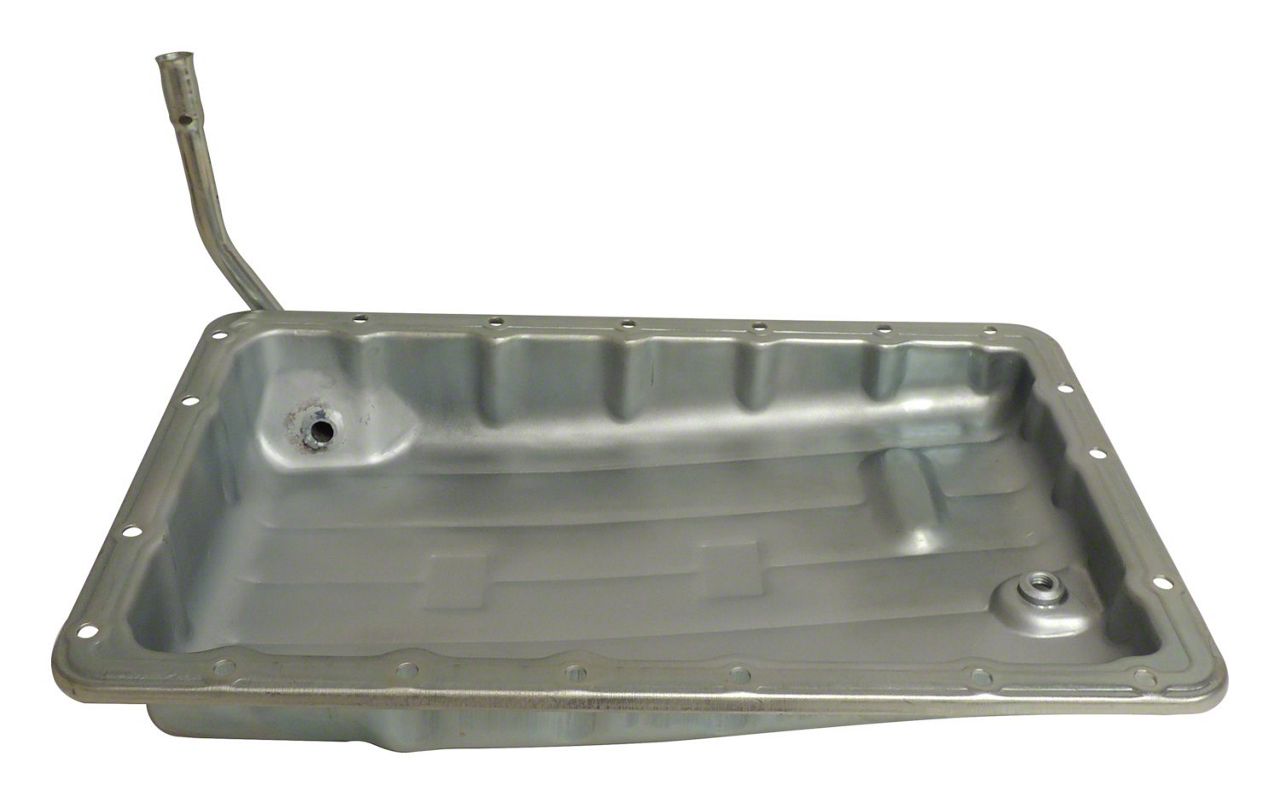

AW4 Transmission Oil Pan (87-01 Jeep Cherokee XJ)Find parts that fit my vehicle
Item XJ24064
Our Price
$119.99 each
Coupon
Military, Medical & First Responders
$6.00 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- Fits Jeep Cherokee XJ From 1987 To 2001 With AW4 Transmission
- Does Not Include Transmission Pan Gasket
- Does Not Include Drain Plug
- Steel Construction With Zinc Finish For Corrosion Resistance
- Use Existing Hardware For Installation
- Weight 5.40 Pounds
- Package Dimensions 18.25 Inches Length By 13.25 Inches Width By 8.5 Inches Height
- Sold Individually
- Fits 87-01 Jeep Cherokee XJ Excludes Other Models And Generations
Description
Transmission Oil Pan. The AW4 Transmission Oil Pan is an essential component that holds the transmission fluid required for the smooth operation of the AW4 automatic transmission system. It ensures proper fluid containment and cooling, while providing access for fluid changes and maintenance. Maintaining this oil pan’s function supports the longevity and reliability of the vehicle’s transmission.
Construction And Appearance. Crafted from durable steel, this oil pan is built to withstand demanding use and harsh driving conditions. It features a corrosion-resistant zinc finish that ensures a clean, professional look. The design is compatible with existing mounting hardware, making replacement straightforward.
Installation. Installation is simple and typically requires moderate mechanical skill. The pan fits directly onto the transmission using existing bolts and hardware, providing a secure, leak-free seal without the need for drilling.
Application. This transmission oil pan is specifically designed to fit Jeep Cherokee XJ models from 1987 through 2001 equipped with the AW4 transmission. Please note that the transmission pan gasket and drain plug are not included and must be purchased separately.
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Transmission Oil Pan
Tech Specs
