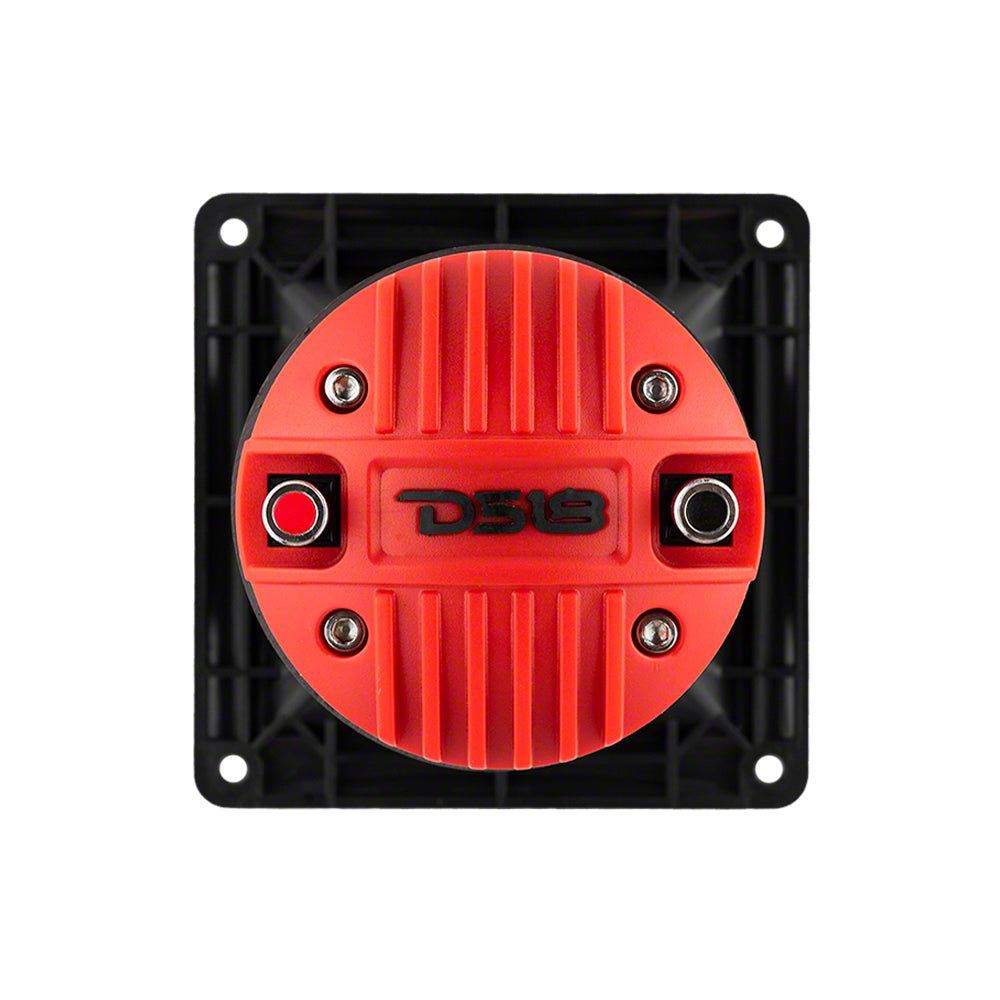

DS18 1-Inch Driver Horn Kit; 120 Watts; Black (Universal; Some Adaptation May Be Required)
Item U60570-XT
Our Price
$33.95
Military, Medical & First Responders
$1.70 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- Compression Driver With Horn
- 1 x PRO-DR1P Compression Driver
- 1 x PRO-H44/BK Horn
- RMS Power: 120 Watts (240 Watts Peak)
- Impedance: 8 Ohm
- Sensitivity (1W/1m) With Horn: 107.3dB
- Ferrite Magnet
- Voice Coil Diameter: 1" (25.4mm)
- Voice Coil Former Material: Kapton
- Winding Material: CCA (Copper-Clad Aluminum)
- Diaphragm Material: Phenolic
- Magnet Weight: 0.38 Oz (11g)
- Body Material: Aluminum + ABS
- Horn Nominal Diameter: 4.5" (115mm)
- Horn Throat Diameter: 1" (25.4mm)
- Sound Coverage Angle: 45° x 45° (Square)
- Horn Body Material: ABS/PC Injection Molded
- Horn Color Finish: Black
- Overall Diameter: 4.52" (115mm)
- Overall Depth: 4.88" (124mm)
- Mounting Depth: 4.5" (116mm)
- Mounting Hole Dimensions: 3.26" x 3.26" (83 x 83mm)
- Bolt Pattern (Horn): 4 x 5.5mm (100.5mm)
- Gross Single Unit Weight: 2 lbs
- Single Unit Box Dimensions: 4.75" x 4.75" x 5.75"
- Quantity of Units in Master Carton: 12
- Gross Master Carton Weight: 25.5 lbs
- Master Carton Dimensions: 15" x 10" x 12"
- Frequency Response: 800Hz - 20kHz
- Recommended High-Pass Crossover: 1kHz
- Fits Universal Applications; Some Adaptation May Be Required
Description
Powerful Audio Solution. The DS18 1-Inch Driver Horn Kit, rated at 120 Watts RMS and finished in black, delivers exceptional sound performance by combining a compression driver with a matching horn. This kit is engineered to enhance your audio system by providing clear, crisp sound reproduction while handling significant power levels, making it ideal for automotive audio enthusiasts seeking to upgrade with high-performance components.
Construction and Appearance. This driver horn kit features durable construction materials including an aluminum and ABS driver body paired with an ABS/PC injection-molded horn finished in black. The phenolic diaphragm ensures sound clarity and precision, supported by a ferrite magnet and a 1-inch Kapton voice coil former with CCA winding, contributing to improved heat resistance and reliable performance.
Installation. Installation is straightforward with a compact mounting depth and a 4-hole bolt pattern on the horn. Basic mounting requires no special modifications, though some adaptation may be necessary depending on the vehicle or enclosure configuration.
Warranty. This product is backed by a 2-year warranty, ensuring reliability and long-term customer satisfaction.
Application. Fits universal applications; some adaptation may be required.
DS18 PRO-DR1PK44
